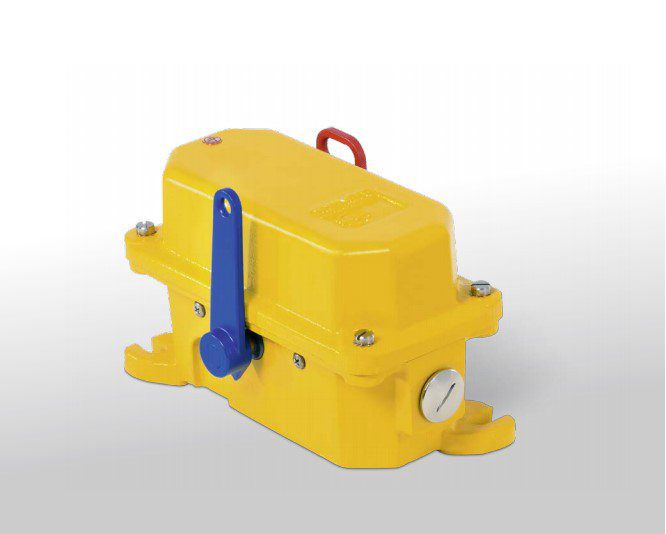

SEG 002 pull rope switch Kiepe Việt Nam

Đặc tính sản phẩm: The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle. After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position “0”. When the blue reset lever is actuated in switch position “1”, the switching con- tacts are reactivated and the conveyor belt is prepared for being turned back on again. Resetting the pull-rope emergency stop switch must not cause the conveyor system to start up.

SEG 001 Công tắc giật dây khẩn cấp Kiepe

Order number

Đại lý Kiepe Việt Nam	NC	NO	​
SEG 001 Kiepe Việt Nam	1	1		91.056 400.001
SEG 002 Công tắc giật dây Kiepe	2	2		91.056 400.002
SEG 004 Công tắc giật dây băng tải Kiepe	1	1	x	91.056 400.004
SEG 005 Further models available on request	2	2	x	91.056 400.005

Thông tin sản phẩm hãng: KIEPE  Thông tin sản phẩm SBS: KIEPE VIỆT NAM Ứng dụng sản phẩm: Kiepe pull-rope emergency stop switches type SEG are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever. The devices are suitable for outdoor use and applications where the ambient temperature varies considerably. With the pull-rope system functionally aligned, the emergency stop signal can be triggered over a distance of up to about 100 m for each switch.

SEG 002 Công tắc giật dây khẩn cấp Kiepe

Công tắc giật dây băng tải Kiepe SEG 002 Kiepe Việt Nam

Mounting Pull-rope emergency stop switches of types SEG are each fastened to the substructure in installation position with 2 M8 screws, centered between the anchor hook 3 of the pull-rope system (see the mounting diagram).

Công tắc dừng khẩn cấp SEG Kiepe

Spare parts and accessories Screw plug M25 x 1.5 %ALS
