2/2-way piston control Angle-Seat Valve 00002158 BÜRKERT

Đại lý BÜRKERT Vietnam,2/2-way piston control Angle-Seat Valve 00002158 BÜRKERT

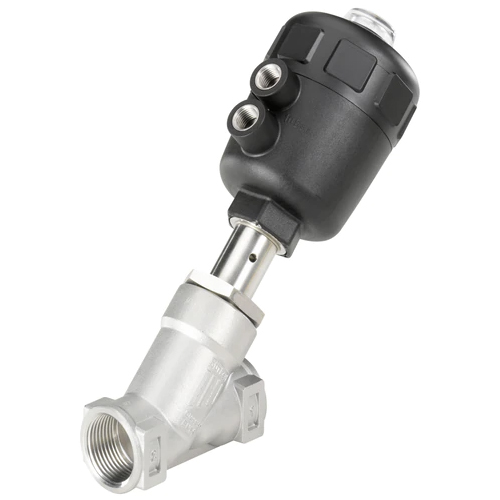

100% Germany Origin	BÜRKERT Vietnam	Code: 00002158 Description: 2/2-way piston control Angle-Seat Valve Type: 2000
100% Germany Origin	BÜRKERT Vietnam	Code: 00001398 Description: 2/2-way-piston-operated angle-seat valve 2000-A-2-65,0-EE-RG-GM90-B-F*MC13 Type 2000 Control function A – closed by spring force Paths/positions 2 – 2 ways / 2 position Orifice size 65,0 – 65mm (2 1/2″) Seal material EE – PTFE Body material RG – gunmetal Port connection GM90 – G2 1/2 threaded port Actuator version B – PA-actuator, MS-threaded bushing at connection of pilot air Actuator size F – Dm 80mm Special Feature: MC13 – flow above seat Pressure min 0 bar Pressure max 14 bar Pilot pres. min 1,60 bar Pilot pres. max 10 bar KV 77 m3/h T medium min -10 °C T medium max 180 °C T ambient min -10 °C T ambient max 60 °C
100% Germany Origin	BÜRKERT Vietnam	Code: 00169391 Description: 2/2-way-piston-operated valve 2012-A2-80,0-EE-VA-SA49-C-H-N8-0000*MC13+MC16+NK51 Type 2012 Control function A – closed by spring force Paths/positions 2 – 2 ways / 2 position Orifice size 80,0 – 80mm (3″) Seal material EE – PTFE Body material VA – stainless steel Port connection SA49 – Weld end 88,9 x 2,3 according to ISO 4200, DIN EN ISO 1127, DIN 11866 series B Actuator version C – PA-actuator, VA-threaded bushing at connection of pilot air Actuator size H – Dm 125mm Interface N8 – nipple thread M100 x 2 (standard DN 80) connection of pilot air 0000 – standard pilot air connection resp. integral construction Special Feature: MC13 – flow above seat MC16 – O-ring between cover and actuator housing NK51 – packed seal enclosed Pressure min 0 bar Pressure max 10 bar Pilot pres. min 2 bar Pilot pres. max 7 bar KV 110 m3/h T medium min -10 °C T medium max 180 °C T ambient min -10 °C T ambient max 60 °C
