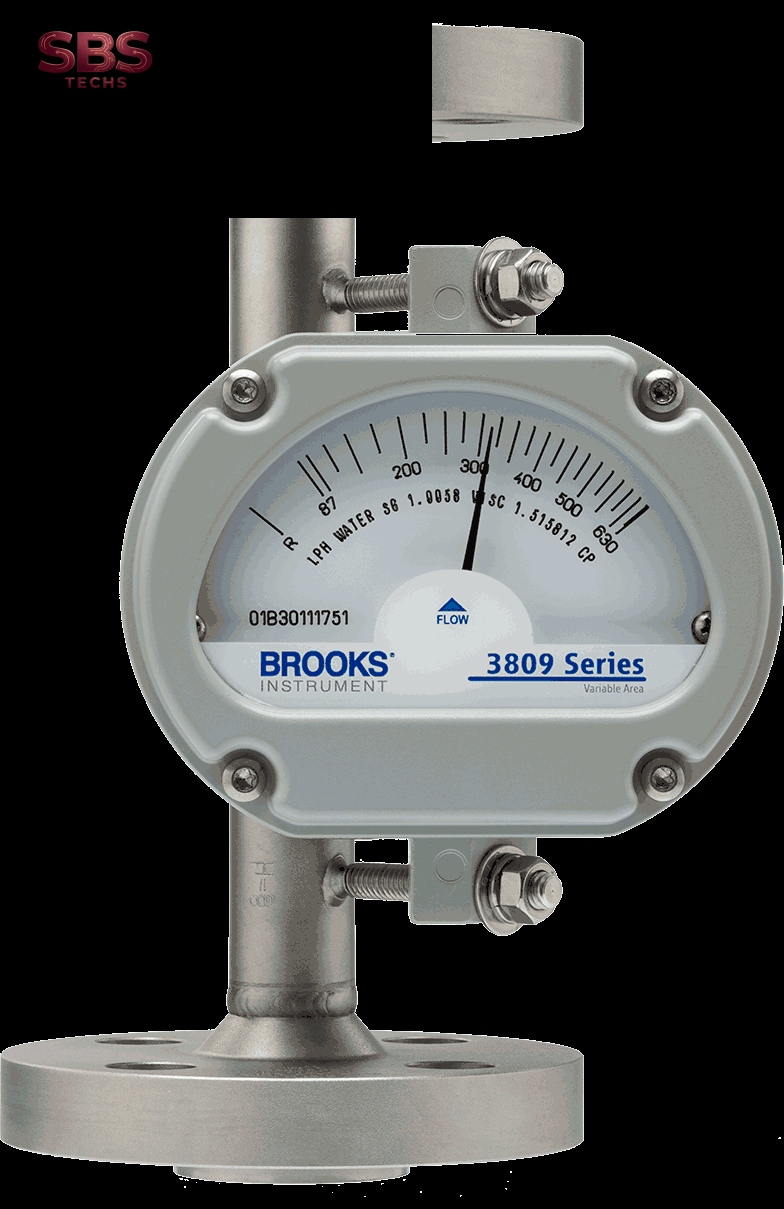

SBS là đại lý chính hãng Brook Instrument Vietnam – 38XXG Metal Tube Variable Area Flow Meter Brook Instrument Vietnam

Model: 3809GZ

38XXG Metal Tube Variable Area Flow Meter; Max Press @ TMin 6000 PSIG (413.7 BAR); Max Press @ TMax 4311 PSIG (297 BAR) Max Temperature 572F (300C); Min Temperature -325F (-198C) Accuracy 2% -Direct Scale-(VISC); Meter Material 316/316L SS w/ Cert 3.1; Connection Size 1-in; Connection Type 2500# RTJ Flange Accessories Inlet Down, Outlet Up ; O-Ring Material None; Meter Lay Length 300 mm; Valve No Valve; Valve Connection No Valve Tube Size 8-A/1.14, Float 8-V-53, Float Material 316L SS Range 3.3-33 LPH; Reference Conditions N/A Scale Inscr1 Direct Read; Scale Type White Face Metal Scale Fluid UNKNOWN LIQUID; Density 1398.6 kg/m3, Viscosity 175 cP Operating Temperature 26C, Operating Pressure 256.5 barg Ambient Temperature -55C to 75C; Indicator Housing GP ALUM/EPOXY; Electrical Connection None Indicator/Alarm/Transmit Indicator Only; Approvals N/A Remote Relay None, Power Supply None Certification (1) N/A; Certification (2) N/A Additional Services: COC, ICC; Stainless Steel Tags TagNumber(s)Please confirm, Please confirm Please note the following: Do note that final model code to be provided later. This is special model. 3809EZ2250 is obsolete and 3809GZ is replacement. We cannot provide same flow range of 2.7-27 LPH. Please check with user whether new flow range of 33-33 LPH is acceptable.
