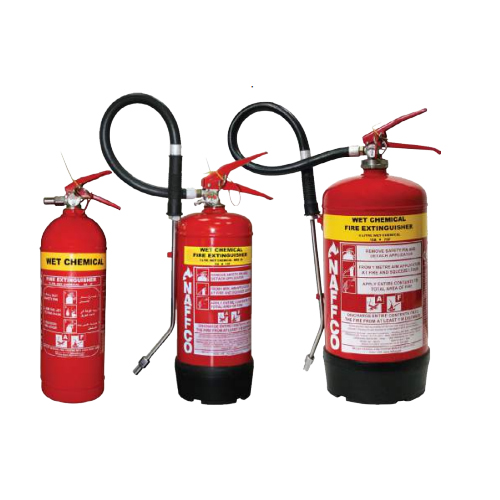

SHIELD Naffco Vietnam,6 LTR. WET CHEMICAL FIRE EXTINGUISHER – CE,KITEMARK & MED NKE6 SHIELD Naffco

WET CHEMICAL FIRE EXTINGUISHERS PRODUCT DESCRIPTION NAFFCO stored pressure type wet chemical extinguishers are used for cooking oil or fat fires where the spray can create a flame almost immediatel. Extinguishment happens while the wet chemical agent reacts with oil to form a soap like film to seal the surface of the oil and cool it down to prevent re-ignition. Suitable for Class A and F fire risks

FEATURES •Water, a liquid agent only recommended for fighting Class F & A Fire. • Kitemark / LPCB certified to BS EN3. • Cylinders compliance to council directive 97/23/EC (PED) and Statutory instrument 1999 No.2001 is certified by BSI (0086). • Certified by BSI under marine equipment directive. •High quality polyester paint. • Internally coated by thermoplastic coating powders blend of polyolefin to prevent corrosion. •Fire mist spray to prevent grease splashing. • Brass nickel chrome plated head valve with simple squeeze operation. • Unique gage testing system. • Unique color code handle and base (optional). • Rechargeable and easy to service. •Passed 35K electrical conductivity test

MODEL NUMBER NKE 2* NKE 3X / NKE 3 NKE 6 Extinguisher Capacity 2 Ltr 3 Ltr 6 Ltr Propellant 95% Nitrogen + 5% Helium Fire Rating 5F 8A25F 13A75F Working Pressure 10 Bar 10 Bar 10 Bar Maximum Operating Pressure 11.5 Bar @ 60°C 11.5 Bar @ 60°C 11.5 Bar @ 60°C Test Pressure 30 Bar 30 Bar 30 Bar Total Weight 4.4 Kg 7.2 Kg 12.5 Kg Range of Discharge 1m 1m 1m Duration of Discharge 40-45 sec 30-35 sec 50-55 sec Hose Length with Nozzle N/A 610mm 610mm Operating Temperature +5°C to +60°C +5°C to +60°C +5°C to +60°C Height x Diameter (mm) 420×110 505×185 420×1324 Cylinder Material CRCA Sheet
