Bộ khuếch đại AE61E, AE120 Nireco Việt Nam

AE61E, AE120 Nireco

Overview AE61E, AE120 Nireco

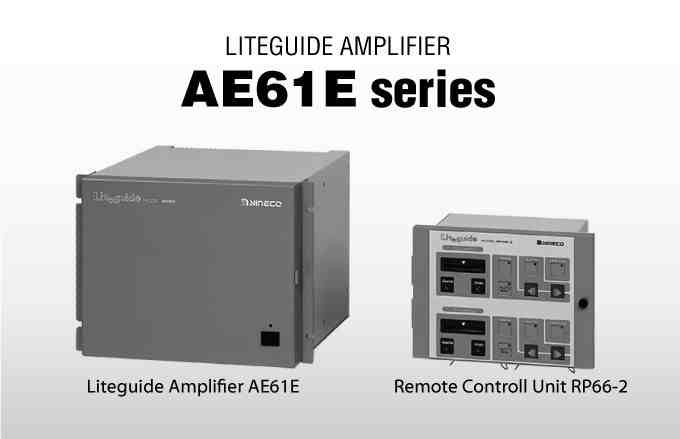

The Liteguide Amplifier AE61E performs high precision Center Position Control (CPC) and Edge Position Control (EPC) in combination with the Autowide Sensor (AWE280), Motor-driven Actuator (K12) and Remote Control Unit. The Remote Control Units are provided for single circuit and twin circuit types.

Feature AE61E, AE120 Nireco

Switching between CPC (center position control) and EPC (edge position control) is possible.
Auto-balance function is provided.

Example of instrumentation

Specifications

Power supply		100 to 240V AC (automatically switched)
Power consumption		100VA
Ambient temperature		0 to +50℃
Mass		6.1kg
Installation		Wall-mounted
Input	Sensor	AWE280A
	Centering sensor	SI12-NE4
	Remote control unit	1Single circuit : RP66-1 Twin circuits : RP66-2 Function : Auto / Man / Centering. Auto balance, Manual operation
	Lock function	Contact input(+15V, 5mA)
	Centering function	Contact input(+15V, 5mA)
Output	Motor	K12 : ± 24V DC, 1A(maximum)
	Alarm contact	Guide roller end and sensor blur : 250V AC 0.1A, 30V, 0.1A
	Power supply for Sensor	DC15V 1.4A
