100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU3275
ASi-3 PROFIBUS Gateway with integrated Safety Monitor, 2 ASi masters ASi-3 PROFIBUS Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat.4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20 |

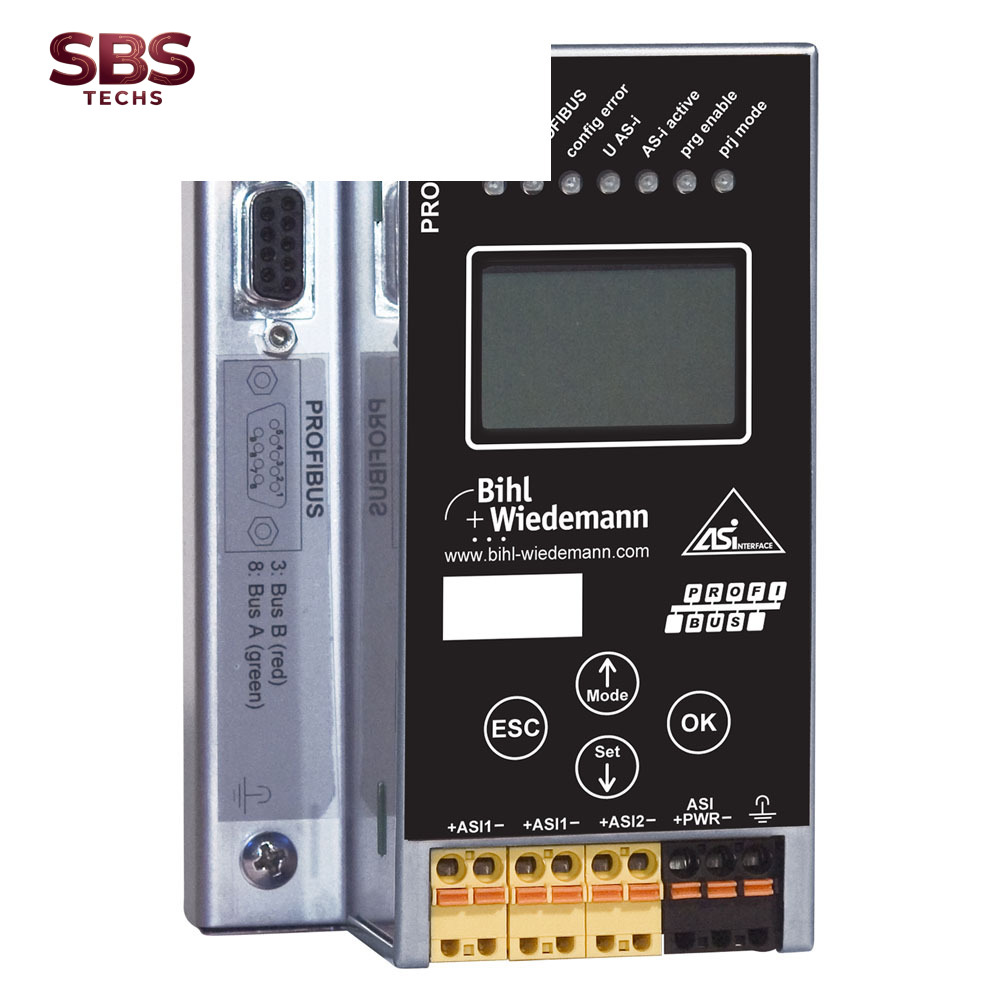

100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU2234
ASi-3 PROFIBUS Gateway in Stainless Steel, 2 masters
ASi-3 PROFIBUS Gateway in Stainless Steel, 2 ASi masters, 1 power supply for 2 ASi networks, duplicate address recognition, ASi fault detector |
100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU3274
ASi Analog Output Module, IP20, 2AO (0…20mA/0…10V)
ASi Analog Output Module in IP20, 22,5 mm x 92 mm, with 4 x COMBICON connections, 2 analog outputs (0…20 mA/0…10 V), output voltage/actuator supply selectable, out of ASi or out of AUX, default out of ASi, periphery connection via clamps, ASi connection via clamps, 1 single slave |
100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU2238
ASi-3 PROFINET Gateway in Stainless Steel, 2 masters
ASi-3 PROFINET Gateway in Stainless Steel, 2 ASi masters, 1 power supply for 2 ASi networks, diagnostic and configuration via PROFINET or RS232 diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional |
100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU2595
ASi Speed Monitor Modular for 2 encoders, HTL, initiators (24V)
ASi Speed Monitor Modular for 2 encoders, HTL or sensors/initiators (24V), for safe monitoring of speed of up to 2 indepentend axes, encoder/sensor connection via 2x Mini I/O, diagnostic and configuration via ASi connection, ASi connection via
clamps, ASi addresses depending on configuration, IP20 |
100% Germany / Turkey Origin | Bihl+wiedemann | Model: BWU2427
ASi Speed Monitor Modular for 2 encoders, sin/cos
ASi Speed Monitor Modular for 2 encoders, sine/cosine, for safe monitoring of speed of up to 2 indepentend axes, encoder/sensor connection via 2 x Mini I/O, diagnostic and configuration via ASi connection, ASi connection via clamps, ASi addresses depending on configuration, IP20 |
