Origin | Sew | KA67BDRN100LM4BE5/XH1A

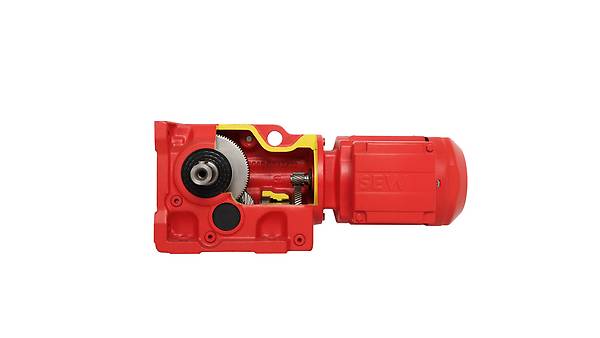

Bevel-helical gear units K + AC motors DRN.. (IE3)
Replacement for KA67B DRS90L4BE5/XH1A (aus Seriennummer
40.1775911502.0003.12)
– new generation. You have to check all technical specifications and dimensions!
Product data
Rated motor speed 50/60Hz [1/min]: 1456 / 1762
Output speed 50/60Hz [1/min]: 64 / 78
Overall gear ratio: 22,66
Output torque 50/60Hz [Nm]: 325 / 270
Service factor SEW-FB 50/60Hz: 2,4 / 2,9
Mounting position: M1A
Base / top coat: 7031 Blue gray (51370310)
Position of connector/terminal box [°]: 0
Cable entry/connector position: X
Hollow shaft [mm]: 40
Permitted output overhung load with n=1400 [N]: 6420
Lubricant quantity 1st gear unit [Liter]: 1,1
Motor power [kW]: 2,2
Duration factor: S1-100%
Efficiency class: IE3
Efficiency (50/75/100% Pn) [%]: 86,37 / 87,27 / 86,7
CE mark: Yes
Motor voltage 50Hz [V]: 220-230D/380-400Y
Rated current 50Hz [A]: 8,4 / 4,85
Motor voltage 60Hz [V]: 254-266D/440-460Y
Rated current 60Hz [A]: 7,4 / 4,3
Wiring diagram: R13
Frequency [Hz]: 50 / 60
Cos Phi 50/60Hz: 0,76 / 0,73
Thermal class: 155(F)
Motor protection type: IP65
Design requirement: Europe (CE)
Motor mass moment of inertia [10⁻⁴ kgm²]: 97,00
Braking torque [Nm]: 40
Brake voltage [V]: 230
Brake control: BGE1.5
Additional feature
Multi-range voltage 50/60Hz
Thermal class 155(F)
Brake BE5 single brake (standard brake) (230 V, 40 Nm)
Lubricant: CLP HC-460-NSF-H1 (-15 / +40 °C): 1,1 Liter
Degree of protection IP 65
Brake control BGE – with electronic switching
Encoder mounting device XH1A- Encoder mounting device |
