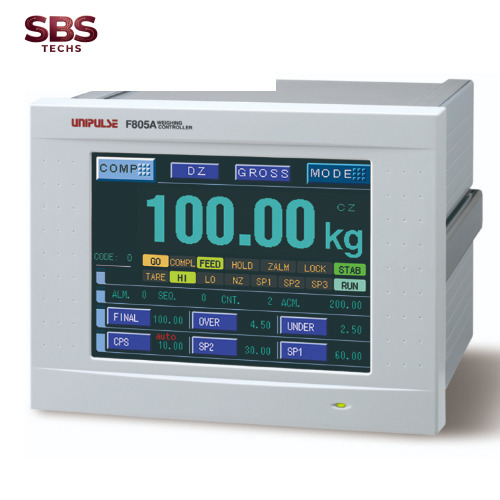

Unipulse Vietnam,Bộ hiển thị F805AT Unipulse

F805AT

Graphic display/touch panel type all-in-one type weighing indicator

Product outline

F805AT adopts a color LCD touch panel which enables simple and comfortable operation by greatly enhancing the visibility of weight display, various setting values display and status display. It provides high-speed A/D conversion and digital processing capability at an operating speed of 1000 times/sec There are substantial interfaces that allow direct connection to major PLCs including OMRON DeviceNet and MITSUBISHI CC-Link. F805AT, which was developed specifically for weighing systems, is a full-fledged device of an all-in-one type that deserves to be called the top-of-the-line Weighing indicator.

Specifications

Analog section｜Setting section｜I/O section｜Display section｜General performance｜Option｜Attachments

Analog section
Excitation voltage	10V or 5V DC±5% (digital adjustment), Output current; within 120mA, remote sense type (Up to 4 loadcells at 350Ω are parallel-connectable.)
Zero adjustment range	0 to approx. 2mV/V (digital adjustment)
Gain adjustment range	0.3 to 2.0mV/V (digital adjustment)
Min. input sensitivity	0.3μV/count (at valid 1/4 scale division), 0.075μV/count (at invalid 1/4 scale division)
Accuracy	Non-linearity: within 0.01%/FS (Typ: 0.005%/FS at room temperature) Zero drift: within 0.1μV/°C RTI (Typ: 0.08μV/°C) Gain drift: within 15 ppm/°C (Typ: 5 ppm/°C) Noise: within 0.1μVp-p RTI (0.1 to 10 Hz)
Analog filter	Bessel low-pass filter (-12dB/oct.) Selectable from 2, 4, 6, 8 Hz
A/D converter	Speed: 1000 times/sec (switchable to 200 times/sec.) Resolution: 16 bit (binary)
Min. display resolution	1/10000 (at valid 1/4 scale division), 1/40000 (at invalid 1/4 scale division)
Secondary calibration	Equivalent input calibration method that allows calibration by simply key-inputting the rated value of a sensor without applying an actual load Min. calibration resolution at secondary calibration (1/1000 at room temperature)

Setting section
Setting method	– Setting by touch panel operation – Setting from host computer via RS-232C is also possible
Setting value storage	– Default: NOV RAM (nonvolatile RAM) – Other setting values: C-MOS RAM with backup of a lithium battery (Depends on usage conditions and storing environment, but memory can be kept for approx. 7 years or more.)
Setting value protection	Setting operation can be locked to prevent unauthorized modifications of default values and calibration by malfunction (LOCK)

I/O section
External signal output	– Logic: Transistor’s open collector output (Emitter = COM terminal); Output is LO when transistor is ON. – Near zero, SP1, SP2, SP3, Under, go, over, comp, discharge, Low limit, high limit, stable, weight alarm, error, final error, run or total limit External signal input
External signal input	– Input is ON when shorted to COM terminal by contact (relay switch, etc.) or non contact (transistor, open collector, etc.). – Gross/Net weight change, Digital zero, Tare off, Tare reset, Hold or judge, Feed/discharge change, Accumulation command, Accumulation clear, Start, Stop, Discharge command, Code No. designation, Forced-discharge command, Discharge gate open, Discharge gate close, Code No. designation selection, Graph drawing
Weighing code selection input	BCD 2 digits (00 to 99), 100 codes
Interface	– SIF: 2-wire type serial interface (standard): Interface to link with Unipulse printer or external display – SI2: 2-wire type bi-directional serial interface (standard): Interface to link with peripherals such as a printer or display – 232: RS-232C communication interface (standard): Write (change)/read weight data, various statuses and setting values via commands from host computer – BCO: BCD parallel data output interface (Optional): Parallel interface to transmit weight data to various peripherals – BCI: BCD parallel data input interface (Optional): Parallel interface to receive various setting values from external unit – 485: RS-485 communication interface (Optional): Allows longer-distance communication than RS-232C. ID numbers are set, and multiple units of F805AT are parallel-connectable – DAC: D/A converter interface (Optional): Interface to convert weight data to current signal and output it – CCL: CC-Link interface (Optional): Interface to link F805AT with network such as MITSUBISHI general-purpose sequencer – ODN: DeviceNet interface (Optional): Interface to link F805AT with DeviceNet such as OMRON CompoBus/D

Display section
Display	TFT color LCD (Display area 116.8 (W) x 88.0 (H) [mm], 320 x 240 dot
Weight value display	5 digits, Minus sign on most significant digit
Unit	Selectable from t, kg, g, N, lb, none
Decimal point	Selectable 0, 0.0, 0.00, 0.000
Display update rate	Selectable from 3, 6, 13, 25 times/sec (A/D conversion rate is fixed.)
Scale capacity	5-digit numerical values (up to 99999)
Over display	LOAD: A/D converter input over, OFL1: Net weight > Net over set value (5-digit setting), OFL2: Gross weight > Capacity +9 scale divisions, OFL3: Gross weight > Gross over set value (5-digit setting)
Center zero	True zero point (0±1/4 scale) or the center of each value is displayed
Status display	LOCK, HOLD, ZALM, STAB, TARE, RUN, HI, LO, NZ, SP1, SP2, SP3, OVER, GO, UNDER, COMPL, DCHG
Set value display	CODE, FINAL, OVER, UNDER, BEFORE FINAL, FF
Accumulation display	Accumulation times (4 digits), Accumulation value (9 digits)
No. display	Alarm No. (2 digits): Error No. in sequence control Sequence No. (3 digits): Process No. in sequence control

General performance
Excitation voltage	100 to 240V AC (+10% -15%) (Free power supply 50/60 Hz) 12 to 24V DC (±15%) (Please specify when ordering)
Power consumption	20W
Inrush current (Type)	15A, 5msec: 100V AC average load condition (cold start at room temperature) 30A, 5msec: 200V AC average load condition (cold start at room temperature) 10A, 0.5msec: 12V DC average load condition (cold start at room temperature) 35A, 0.4msec: 24V DC average load condition (cold start at room temperature)
Operating conditions	Temperature: Operating temperature range -10 to +40°C; Storage temperature range -20 to +60°C Humidity: within 85% RH (no condensing)
Dimensions	174(W)×135(H)×159(D)mm (protruding part not included)
Panel cutout dimensions	165W(+2-0)×130H(+2-0)mm
Panel thickness	1.6 to 3.2mm
Weight	Approx. 2.3kg
CE marking certification	EMC directives EN61326-1 Safety standard EN61010-1, EN62311 (Please specify requirement for CE marking certified product when making your order) (DC power supply is not certificationed to CE Marking.)

Option
BCO	BCD parallel data output interface
BCI	BCD parallel data input interface
DAC	D/A converter interface (2ch interface installed)
485	RS-485 communication interface*
ODN	DeviceNet interface*
CCL	CC-Link interface*
Number of option installations	Up to 4 options and 1 serial communication interface are available. (With*, only 1 option is available.)

Attachments
AC input cord (2m), (only for AC specifications)	1
AC input cord replacement plug (only for AC specifications and CE compatibility)	1
Mini-driver for terminal block connection	1
Loadcell connector	1
External I/O signal connector	1
Operation Manual	1
Ferrite core (only for CE compatibility)	2
BCD output connector (with BCD output option)	1
BCD input connector (with BCD input option)	1
D/A converter connector (with D/A converter)	1
CC-link connector (with CC-Link option)	1
DeviceNet connector (with DeviceNet option)	1

Option

Model	Interface	Slots installed
BCO	BCD parallel data output interface (General-purpose slot option…3 slots installed (① to ③below))	1 to 3
BCI	BCD parallel data input interface (General-purpose slot option…3 slots installed (① to ③below)	1 to 3
DAC	D/A converter interface (General-purpose slot option…3 slots installed (① to ③below))	1 to 3
485	RS-485 communication interface (Advanced communication slot option…1 slot installed (④ below))	4
ODN	DeviceNet interface (Advanced communication slot option…1 slot installed (④ below))	4
CCL	CC-Link interface (Advanced communication slot option…1 slot installed (④ below))	4

Optional accessories

Model	Description
CAAC3P-P2	AC input cord 2m
CAAC3P-CEE7/7-P1.5	AC input cord (withstand pressure: 250V) 1.5m
CA4131	(6-core) cable with JR connector at one end (cable end is separated) 3m
CA4230	JR-PRC conversion relay (6-core) cable 0.3m
CA4311	JR-PRC conversion relay (6-core) 4-wire type/ 6-wire type (for 520A) 1m
CN3P-2P	3P-2P conversion plug for AC input cord
CN20	D/A converter connector
CN21	BCD I/O connector
CN22	57 series 50p connector for external I/O
CN34	D-Sub 9p connector for RS-232C
CN71	CC-Link connector
CND01	DeviceNet connector
TSU02	Lightning surge unit
TSU03	Lightning surge unit DS specification
GMP165×130	Rubber packing

100% Japan Origin

Unipulse Vietnam

Replaced code: F805AT
Unipulse indicator
Note: F805A not longer available

`Liên hệ & Báo giá chi tiết:`

`Sale SBS Vietnam:`

sales@sbstechs.vn

Trực tiếp FaceBook

Trực tiếp Zalo: 0936.862.034 – Mr VIỆT

=====================================================

Click xem thêm ứng dụng sản phẩm khác

Đại lý phân phối chính hãng tại Vietnam

Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7
