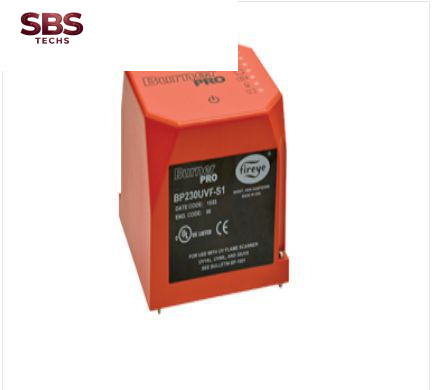

BurnerPRO Flame Safeguard BP110UVF, BP230UVF Fireye Việt Nam

Đặc điểm BP110UVF, BP230UVF Fireye

BurnerPRO Flame Safeguard (BP110UVF/BP230UVF) Control, with integrated flame safeguard and boiler control operation provides simplified operation for single point applications.

The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours. Seven SMART LEDs provide current operating status and lockout information in the event of a safety shutdown

Item	Part Number	Description
1	BP230UV-S1	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier
2	BP230UVF-S1	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
3	BP230UV-S2	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier
4	BP230UVF-S2	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
5	BP230UV-S3	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier
6	BP230UVF-S3	BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
7	BP110UV-S1	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier
8	BP110UVF-S1	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
9	BP110UV-S2	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier
10	BP110UVF-S2	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
11	BP110UV-S3	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier
12	BP110UVF-S3	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)
13	BP110UV-S6	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 6 timings, with UV non-self check amplifier
14	BP110UVF-S6	BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 6 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

SCANNER SELECTION

FIREYE P/N	DESCRIPTION	BULLETIN
UV90L-1	UV scanner, Front and side (90o) lateral view, terminal block hook-up	SC-108
UV1AL-3, -6	UV scanner, 1/2” NPT connector, front view, 3ft/6ft cable, shielded leads	SC-108
4-742-1	Replacement UV tube for UV90L-1
UV5-1	UV Scanner, front and side viewing, 6.5ft leads	SC-108

Tags
BP110UVF Fireye
BP230UVF Fireye
Nhà phân phối Fireyes tại Việt Nam
đại lý Fireye tại Việt Nam
hãng Fireye tại Việt Nam

Nhà cung cấp
Xuất xứ

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “BurnerPRO Flame Safeguard BP110UVF, BP230UVF Fireye Việt Nam” Hủy

Bạn phải đăng nhập để gửi đánh giá.

BurnerPRO Flame Safeguard BP110UVF, BP230UVF Fireye Việt Nam

BurnerPRO Flame Safeguard BP110UVF, BP230UVF Fireye Việt Nam

BurnerPRO Flame Safeguard BP110UVF, BP230UVF Fireye Việt Nam

Đặc điểm BP110UVF, BP230UVF Fireye

BurnerPRO Flame Safeguard (BP110UVF/BP230UVF) Control, with integrated flame safeguard and boiler control operation provides simplified operation for single point applications.

The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours. Seven SMART LEDs provide current operating status and lockout information in the event of a safety shutdown

Item

Part Number

Description

1

BP230UV-S1

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier

2

BP230UVF-S1

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

3

BP230UV-S2

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier

4

BP230UVF-S2

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

5

BP230UV-S3

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier

6

BP230UVF-S3

BurnerPRO Single Burner Control, 230VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

7

BP110UV-S1

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier

8

BP110UVF-S1

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 1 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

9

BP110UV-S2

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier

10

BP110UVF-S2

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 2 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

11

BP110UV-S3

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier

12

BP110UVF-S3

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 3 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

13

BP110UV-S6

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 6 timings, with UV non-self check amplifier

14

BP110UVF-S6

BurnerPRO Single Burner Control, 110VAC 50/60Hz, Series 6 timings, with UV non-self check amplifier, IP44 (Recommended for new installations – Contact Factory)

SCANNER SELECTION

FIREYE P/N

DESCRIPTION

BULLETIN

UV90L-1

UV scanner, Front and side (90o) lateral view, terminal block hook-up

SC-108

UV1AL-3, -6

UV scanner, 1/2” NPT connector, front view, 3ft/6ft cable, shielded leads

SC-108

4-742-1

Replacement UV tube for UV90L-1

UV5-1

UV Scanner, front and side viewing, 6.5ft leads

SC-108
