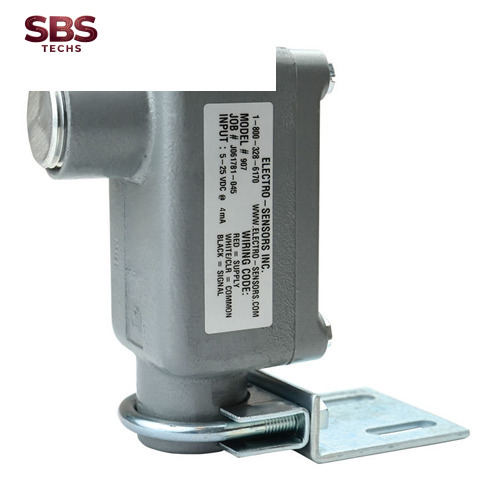

Đại lý phân phối hãng ELECTRO-SENSORS tại Vietnam,Cảm biến tốc độ 907 XP HALL EFFECT Vietnam
Cảm biến tốc độ – Electro sensor – shaft speed sensor
Dòng cảm biến tốc độ – shaft speed sensor của electro nổi tiếng với các tính năng :
Khe hở lớn, không cần tiếp xúc vật liệu
Tín hiệu xung (NPN, PNP) hoặc 4-20 mA
Không cần hiệu chuẩn
Ngõ ra đơn hoặc kép
Chứng chỉ chống cháy nổ (XP), chứng chỉ an toàn (IS) và chống bụi – cháy (DIP) (tùy chọn)
Chắn chắn & tin cậy
Dễ dàng sử dụng & lắp đặt
Các dòng sản phẩm của cảm biến tốc độ của electro sensor
ST420/ ST420-LT/ ST420-DI (Best seller)
906 XP / 907 XP hall effect (Best seller)
1101 Hall effect sensor
931 XP Hall effect sensor
1102 / 932 / 933 XP
1201 / 1202
Series 18
HE950
916A / 917A (replacement only)
BẢNG CODE :
1101 / 931 Cảm biến tốc độ- Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
SENSOR 931 W/10′ CABLE | 775-093100 |
SENSOR 931 W/TEFLON CABLE | 775-093101 |
SENSOR 931 W/50′ CABLE | 775-093105 |
SENSOR 931 W/100′ CABLE | 775-093110 |
1101 18-36V HI TEMP 10′ PVC W/LBKT | 775-110001 |
1101 SS 3.75″ HE 10′ PVC W/O LBKT | 775-110003 |
1101 SS 3.75″ HE 50′ PVC W/O LBKT | 775-110004 |
1101 SS 3.75″ HE 100′ PVC W/O LBKT | 775-110005 |
1101 SS 2.0″ HE 10′ PVC W/O LBKT | 775-110100 |
1101 STD SS 2.0″ HE 10′ PVC W/LBKT | 775-110101 |
1101 SS 2.0″ HE 50′ PVC W/O LBKT | 775-110105 |
1101 STD SS 2.0″ HE 50′ PVC W/LBKT | 775-110106 |
1101 SS 2.0″ HE 100′ PVC W/O LBKT | 775-110110 |
1101 STD SS 2.0″ HE 100′ PVC W/LBKT | 775-110111 |
1101 SS 2.0″ HE 10′ TEFLON W/O LBKT | 775-110114 |
1101 SS 2.0″ HE 10′ TEFLON W/LBKT | 775-110121 |
1102 / 932 / 933 XP Cảm biến tốc độ – Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
932 STD AL BODY MR 10′ PVC W/LBKT | 775-093200 |
932 AL BODY MR 50′ PVC W/LBKT | 775-093201 |
932 AL BODY MR 100′ PVC W/LBKT | 775-093202 |
932 SS BODY MR 10′ PVC W/LBKT | 775-093203 |
932 SS BODY MR 50′ PVC W/LBKT | 775-093204 |
932 SS BODY MR 100′ PVC W/LBKT | 775-093205 |
OBS SENSOR 932-SS W/SEALED END 10FT | 775-093207 |
SENSOR 933 W/10′ CABLE | 775-093300 |
SENSOR 933 W/50′ CABLE | 775-093301 |
SENSOR 933 W/100′ CABLE | 775-093302 |
SENSOR 933 LARGE XP SENSOR | 775-093303 |
1102 SS 3.75″ MR 10′ PVC W/O LBKT | 775-110006 |
1102 SS 3.75″ MR 50′ PVC W/O LBKT | 775-110007 |
1102 SS 3.75″ MR 100′ PVC W/O LBKT | 775-110008 |
1102 SS 2.0″ MR 10′ PVC W/O LBKT | 775-110200 |
1102 SS 2.0″ MR 10′ PVC W/LBKT | 775-110201 |
1102 SS 2.0″ MR 50′ PVC W/O LBKT | 775-110205 |
1102 SS 2.0″ MR 50′ PVC W/LBKT | 775-110206 |
1102 SS 2.0″ MR 100′ PVC W/O LBKT | 775-110210 |
1102 SS 2.0″ MR 100′ PVC W/LBKT | 775-110211 |
1201 / 1202 Cảm biến tốc độ – Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
1201 SS 3.75″ BIDI 10′ PVC W/RK BLOCK | 775-120101 |
1202 SS 5.5″ BIDO 10′ PVC W/RK BLOCK | 775-120201 |
600 Series Cảm biến tốc độ – Shaft Speed Sensors | |
Model | Part Number |
SENSOR 608 PROXIMITY 8MM | 775-007208 |
SENSOR 612 PROXIMITY 12MM | 775-007206 |
SENSOR PROXIMITY 14mm | 775-007209 |
SENSOR 618 PROXIMITY 18MM | 775-007205 |
SENSOR 630 PROXIMITY 30MM | 775-007204 |
SENSOR 608-1 PROXIMITY 8MM | 775-007201 |
SENSOR 612-1 PROXIMITY 12MM | 775-007202 |
SENSOR 618-1 PROXIMITY 18MM | 775-007207 |
SENSOR 630-1 PROXIMITY 30MM | 775-007203 |
906 / 907 XP Cảm biến tốc độ – Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
906 STD AL BODY HE 10′ PVC W/LBKT | 775-000500 |
906 AL BODY HE 50′ PVC W/LBKT | 775-000511 |
906 AL BODY HE 100′ PVC W/LBKT | 775-000505 |
906 BIDI AL BODY HE 10′ PVC W/LBKT | 775-000504 |
906 BIDI AL BODY HE 50′ PVCW/LBKT | 775-000509 |
906 BIDI AL BODY HE 10O’ PVC W/LBKT | 775-000510 |
906 SS BODY HE 10′ PVC W/LBKT | 775-000400 |
906 SS BODY HE 50′ PVC W/LBKT | 775-000405 |
906 SS BODY HE 100′ PVC W/LBKT | 775-000410 |
906 BIDI SS BODY HE 10′ PVC W/LBKT | 775-000404 |
906 BIDI SS BODY HE 50′ PVC W/LBKT | 775-000409 |
906 BIDI SS BODY HE 100′ PVC W/LBKT | 775-000414 |
SENSOR 907 W/10′ CABLE | 775-000600 |
SENSOR 907BV XP BI-DI 10′ | 775-006100 |
907 BIDI VERT ALIGN XLB3 HE 50′ PVC | 775-006105 |
SENSOR 907BV XP BI-DI 100′ | 775-006110 |
SENSOR 907BH XP BI-DI 10′ | 775-006101 |
916A / 917A XP Cảm biến tốc độ – Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
SENSOR 916A 10FT W/BRKT | 775-000801 |
SENSOR 916A 50FT W/BRKT | 775-000802 |
SENSOR 916A 100FT W/BRKT | 775-000803 |
SENSOR 916A 10FT TEFLON W/BRKT | 775-000804 |
SENSOR 916A 50FT TEFLON W/BRKT | 775-000805 |
SENSOR 916A 100FT TEFLON W/BRKT | 775-000806 |
SENSOR 916A 10FT W/STANDARD BRACKET | 775-000807 |
SENSOR 916A 50FT W/STANDARD BRACKET | 775-000808 |
SENSOR 916A 100FT W/STANDARD BRACKET | 775-000809 |
SENSOR 916A SS 10FT W/SS BRACKET | 775-000810 |
SENSOR 917A 10FT W/BRKT | 775-000811 |
SENSOR 917A 50FT W/BRKT | 775-000812 |
SENSOR 917A 100FT W/BRKT | 775-000813 |
HE950 Cảm biến tốc- Shaft Speed Sensors | |
Model | Part Number |
SENSOR HE950 10′ W/BRACKET | 775-001400 |
SENSOR HE950 50′ W/BRACKET | 775-001401 |
SENSOR HE950 100′ W/BRACKET | 775-001402 |
SENSOR HE950 10′ TEFLON W/BRACKET | 775-001403 |
Series 18 Cảm biến tốc- Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
Series 18 Shaft Speed Sensors | 18EHQNO-000 |
Series 18 Shaft Speed Sensors | 18EHQNT-000 |
Series 18 Shaft Speed Sensors | 18EHQPO-000 |
Series 18 Shaft Speed Sensors | 18EHQPT-000 |
Series 18 Shaft Speed Sensors | 18EHSNO-000 |
Series 18 Shaft Speed Sensors | 18EHSNT-000 |
Series 18 Shaft Speed Sensors | 18EHSPO-000 |
Series 18 Shaft Speed Sensors | 18EHSPT-000 |
Series 18 Shaft Speed Sensors | 18EMSNO-000 |
Series 18 Shaft Speed Sensors | 18EMSNT-000 |
Series 18 Shaft Speed Sensors | 18EMSPO-000 |
Series 18 Shaft Speed Sensors | 18EMSPT-000 |
SpeedTalker DeviceNet Cảm biến tốc – Shaft Speed Sensors | |
Typical system also requires Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
SPEEDTALKER-DN (XP) | 800-001100 |
SPEEDTALKER-DN (BH) | 800-001200 |
SPEEDTALKER-DN (UI) | 800-001400 |
ST420 Cảm biến tốc Shaft Speed Sensors | |
Typical system also requires a Pulser Disc (not included) or WRAP (not included) | |
Model | Part Number |
ST420-L 2 – 200 RPM, 8 PPR | 800-001600 |
ST420-H 2 – 2000 RPM, 8 PPR | 800-001601 |
ST420-C-0019 0.2 – 200 RPM, 8 PPR | 800-001620 |
ST420-C-0020 0.2 – 2000 RPM, 8 PPR | 800-001621 |
ST420-DI-L 2 – 200 RPM, 8 PPR | 800-001900 |
ST420-DI-H 2 – 2000 RPM, 8 PPR | 800-001901 |
ST420-DI-C-0019 0.2 – 200 RPM, 8 PPR | 800-001920 |
ST420-DI-C-0020 0.2 – 2000 RPM, 8 PPR | 800-001921 |
ST420-LT-L 2 – 200 RPM, 8 PPR | 800-004100 |
ST420-LT-H 2 – 2000 RPM, 8PPR | 800-004101 |
ST420-LT-C-0019 0.2 – 200 RPM, 8 PPR | 800-004120 |
ST420-LT-C-0020 0.2 – 2000 RPM, 8 PPR | 800-004121 |
=====================================================
SBS là đại lý phân phối chính hãng Electro-Sensors tại Vietnam
Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7
Xem thêm sản phẩm Electro-Sensors tại Vietnam
