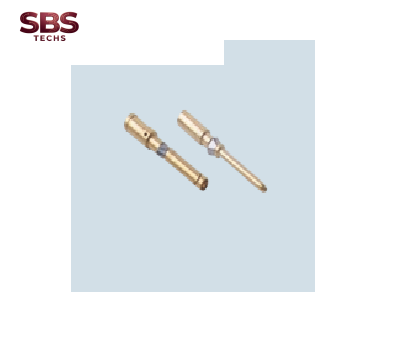

CDMD 0.7 ILME Brief description: 10A CD contacts, gold plated, 0,75mmq, AWG 18

Name: CDMD 0.7 ILME Brief description: 10A CD contacts, gold plated, 0,75mmq, AWG 18 - CÔNG TY TNHH CÔNG NGHỆ SBSTECHS
SKU: cdmd-07-ilme-brief-description-10a-cd-contacts-gold-plated-075mmq-awg-18

Liên hệ

Chi tiết sản phẩm

TECHNICAL DETAILS

Product description
Model	Male contacts
Version	Crimp contacts CLASS series
Series	10A CD contacts
Family	Crimp contacts
N. of poles	1 pole
Technical data
Current	10 A
Wire cross-section	0,75 mm²
AWG size	18
Operating temperature range (min, max)	-40°C … +125°C
Contact type	Gold plated
Further technical details
Weight	0,80 g
Approvals / Standards
Quality mark	, EAC
Conformity	CQC, CE
General ordering information
EAN13 code	8015747015592
Tariff number	85369095
Packaging Information
Packaging length	112,00 mm
Packaging height	95,00 mm
Packaging width	117,00 mm
Packaging weight	1,28 kg
Packaging volume	1,24 dm³
Packaging description	Carton box
Packaging quantity	1600 Pcs
Packaging EAN code	8015747206976
Sub-packaging length	50,00 mm
Sub-packaging height	44,00 mm
Sub-packaging width	50,00 mm
Sub-packaging weight	0,16 kg
Sub-packaging volume	0,11 dm³
Sub-packaging description	Plastic box
Sub-packaging quantity	200 Pcs
Sub-packaging EAN barcode	8015747015608

Ngoài ra chúng tôi cong cung cấp nhiều loại khác của ILME

ILME/Italy	CDFD 0.7 Crimp contact socket / Crimpkontaktbuchse 0.75mm² – gold plated Series D packing unit = 200 pcs
ILME/Italy	CCMD 0.7 Crimp contact pin / Crimpkontaktstift 0.75mm² – gold plated Series C packing unit = 100 pcs
ILME/Italy	CCFD 0.7 Crimp contact socket / Crimpkontaktbuchse 0.75mm² – gold plated Series C packing unit = 100 pcs
