Monitoring and Protection System for highest safety requirements up to SIL3

• TMR (triple-modular-redundant) system with sensor monitoring and self-test
• Highest safety levels with maximum availability by unique and true 2oo3 architecture for each trip criterion within each Monitor
• Maintenance-free during lifetime due to integrated automatic proof tests
• Automated tests of the valve control outputs with permanent monitoring of the feedback by the Test Generator
• Minimal Total Cost of Ownership
• Requires less than 1% of the permissible PFD value for a SIL3 Safety Loop
• Enhanced safety values due to an integrated Test Generator
• Replacement of all active components during operation (Hot Swap)
• TÜV certified for safety level SIL3 / IEC 61508:2010
• TÜV certified for PL e; Cat. 3 / DIN EN ISO 13849-1:2008
• TÜV certified for SILCL3 / IEC 62061:2005
• API670 and API612 compliant
• 2 PROFIBUS Interfaces

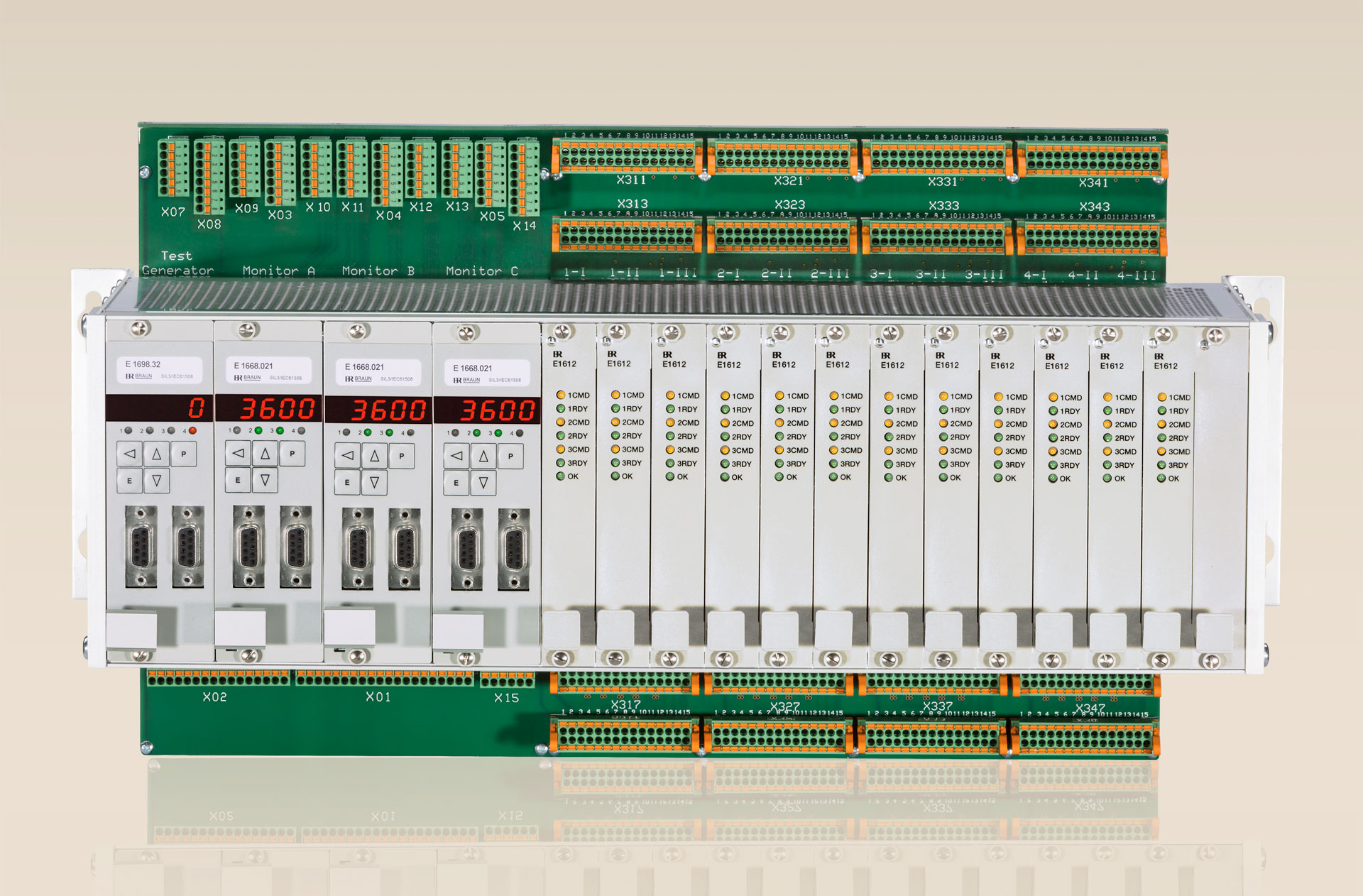

• Additional features for E16A358 SIEMENS:
  • Individual 2oo3 valve control (expandable for up to 96 valves)
  • Status feedback of the valve controls to the PLC / DCS via PROFIBUS
