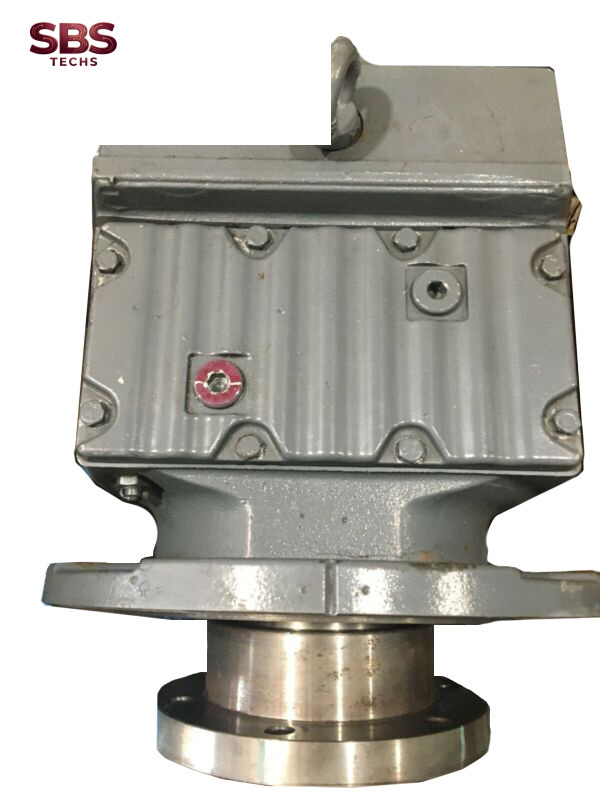

Helical geared motor with MOVIMOT (ATEX) RF97/II2GD EDRN100LS4/3D/MM30/MO/TH/AL/C Sew Vietnam

Helical geared motor with MOVIMOT (ATEX) RF97/II2GD EDRN100LS4/3D/MM30/MO/TH/AL/C Sew Vietnam

Helical geared motor with MOVIMOT (ATEX) RF97/II2GD EDRN100LS4/3D/MM30/MO/TH/AL/C Sew Vietnam

Liên hệ

Đại lý Sew Vietnam,Helical geared motor with MOVIMOT (ATEX) RF97/II2GD EDRN100LS4/3D/MM30/MO/TH/AL/C Sew Vietnam

100% Germany Origin	Sew Vietnam	Type: RF97/II2GD EDRN100LS4/3D/MM30/MO/TH/AL/C Helical geared motor with MOVIMOT (ATEX) Note: Replacement for RF97/II2GD DV100L4/TH/C/MM30/MLA/BW2/II3D, Nr. 01.1297642802.0001.09 New motor generation DRN in IE3. You have to check all technical specifications Product data Input speed [r/min] : 1400 – 280 Output speed [r/min] : 17 – 3.4 Max. output speed [r/min] : 32 Max. input speed [r/min] : 2700 Total ratio [i] : 83,15 / infinite Output torque [Nm] : 1250 Max. input torque [Nm] : 15,00 Max. overhung load [N] : 21000 Service factor SEW-FB : 2,20 Mounting position : M4 Term.box.pos.[°] / cable entry : 180 (L)/ normal Position of external option : Position 2 Lubricant / -volume [l] : CLP HC 220 Synth.Oil / 14,00 Paint coat : Top coat RAL7031 (blue gray) Assembly specifications : ATEX gear unit to assembly instructions 63123797 Frequency inverter duty : Gear unit on a frequency controlled motor given free for the max permissible speed and input torque. The duty of the : frequency controlled gear and motor is to find in the operating instructions. Output shaft end : 60x120mm lg. Output shaft design : with keyway/with key Flange : 350mm Output oil seal : 2 oil seals FKM Explosion-proof gear unit, gas : II 2G Ex h IIC T4 Gb Explosion-proof gear unit,dust : II 2D Ex h IIIC T120°C Db Enclosure reducer [IP] : 65 Ambient temp. gear unit [°C] : -20 … +40 Output oil seal material : FKM Motor power [kW] : 2.2 / 0.33 Motor frequency [Hz] : 50 Cyclic duration factor S1-S10 : S1 Setting range (CT) : 1:5 Motor frequency min. [Hz] : 13 Motor voltage [V] : 400-500 Line frequency [Hz] : 50-60 MM rated main current [A] : 5,00 MM rated OP current [A] : 7,30 Std. wiring diagram no. : 800570015 Thermal cl.[°C]/Enclosure[IP] : 155(F) / 55 Motor mains efficiency [%] : 86,9 Design specification (EX) : EU directive 2014/34/EU (ATEX) EX protection (motor) : ATEX (EU) : 3D (category 3: dust) Protection types tc for zone 22 EX standard dust : EN60079-31 EX labeling dust : II3D Ex tc IIIB T140°C Dc EX group dust : IIIB (suitable for non-conductive dusts and lint) Max. surface temperature/class : T140°C Equipment Protect. Level Dust : Dc Ventilation : AL = metal fan Fan guard element : C = protection canopy Motor protection : TH = Thermostat (NST 150) MOVIMOT : MM30-14 MOVIMOT type : MM30D-503-14 MOVIMOT additional function : 10 = Reduced torque for low frequencies External option : MLA12B = setpoint converter 0..20mA/RS485 Application design 11622601 and DC24V supply MI/DIM part number : 28259327 MOVIMOT braking resistor : BW2 DIP-switch setting : 10000000 00000101 Grounding terminal : With grounding terminal on stator (high frequency/low frequency
100% Germany Origin	Sew Vietnam	DRN160L4/FG/V AC motors DRN.. (IE3) same execution as no. 01.1780969702.0001.12 but new motor generation in IE3 Product data Rated motor speed [1/min] : 1474 Mounting position : M1 Base / top coat : 7031 Blue gray (51370310) Position of connector/terminal box [°] : 0 Cable entry/connector position : X Output shaft [mm] : Pinion Pin 28 Flange diameter : FG300 D350 Motor power [kW] : 15 Duration factor : S1-100% Efficiency class : IE3 Efficiency (50/75/100% Pn) [%] : 91,87 / 92,46 / 92,1 CE mark : Yes Motor voltage [V] : 230/400 Motor voltage 50Hz [V] : 220-230D/380-400Y Wiring diagram : R13 Frequency [Hz] : 50 Rated current [A] : 52 / 30 Cos Phi : 0,80 Thermal class : 155(F) Motor protection type : IP55 Design requirement : Europe (CE) Motor mass moment of inertia [10⁻⁴ kgm²] : 1040,00 Additional feature Output shaft: Pinion Pin 28 mm Multi-range voltage Yes Thermal class 155(F) V- Forced cooling fan IP 66, 220..575 V 50/60 Hz With fitted pinion no. 00043478 Degree of protection IP 55
100% Germany Origin	Sew Vietnam	PN: 13642383 Cooler F.cool cp DRN132M/L/DR160/V/230VAC Note: Replacement for PN: 13617982

SBS là đại lý phân phối chính hãng Sew Vietnam

Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7

Xem thêm sản phẩm Sew tại Vietnam

Nhà cung cấp	Chưa cập nhật
Xuất xứ	Chưa cập nhật
