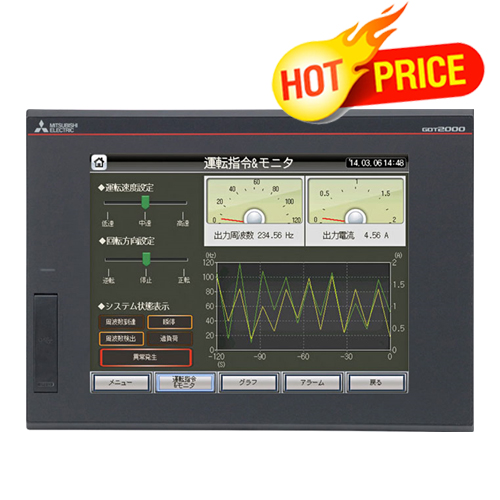

Mitsubishi Vietnam,HMI GT2510-VTBA Mitsubishi
GT2510-VTBA
Model name | GT2510-VTBA |
Overview | 10.4”, VGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 100 V AC to 240 V AC |
Conformance standard | UL cUL CE(EMC) CE(LVD) CE(RoHS) KC LR NK DNV ABS RINA BV |
Model |
Product name |
Series name |
Model name |
GT2510-VTBA |
GT25 model |
GOT2000 |
GT25 |
Performance specifications
Display section*1 *2 | Display device | |
Screen size | ||
Resolution | ||
Display size | ||
Number of displayed characters | ||
Display color | ||
Brightness adjustment | ||
Registrable number of screen | ||
Backlight | ||
Backlight life*4 | ||
Backlight color | ||
Touch panel*3 *11 | Type | |
Key size | ||
Simultaneous press | ||
Life | ||
Panel color | ||
Human sensor | Detection length | |
Detection temperature | ||
Memory | User memory | Capacity |
Life (number of write times) | ||
Built-in clock precision | ||
Battery | Type | |
Data to be backed up | ||
Life | ||
Built-in interface | RS-232 interface | Number of channel |
Transmission speed | ||
Connector shape | ||
RS-422/485 interface | Number of channel | |
Transmission speed | ||
Connector shape | ||
RS-422/232 interface | Number of channel | |
Transmission speed | ||
Connector shape | ||
Application | ||
RS-422 interface | Number of channel | |
Transmission speed | ||
Connector shape | ||
Ethernet interface | Number of channel | |
Transmission speed | ||
Connector shape | ||
Bus interface | Type | |
Number of channel | ||
RGB interface | ||
Printer interface | ||
USB interface (host) | Number of channel | |
Maximum transfer rate | ||
Connector shape | ||
USB interface (device) | Number of channel | |
Maximum transfer rate | ||
Connector shape | ||
SD memory card interface*12 | ||
CF card interface | ||
PC card interface | ||
Option function board interface | ||
Memory board interface | ||
Extension interface | ||
Side interface | ||
Sound output interface | ||
Buzzer output | ||
LED specifications | POWER LED | |
Installation method | ||
Protective structure*6 | ||
External dimensions | ||
Panel cut dimensions | ||
Weight (excluding a fitting) | ||
TFT color LCD |
VGA: 640 x 480 dots |
211.2 (W) x 158.4 (H) mm |
16-dot standard font: 40 characters x 30 lines (two-byte characters) |
65536 colors |
32 levels |
4096 |
LED (not replaceable) |
Approx. 60000 h (operating ambient temperature: 25°C, display intensity: 50%) |
White |
Analog resistive film |
Minimum 2 x 2 dots*9 (per key) |
Not available*5 (Only 1 point can be touched.) |
1 million touches or more (operating force: 0.98 N or less) |
Black |
－ |
－ |
Memory for storage (ROM) *12 : 32 MB |
100000 times |
±90 seconds/month (ambient temperature: 25°C) |
GT11-50BAT lithium battery |
SRAM data, clock data, system status log data |
Approx. 5 years (ambient temperature: 25°C) |
1 channel |
115200, 57600, 38400, 19200, 9600, 4800 bps |
D-sub 9-pin (male) |
1 channel |
115200, 57600, 38400, 19200, 9600, 4800 bps |
D-sub 9-pin (female) |
－ |
－ |
－ |
－ |
－ |
－ |
－ |
1 channel |
100BASE-TX, 10BASE-T |
RJ-45 (modular jack) |
－ |
－ |
－ |
－ |
2 channels (front face, rear face) |
High-Speed 480 Mbps |
USB-A |
1 channel (front face) |
High-Speed 480 Mbps |
USB Mini-B |
1 channel, SDHC compliant (maximum 32 GB) |
－ |
－ |
－ |
－ |
For installing a communication unit or an option unit |
For installing a communication unit |
－ |
Single tone (tone and tone length adjustable) |
2 colors (blue and orange) |
Standard |
Front: IP67F*7*10 |
303 (W) x 218 (H) x 52 (D) mm |
289 (W) x 200 (H) mm |
2.1 kg |
100% Japan/China | Mitsubishi | Model : GT2510-VTBA |
Manual title | Ver. | Language | Model name | Update |
|---|---|---|---|---|
GOT2000 Series User’s Manual (Hardware) | AP | English | 1D7MJ5 | 2022/07 |
GOT2000 Series User’s Manual (Utility) | AM | English | 1D7MJ6 | 2022/07 |
GOT2000 Series User’s Manual (Monitor) | AN | English | 1D7MJ7 | 2022/07 |
GT25 General Description | M | English | 1D7MN4 | 2021/09 |
GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 | AN | English | 1D7MJ8 | 2022/07 |
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 | AJ | English | —- | 2022/07 |
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 | AK | English | —- | 2022/07 |
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 | AK | English | —- | 2022/07 |
GOT2000 Series MES Interface Function Manual For GT Works3 Version1 | P | English | —- | 2022/04 |
GT Designer3 (GOT2000) Screen Design Manual | AP | English | 1D7ML9 | 2022/07 |
Mobile App Pocket GOT Operating Manual | A | English | —- | 2022/02 |
GT Converter2 Version3 Operating Manual for GT Works3 | N | English | 1D7MB2 | 2022/04 |
Graphic Operation Terminal (GOT2000 Series) Basic Training Textbook (for GT Works3) | A | English | 1D7MT6 | 2018/02 |
