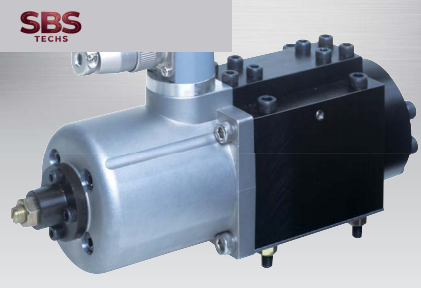

Power Guide PG300, PG500, PG800AA
Overview
The Power Guide servo valve is back, lighter, and with even stronger erformance than ever before.
Compatible with older models through a specialized adapter, and as easy to use as ever, Power Guide servo valves combine high performance and convenience with the toughness to work in dirty environments, changing the face of industrial servo valves.
Feature
Compact
- Smaller and lighter, the unit has only one fifth the volume of previous models.
High responsivity
- 45Hz/-3dB
- Power Guide servo valves feature high responsivity and high gain, with low hysteresis, achieving high levels of precision in EPC and CPC.
Specifications
| Model | PG800 | PG500 | PG300 | |
|---|---|---|---|---|
| Dimensions | 114 x 224 x 70 | |||
| Rated pressure | 2 – 14MPa | |||
| Rated flow L/min | 80 | 50 | 25 | |
| Return-side pressure resistance | Internal drain | 1MPa | ||
| External drain | 3MPa | |||
| Internal leakage L/min | 4.5 | 3.5 | 3 | |
| Response of frequency | 45Hz (-3dB) | |||
| Hysteresis | 1% | |||
| Ambient operating temperature | 0 – 50°C | |||
| Hydraulic oil temperature | 10 – 60°C 《10 – 50°C》 | |||
| Hydraulic oil viscosity range | 20 – 80 mm/S (cSt) | |||
| Hydraulic oil contamination grade | NAS grade 11/Mass grade 103 | |||
| Line filter | 10μm(β10≧200) | |||
| Moving Coil resistance value | 18.5Ω 《20》 | |||
| Rated current | ±200mA DC | |||
| Recommended dither signal (100Hz) | 2Vp-p | |||
| Fixed orifice | φ0.4mm 《φ0.45mm》 | |||
| Hydraulic oil | Mineral oil (water glycol under development) Fatty acid ester, mineral oil, phosphate ester and water-glycol types | |||
