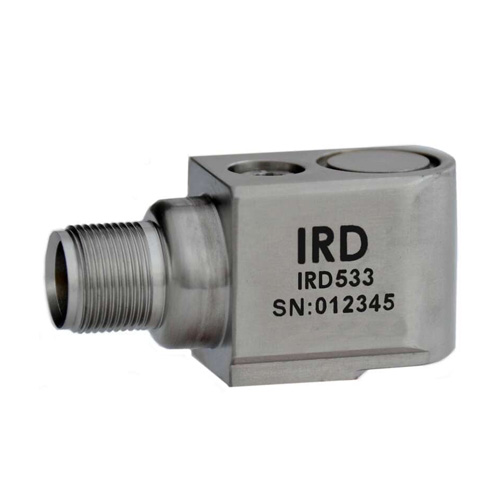

IRD533 (MIL533), Side Exit, 4 mV/mm/sec, M6 x 1 mounting bolt IRD Mechanalysis

Liên hệ

IRD Mechanalysis Vietnam,IRD533 (MIL533), Side Exit, 4 mV/mm/sec, M6 x 1 mounting bolt IRD Mechanalysis

Technical Perfomance

Mounted Base Resonance (nominal)
22 kHz
Sensitivity
4 mV/mm/sec
Frequency Response
2 Hz to 6 kHz
Isolation
Base Isolated
Range
1000 mm/s pk
Transverse Sensitivity
Less than 5%

Electrical

Electrical Noise
0.1mg max
Current Range/Constant Current Excitation
0.5mA to 8mA
Bias Output Voltage
10-12 Volts DC
Settling Time
2 seconds
Output Impedance
200 Ohms max
Case Isolation
More than 10 to the power 8 at 500 Volts
Voltage Source (IEPE)
18-30 V DC

Mechanical

Case Material
Stainless Steel
Sensing Element/Construction
PZT/Compression
Mounting Torque
8 Nm

Environmental

Operating Temperature Range
-55 to 140 Deg C
Maximum Shock
5000g

IRD Mechanalysis Vietnam	Model IRD533 IRD533 (MIL533), Side Exit, 4 mV/mm/sec, M6 x 1 mounting bolt SKU: M5330045006000
IRD Mechanalysis Vietnam	Model M88200 IRD8800 (8800), M88200 (88200) – Casing Vibration Module, 2Ch Vibration Input and 1Ch Keyphasor Input, API Standard 670 Compliant SKU : M88200 NOTE: Please confirm Input Supply Voltage. We can accept 90-270 V AC as an option OR 24 V DC as other option. Supplies are not interchangeable.
IRD Mechanalysis Vietnam	Model MS-PAD-M6 Sensor Mounting Pad MS Blackodized for Accelerometer (40x40x16mm) with M6 x 1 thread tapped SKU : MS-PAD-M6 Earlier known by SKU M60056
IRD Mechanalysis Vietnam	Model M60101 Cable Assembly, Teflon 3.5mm dia, SS Conduit 5mm ID, 10m, 2 Pin MS, Shielded Temperature withstand capability less than 260 degC Connection: 2 Pin MS at sensor end and Spade Lugs at other end

=====================================================
