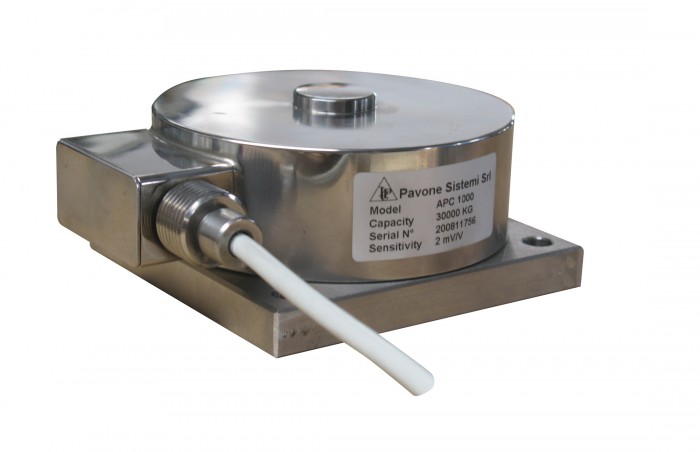

- Designed to meet the requirements of a wide range of industrial weighing applications: hoppers, tanks, platforms
- Very small mounting space due to its small overall dimensions
- Accurate and robust
- Made of stainless steel
- IP67 protection, perfect for working in harsh environmental conditions typical of applications in the food, chemical and pharmaceutical
| ated Load (R.L.): | 100, 250, 500, 1000 Kg |
| Combined error: | ±0.1% of R.O. |
| Repeatability: | ±0.02% of R.O. |
| Creep (20 minutes): | ±0.03% of R.L. |
| Safe Overload: | 150% of R.L. |
| Ultimate Overload: | > 300% of R.L. |
| Recommended input: | 5÷15 Vdc/Vac |
| Input resistance: | 700 ± 20 Ohm |
| Output resistance: | 700 ± 5 Ohm |
| Insulation resistance: | > 5000 M Ohm |
| Rated output (R.O.): | 2 mV/V |
| Zero balance: | ± 1% of R.O. |
| Temperature range: | -20 ÷ +70°C |
| Compensated Temperature Range: | -10 ÷ +50°C |
| Temp. effect (-10°C to +50°C) on output: | ± 0.005% of output/°C |
| Temp. effect (-10° to +50°C) on zero balance: | ± 0.005% of R.O./°C |
| Max load deflection: | <0.3mm |
| Degree of protection: | IP67 |
| Material: | Stainless steel |
| Electrical connection: | 6 conductors shielded cable; length 4 m |
