Loadcell Cân Bồn Schenck Process | Loadcell Cân Silo Schenck Process
Cảm biến Cân Silo Schenck Process | Cảm biến Cân Bồn Schenck Process
SBS chuyên cung cấp loadcell Shenck Process tại Việt Nam
Loadcell cân bồn – cân silo DWB 11.5 … 25t Schenck Process
Option: HT-type for service temperature up to 120°C
Protected to IP 67
| DWB 11.5 t | D 703 100.01 |
| DWB 15 t | D 703 100.02 |
| DWB 25 t | D 704 280.03 |
| DWB 11.5 t HT | D 703 100.04 |
| DWB 25 t HT | DWB 25 t HT |

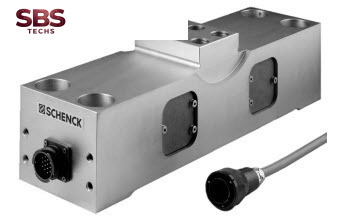

Loadcell cân bồn – cân silo SENSiQ WB 40t … 600t Schenck Process
The original, proven over more than 30 years, optimized to the latest state of technology
Expanded to an operating temperature from -40 °C … 180 °C
High precision with a maximum combined error of ±0.07 % across the entire temperature range
Extremely robust and maintenance-free, IP68
6-wire circuit
| WB 40 t | V711375.B03 | V758596.B01 |
| WB 50 t | V711375.B13 | V758596.B11 |
| WB 100 t | V711375.B23 | V758596.B21 |
| WB 150 t | V711375.B33 | V758596.B31 |
| WB 200 t | V711375.B43 | V758596.B41 |
| WB 600 t | V090162.B01 | V758596.B51 |
Loadcell cân bồn – cân silo VDW Shenck Process
Laser-Welded, Protection Class IP 68,1m/100hr; IP69K
| VDW 33t, C3 without mounting parts | V080434.B01 |
| VDW 44t, C3 without mounting parts | V080434.B02 |
| Set of mounting parts (2 thrust pieces) for load cell VDW | V080494.B01 |

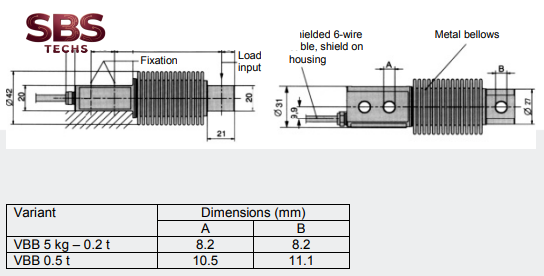

LoadCell Cân bồn VBB và LoadCell Cân Silo VEB
- Highest accuracies (up to 6000increments to OIML R60)
- Hermetically sealed due to laser
- welding (IP68)
- Use in hazardous zone with protection class
- Ex ia IIC T4 Gb / Ex ia IIIC T125 °C Db or protection class
- Ex nA IIC T4 Gc / Ex tb IIIC T125 °C Db
- Optimized for parallel connection through perfect calibration
- 6-wire circuit
- 100 % stainless steel
| VBB 5 kg D1 | D 725 417.0 | |||
| VBB 10 kg D1 | D 725 417.02 | |||
| VBB 10 kg СЗ | D 725 419.02 | VBB 10 kg СЗ „Ex | D 725 419.32 | D 725 419.42 |
| VBB 20 kg D1 | D 725 417.03 | |||
| VBB 20 kg C3 | D 725 419.03 | VBB 20 kg C3 „Ex” | D 725 419.33 | D 725 419.43 |
| VBB 50 kg D1 | D 725 417.04 | |||
| VBB 50 kg C3 | D 725 419.04 | VBB 50 kg C3 „Ex” | D 725 419.34 | D 725 419.44 |
| VBB 0.1 t D1 | D 725 409.01 | VBB 0,1 t D1 „Ex” | D 725 409.61 | D 725 409.41 |
| BB 0.1 t C3 | D 725 409.04 | VBB 0,1 t C3 „Ex” | D 725 409.64 | D 725 409.44 |
| VBB 0.1 t C4 | D 726 370.01 | VBB 0,1 t C4 „Ex” | D 726 370.31 | D 726 370.41 |
| VBB 0.2 t D1 | D 725 409.02 | VBB 0,2 t D1 „Ex” | D 725 409.62 | D 725 409.42 |
| VBB 0.2 t C3 | D 725 409.05 | VBB 0,2 t C3 „Ex” | D 725 409.65 | D 725 409.45 |
| VBB 0.2 t C4 | D 726 370.02 | VBB 0,2 t C4 „Ex” | D 726 370.32 | D 726 370.42 |
| VBB 0.2 t C6 | D 726 370.04 | VBB 0,2 t C6 „Ex” | D 726 370.34 | D 726 370.44 |
| VBB 0.5 t D1 | D 725 409.03 | VBB 0,5 t D1 „Ex” | D 725 409.63 | D 725 409.43 |
| VBB 0.5 t C3 | D 725 409.06 | VBB 0,5 t C3 „Ex” | D 725 409.66 | D 725 409.66 |
| VBB 0.5 t C4 | D 726 370.03 | VBB 0,5 t C4 „Ex” | D 726 370.33 | D 726 370.43 |
| VEB 5 kg – 0.2 t | D 725 408.01 | VEB 0.5 t | D 725 408.02 |
Example for ordering:
Rated Capacity 0.2 t, Accuracy Class C6: Variant VBB 0.2 t C6 – Ordering Number D726 370.04
Additional versions available upon request.
Optional feature ATEX/IECEx approval
Intrinsically safe ATEX explosion-proof design
category 2GD and IECEx EPL Gb, Db
Gas-Ex II 2G Ex ia IIC T4 Gb (Zone 1)
Dust-Ex II 2D Ex ia IIIC T125 °C Db, IP67 (Zone 21)
Load cells marked as intrinsically safe – Ex “i” – are also operated intrinsically safely irrespective of the zone.
Warning: The verification of intrinsically safe circuit must be verified. New barriers are provided in particular for new systems. The verifications of intrinsically safe circuit are available for all load cells and barriers.
Non intrinsically safe ATEX explosion-proof design category
2D, 3G and IECEx EPL Db, Gc
Gas-Ex II 3G Ex nA IIC T4 Gc (Zone 2)
Dust-Ex II 2D Ex tb IIIC T125 °C Db, IP67 (Zone 21)
LoadCell Cân Bồn RTN Schenck Process
Loadcell cân Silo RTN Schenck Process
Use in hazardous zone with protection class
Ex ia IIC T4 Gb / Ex ia IIIC T125 °C Db or protection class
Ex nA IIC T4 Gc / Ex tb IIIC T125 °C Db
OIML approved as suitable for trade use (up to 5000 d and 7500 d in case of multidivisional scales)
Use in hazardous zone with protection class Ex ia IIC T4 Gb / Ex ia IIIC T125 °C Db or protection class Ex nA IIC T4 Gc / Ex tb IIIC T125 °C Db
Protection class IP68
| Variants | Accuracy class | |||
| 0.05 | C3 | C5 / C4 Mi 7.5 | ||
| RTN 1 t | D726173.04 | D726173.02 | D726173.10 | |
| RTN 2.2 t | D726174.04 | D726174.02 | D726174.10 | |
| RTN 4.7 t | D726175.04 | D726175.02 | D726175.10 | |
| RTN 10 t | D726176.04 | D726176.02 | D726176.10 | |
| RTN 15 t | D726177.04 | D726177.02 | D726177.10 | |
| RTN 22 t | D724781.04 | D724781.02 | D724781.10 | |
| RTN 33 t | D724754.04 | D724754.02 | D724754.10 | |
| RTN 47 t | D724782.04 | D724782.02 | D724782.10 | |
| RTN 68 t | D724783.04 | D724783.02 | D724783.10 | |
| RTN 100 t | D724784.04 | D724784.02 | D724784.10 | |
| RTN 150 t | D726178.04 | D726178.02 | ||
| RTN 220 t | D726179.04 | D726179.02 | ||
| RTN 330 t | D726180.04 | D726180.02 | ||
| RTN 470 t | D726181.04 | D726181.02 | ||
Accessories
SENSiQ™ Elastomer Mount (SEM)
SENSiQ™ Secure Mount (SSM)
SENSiQ™ Pendulum Mount (SPM)
SENSiQ™ Fixed Mount (SFM)
Loadcell cân bồn RTB Schenck Process
Loadcell cân Silo RTB Schenck Process
| [t] | C3 | C5 |
| 0.13 | V041085.B01 | – |
| 0.25 | V041086.B01 | – |
| 0.50 | V041087.B01 | V041087.B05 |
| 0.25 MR | V041086.B07 | – |
| 0.50 MR | V041087.B07 | – |
Order numbers model ATEX/IECEX II 1G Ex ia IIC T4 Ga/ II 1D Ex ia IIIC T73°C Da/
II 3G Ex nA IIC T4 Gc/ II 3D Ex tc IIIC T63°C DC*
| 0.13 | V041085.B11 | – |
| 0.25 | V041086.B11 | – |
| 0.50 | V041087.B11 | V041087.B15 |
*Which range, 1GD or 3GD, the load cell is used for, must be marked on the identification plate. For category 1GD or 2GD, the load cell must be connected intrinsically safe.
Installation accessories:
SENSiQ™ Secure Mount SSM, SENSiQ™ Elastomer Mount SEM
Load Cells VBB and Load Cell Mounts VEB
Use in hazardous zone with protection class Ex ia IIC T4 Gb / Ex ia IIIC T125 °C Db or protection class Ex nA IIC T4 Gc / Ex tb IIIC T125 °C Db
6-wire circuit
100 % stainless steel
Hermetically sealed due to laser welding (IP68)
| Variants Load Cells | Order No. | Ex-Variants Load Cells | Order No. 2GD | Order No. 2D/3G | ||
| VBB 5 kg D1 | D 725 417.01 | |||||
| VBB 10 kg D1 | D 725 417.02 | |||||
| VBB 10 kg СЗ | D 725 419.02 | VBB 10 kg СЗ „Ex” | D 725 419.32 | D 725 419.42 | ||
| VBB 20 kg D1 | D 725 417.03 | |||||
| VBB 20 kg C3 | D 725 419.03 | VBB 20 kg C3 „Ex” | D 725 419.33 | D 725 419.43 | ||
| VBB 50 kg D1 | D 725 417.04 | |||||
| VBB 50 kg C3 | D 725 419.04 | VBB 50 kg C3 „Ex” | D 725 419.34 | D 725 419.44 | ||
| VBB 0.1 t D1 | D 725 409.01 | VBB 0,1 t D1 „Ex” | D 725 409.61 | D 725 409.41 | ||
| VBB 0.1 t C3 | D 725 409.04 | VBB 0,1 t C3 „Ex” | D 725 409.64 | D 725 409.44 | ||
| VBB 0.1 t C4 | D 726 370.01 | VBB 0,1 t C4 „Ex” | D 726 370.31 | D 726 370.41 | ||
| VBB 0.2 t D1 | D 725 409.02 | VBB 0,2 t D1 „Ex” | D 725 409.62 | D 725 409.42 | ||
| VBB 0.2 t C3 | D 725 409.05 | VBB 0,2 t C3 „Ex” | D 725 409.65 | D 725 409.45 | ||
| VBB 0.2 t C4 | D 726 370.02 | VBB 0,2 t C4 „Ex” | D 726 370.32 | D 726 370.42 | ||
| VBB 0.2 t C6 | D 726 370.04 | VBB 0,2 t C6 „Ex” | D 726 370.34 | D 726 370.44 | ||
| VBB 0.5 t D1 | D 725 409.03 | VBB 0,5 t D1 „Ex” | D 725 409.63 | D 725 409.43 | ||
| VBB 0.5 t C3 | D 725 409.06 | VBB 0,5 t C3 „Ex” | D 725 409.66 | D 725 409.46 | ||
| VBB 0.5 t C4 | D 726 370.03 | VBB 0,5 t C4 „Ex” | D 726 370.33 | D 726 370.43 | ||

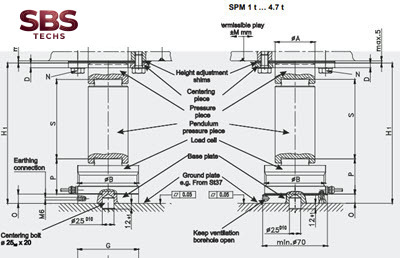

SENSiQ™ Pendulum Mount (SPM)
Self-Aligning Mount for Load Cell SENSiQ™ RTN 1 t … 470 t
| Variants | Order number without base plate | Order number with base plate | Variants | Order number without base plate | Order number with base plate |
| SPM 1 t | D 725565.16 | D 725565.11 | SPM 47 t | D 725565.08 | D 725565.03 |
| SPM 2.2 t | D 725565.17 | D 725565.12 | SPM 68 t | D 725565.09 | D 725565.04 |
| SPM 4.7 t | D 725565.18 | D 725565.13 | SPM 100 t | D 725565.10 | D 725565.05 |
| SPM 10 t | D 725565.19 | D 725565.14 | SPM 150 t | – | D 726616.01 |
| SPM 15 t | D 725565.20 | D 725565.15 | SPM 220 t | – | D 726616.02 |
| SPM 22 t | D 725565.06 | D 725565.01 | SPM 330 t | – | D 726616.03 |
| SPM 33 t | D 725565.07 | D 725565.02 | SPM 470 t | – | D 726616.04 |
