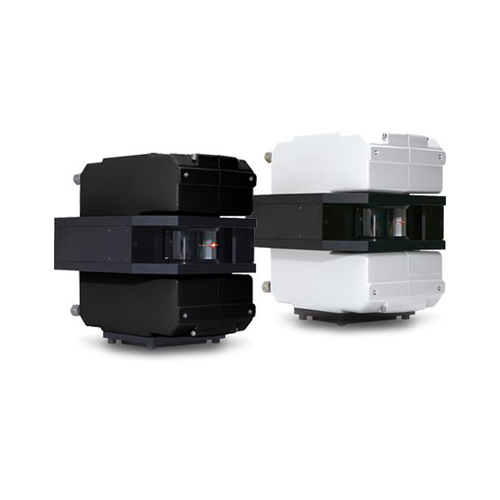

With scan speeds up to 300Hz and the ability to scan up to 1024 data points in a single scan, the MP Linescanner Series can provide a complete picture of even the highest speed manufacturing processes. Additionally, with a 90° field-of-view and up to 200:1 optics, each spot on the target surface is capable of being sampled up to three times, ensuring an accurate temperature reading.

Each linescanner also includes a built-in line laser for rapid alignment, resulting in lower installation costs. Built-in water cooling and air purge features, as well as optional waterproof housing, help maintain the scanner. The MP Linescanner Series also allows users to utilize existing networks with pre-wired cables, which connect to a standard PC for fast installations. The system’s versatile Datatemp® DP Software also lets you create custom operating parameters as well as easily display thermal images and temperature profiles.

Key Features:

• Real-time thermal imaging, scan speed up to 300Hz

• Up to 1024 measurement points per line

• Wide choice of spectral and temperature ranges

• Optical resolution up to 200:1

• Real-time color thermal images

• Accurate data analysis

• High-quality brushless motor (MTBF 40,000 h)

• Built-in Ethernet TCP/IP communications

• PC independent alarm output

• PC independent 4-20 mA interfaces (3 outputs)

• I/O module support for up to 10 sectors/zones (PC independent)

• Internal Line Laser for accurate alignment

• Rugged, waterproof IP65 housing

• Air purge keeps window free of dirt and condensation

• Built-in water cooling for ambient up to 180 °C (356 °F)

• Field-replaceable window
