Feature
The high spring-steel rigidity of the MJ tension sensor provides a high resonance point, making it ideal for high-speed lines.
The load displacement of the MJ tension sensor is extremely low, making it effective for thin web lines (i.e., film, foil, etc.).

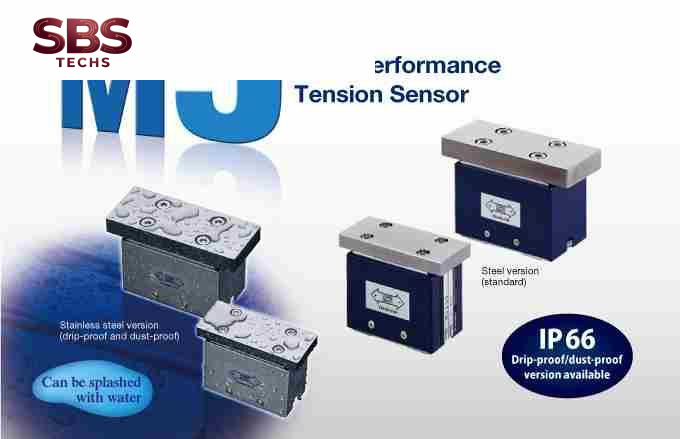

The stainless version has an IP66-compliant protective housing that can handle being splashed with water when cleaning a production line.
The use of a mono-block structure provides outstanding linearity and hysterisis.
The MJ sensor is compact but highly robust.
MJ050, MJ200, MJ1000 Nireco
Power Guide Nireco Việt Nam
servo valve PG1800 Nireco
Specifications
Model | MJ050 | MJ200 | MJ500 | MJ1000 | |
|---|---|---|---|---|---|
Diagram number | MD0000320 | MD0000330 | MD0000340 | MD0000350 | |
*1 | Rated tension (N) | 50 | 200 | 500 | 1000 |
*1,4,5 | Maximum roll load (N) | 200 | 200 | 500 | 1000 |
*1,4 | Maximum overload | 700 | 2000 | 5000 | 10000 |
Roll displacement (μm·N) | 0.36 | 0.12 | 0.05 | 0.03 | |
*2 | Resonance frequency (Hz) | 105.0 | 143.8 | 140.9 | 128.6 |
Frequency response (Hz) | 300 | ||||
*3 | Main unit mass (kg) | 0.9 | 1.7 | ||
Direction of resultant tension force | Forward or reverse | ||||
Mounting angle | Any desired angle | ||||
Supply voltage | ±15VDC ±1V (+15V/50mA, -15V/10mA) | ||||
Ambient temperature/humidity | 0 to +50°C, 35 to 85%RH (No condensation permitted) | ||||
IP Protection Rating | IP30 | ||||
