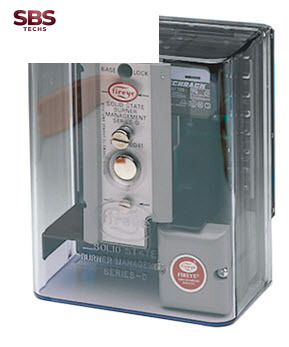

D-Series 70D40 and 70D41 Burner Control
SOLID STATE Burner Management Controls SERIES D40-41
Fireye® Series D10, D20 and D30 burner management controls provide ignition and main flame failure protection for automatically ignited oil and gas burners.
Plug-in Amplifier Modules permit the selection of ultraviolet, repetitive self-check ultra-violet, AUTOCHECK infrared, or rectification methods of flame detection. The control system includes a safe start check, effective on each start. If the flame signal (real or simulated) is detected, the unit cannot be started.
ORDERING INFORMATION
| D SERIES | C SERIES | |||||||
| OBSOLETE PART NUMBER | COMPONENTS | |||||||
| D40-5030 | Control 70D40 – Amplifier 72D1R1 | Type 26DF4 – Model 5030 | ||||||
| D41-5131 | Control 70D41 – Amplifier 72D1R1T | Type 26DF4 – Model 5131 | ||||||
| D40-5060 | Control 70D40 – Amplifier 72DUV1 | Type 25DU4 – Model 5060 | ||||||
| D41-5161 | Control 70D41 – Amplifier 72DUV1T | Type 25DU4 – Model 5161 | ||||||
| D40-5050 | Control 70D40 – Amplifier 72DRT1 | — | ||||||
| D41-5151 | Control 70D41 – Amplifier 72DRT1T | — | ||||||
DESCRIPTION OF FIREYE SERIES D40-41 COMPONENTS
| Control Chassis and Cover | Amplifier | Flame Scanner | |||||||
| Use with 70D40 (120VAC) 50-60 Hz or 70D41 (230VAC) 50/60 Hz | Rectification 72DRT12-4 sec. FFRT 72DRT1T1 sec. FFRT | 69ND1-1000K4 1/2“ mount 12“ (300mm) flame rod. 69ND1-1000K6 1/2“ mount 18“ (450mm) flame rod. 69ND1-1000K8 1/2“ mount 24“ (600mm) flame rod. | |||||||
| Infrared (IR) “Autocheck” 72D1R12–4 sec. FFRT 72D1R1T1 sec. FFRT *72D1R32–4 Sec. FFRT *72D1R3T1 Sec. FFRT * For specific applications see note below. | 48PT2-10031/2 straight mount 96“ (2400mm) cable. 48PT2–90031/2 angle mount 96“ (2400mm) cable. 1/ “ straight mount 48“ (1200mm) cable. 48PT2–10072 48PT2–90071/2“ angle mount 48“ (1200mm) cable. | ||||||||
| Ultraviolet (UV) 72DUV12-4 sec. FFRT 72DUV1T1 sec. FFRT | UV8A1/2“ angle mount 72“ (1800mm) wire (no cable). UV1A31/2“ straight mount 36“ (900mm) cable. UV1A61/2“ straight mount 72“ (1800mm) cable. UV23/8“ straight mount 36“ (900mm) cable. UV90-3, -6, –990º side opening, 36“ (900mm), 72“ (1800mm), or 108“ (2700mm) cable. 45UV3-10503/4“ straight mount cast aluminum housing, 72“ (1800mm) wire (no cable). | ||||||||
| 70D40 Only | 72DUVS4Repetitive Self–Check 2-4 sec. FFRT 72DUVS1TRepetitive Self–Check 1 sec. FFRT | 45UV5-10091″ NPT mount 72″ (1800mm) wire (no cable), 120VAC shutter. oror 45UV5-10081″ BSP mount 72″ (1800mm) wire (no cable),120VAC shutter. | |||||||
| 70D41 Only | 72DUVS1T or 72DUVS4 | 45UV5-10071″ BSP mount 72″ (1800mm) wire, no cable. 230VAC shutter | |||||||
| Wiring Base | 60-1386-2Standard base for surface mounting 60-1466-2Open base for cabinet mounting | ||||||||
| NOTE: Infrared “AUTOCHECK” amplifier modules 72D1R3, 72D1R3T, and 72D1R3T may be used for burner applications firing special fuel such as sawdust, sander dust, low BTU gas. The 72D1R3 type amplifiers are not to be used on any liquid fuel fired burner as it may result in malfunction causing damage to property and/or injury to personnel. | |||||||||
