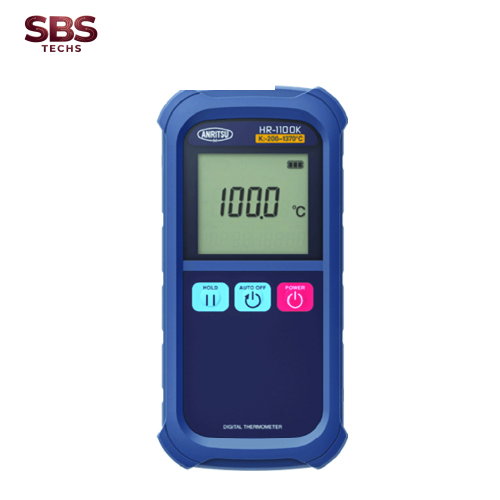

Model

HR-1100

Display

LCD

Waterproof specifications

Equivalent to IPX5

Input connector

ASP

Input type

Thermocouple Input: Type E, K

Channel

1ch

Signal source resistance

MAX.1k ohm

Measurement Range

1°C Resolution

E

-200 to 800°C

K

-200 to 1370°C

0.1°C Resolution

E

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)

K

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)

Measurement Accuracy

1°C Resolution

0°C to

± (0.1% of reading +1°C)

to 0°C

± (0.5% of reading +1°C)

0.1°C Resolution

0°C to

± (0.05% of reading + 0.2°C)

to 0°C

± (0.15% of reading + 0.2°C)

Reference junction compensation accuracy

±0.2°C at 25°C±10°C

Temperature Coefficient*1

±0.02×Δt°C (Add the value obtained by multiplying the excess temp.Δt[°C] by a coefficient to the total accuracy. e.g. ±0.3°C is added at room temp. of 0°C or 50°C)

Operation Environment

0 to 50°C, 0 to 80%RH (Non condensing)

Storage Environment

-20 to 50°C, 0 to 85%RH (Non condensing)

Battery life

approx.900h

Power supply(Dry battery)

4 AA Alkaline batteries

Power supply(AC power)

–

Sampling rate

approx.200ms

Linearlizer

Digital Linearizer method (Compliant with JIS C1602-2015)

Dimensions(mm)

approx. 82(w)×166(H)×36(D)  [Protruded parts excluded]

Weight

approx. 350g [Include Batteries]

Supplied accessories

Manual,Test report,Soft case,

Hand strap,4 AA Alkaline batteries

Compatible standards

EMC：EN61326-1：2013, EN 61326-2-1：2013 classA Table2（ Industrial）

RoHS：IEC EN 63000：2018
