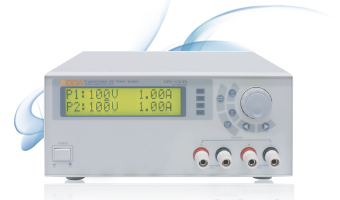

OPE-DI Series

Declaration of commercialization of the programmable DC Power Supply with the best technology!

	Supply of Programmable DC Power Supply at low price
	CV / CC mode operation
	OUTPUT ON/OFF function provided
	Able to store and recall up to five operation states (voltage, electric current)
	19¡±Half x 2U slim size (less than 300 W)
	RS-232C attached by default (RS-485 Option)

Specification

Voltage Current	10A	20A	30A	50A	100A	200A	500A
9V	OPE-910DI	OPE-920DI	OPE-930DI	OPE-950DI	OPE-9100DI	OPE-9200DI	OPE-9500DI
18V	OPE-1810DI	OPE-1820DI	OPE-1830DI	OPE-1850DI	OPE-18100DI	OPE-18200DI	OPE-18500DI
30V	OPE-3010DI	OPE-3020DI	OPE-3030DI	OPE-3050DI	OPE-30100DI	OPE-30200DI	OPE-30500DI
50V	OPE-5010DI	OPE-5020DI	OPE-5030DI	OPE-5050DI	OPE-50100DI	OPE-50200DI	OPE-50500DI
120V	OPE-10010DI	OPE-10020DI	OPE-10030DI	OPE-10050DI	OPE-100100DI	OPE-100200DI	OPE-100500DI
200V	OPE-20010DI	OPE-20020DI	OPE-20030DI	OPE-20050DI	OPE-200100DI	OPE-200200DI	OPE-200500DI
250V	OPE-25010DI	OPE-25020DI	OPE-25030DI	OPE-25050DI	OPE-250100DI	OPE-250200DI	OPE-250500DI
300V	OPE-30010DI	OPE-30020DI	OPE-30030DI	OPE-30050DI	OPE-300100DI	OPE-300200DI	OPE-300500DI
500V	OPE-50010DI	OPE-50020DI	OPE-50030DI	OPE-50050DI	OPE-500100DI	OPE-500200DI	OPE-500500DI

¡Ø Inquire our company or our distributor for the products besides the above mentioned model.

Parameter Model	OPE-3010S	OPE-3050S	OPE-30100S	OPE-50200S
Output rating	0~30V, 0~10A 2CH	0~30V, 0~50A 2CH	0~30V, 0~100A 2CH	0~50V, 0~200A 2CH
Resolution
Programming/Readback	¡Â 7.5mV / ¡Â 4mA	¡Â 7.5mV / ¡Â 15mA	¡Â 7.5mV / ¡Â 25mA	¡Â 15mV / ¡Â 50mA
Display Meter	100mV / 100mA	100mV / 100mA	100mV / 1A	100mV / 1A
Programming Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage	0.2% + 200mV	0.2% + 200mV	0.2% + 200mV	0.2% + 300mV
Current	0.2% + 50mA	0.2% + 250mA	0.2% + 500mA	0.2% + 1A
Read-back Accuracy (@25¡É ±5¡É)±(%of output + offset)
Voltage	0.2% + 200mV	0.2% + 200mV	0.2% + 200mV	0.2% + 300mV
Current	0.2% + 50mA	0.2% + 250mA	0.2% + 500mA	0.2% + 1A
Ripple & Noise	¡Â 2mVp-p, ¡Â 3mArms	¡Â 3mVp-p, ¡Â 10mArms	¡Â 10mVp-p, ¡Â 10mArms	¡Â 10mVp-p, ¡Â 20mArms
Load Regulation	0.01%+4mV, 0.01%+1mA	0.01%+8mV, 0.01%+5mA	0.01%+30mV, 0.01%+10mA	0.01%+50mV, 0.01%+10mA
Line Regulation	0.01%+4mV, 0.01%+1mA	0.01%+8mV, 0.01%+5mA	0.01%+30mV, 0.01%+10mA	0.01%+50mV, 0.01%+10mA
Command Processing Time	£¼20ms	£¼20ms	£¼20ms	£¼20ms
Voltage Programming Speed(No load)
Rising time	¡Â 120§Â	¡Â 120§Â	¡Â 120§Â	¡Â 120§Â
Falling time	¡Â3.6s	¡Â3.6s	¡Â3.6s	¡Â3.6s
Transient Response time	Less than 50§Á for output to recover to within 15mV following a change in output current from full load to half load or vice versa
Common matters	RS-232C attached by default
Option	Output at the rear side, input power (AC100, AC 110, AC 230), RS-485 communication, RS-485 to RS-232C Converter Analog Signal Input, Analog Signal Output, V-Sensing, OVP, OCP rack mount kit, RS-232C Cable
