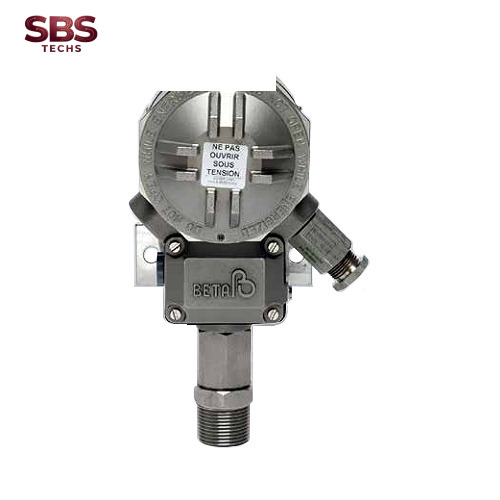

Pressure Sensor W3-P408M-S2N-S2-G1-J BETA

BETA Vietnam, Pressure Sensor W3-P408M-S2N-S2-G1-J BETA

100% EU Origin	BETA Vietnam	Code: W3-P408M-S2N-S2-G1-J Pressure Sensor Description: Pressure Switch / Druckwächter Housing: Alu, ATEX Ex d IIC T6..T5, IP65, Electrical connection 3/4′ NPT Adjustment range: 150 – 5400 mbar Max. Operating pressure: 125 bar Connection: NPT 1/2′ inside, 316 SS Diaphragm / O-ring: stainless steel / Viton-A Microswitch: VAC 125/1 VDC 28 / 0,5 for low voltage with gold contacts J = Chinch Jones connections Switching point bar falling/rising is factory set and documented via paper tag on switch.
100% EU Origin	BETA Vietnam	Code: C3-P406M-S2N-S2-G1-J Pressure Sensor Description: Pressure switch / Druckwächter Housing: aluminium, IP66, electrical connection 3/4′ NPT-F Setting range: 120 – 2300 mbar Max. working pressure: 125 bar Connection: NPT 1/2′ female, 316 SS Diaphragm/O-ring: stainless steel/Viton-A Microswitch: VAC 125/1 VDC 28/0.5 for low voltage with gold contacts ‘J=Chinch Jones connections’ By request: Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.
100% EU Origin	BETA Vietnam	Code: W3-P506H-S2N-S2-G1-J Pressure Sensor Description: Pressure switch / Druckwächter Housing: aluminium, ATEX Ex d IIC T6..T5, IP65, electrical connection 3/4′ NPT Setting range: 0.5 – 9.0 bar Max. working pressure: 200 bar Connection: NPT 1/2′ female, 316 SS Diaphragm/O-ring: stainless steel/Viton-A Microswitch: VAC 125/1 VDC 28/0.5 for low voltage with gold contacts ‘J=Chinch Jones connections’ By request: Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.
100% EU Origin	BETA Vietnam	Code: C3-P808H-S2N-S2-G1-J Pressure Sensor Description: Pressure switch / Druckwächter Housing: aluminium, IP66, electrical connection 3/4′ NPT-F Setting range: 4.0 – 170 bar Max. working pressure: 200 bar Connection: NPT 1/2′ female, 316 SS Diaphragm/O-ring: stainless steel/Viton-A Microswitch: VAC 125/1 VDC 28/0.5 for low voltage with gold contacts ‘J=Chinch Jones connections’ By request: Switching point bar falling/rising set at the factory and documented on a paper tag on the switch.
