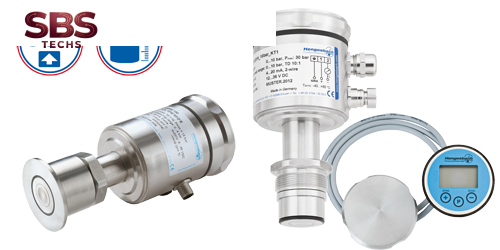

Origin | Hengesbach Vietnam | Pressure transmitter PZM101_0,3bar_MT1
suitable for relative or absolute pressure measurements.
programmable by external operating module OPUSM, flush mounted sensor membrane, stainless steel, laser welded
field housing material AISI 304 (Wkst. 1.4301), hygienic design
power supply 13…36V DC
output signal 4-20 mA, 2-wire, turndown 10
linearity ≤ ±0,15% FS
overload protection ≥ 2,5-fold sensor measuring range
process connection: modular process connection system PZM, EHEDG type EL Aseptic Class 1 certified, with thrust bolt, material AISI 316L
implementation
– potted electronics, protection rating IP 67 & IP 69K according to EN 60529
– o-ring sealing 28×2,5, material EPDM (FDA compliant)
ordering information
sensor measuring range / adjusted measuring range:
1bar rel / 0,3bar rel
electrical connection: round plug M12x1
temperature type: T1 Standard
according to data sheet PN-PZM100-101… current revision |
