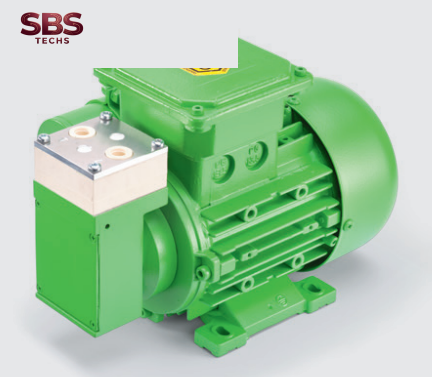

Đại lý KNF Vietnam,Pump IP55 230V50/60HZ EX (IEC) N87TT.9E 321525/321563 KNF Vietnam
ADVANTAGES
● High chemical resistance
● Robust design
● Copes well with vapor and condensation
● High level of performance in a compact size
● Excellent price/performance ratio
● Motor approved in accordance with ATEX/IECEx
● High level of gas tightness: approx. 6 x 10-3 mbar x l/s POSSIBLE AREAS OF USE
● Environmental monitoring – especially in potentially explosive fields
● Process industry
● Chemical industry
PERFORMANCE DATA
Series model N 87 Material design TT.9 E Ex Pump head PVDF Diaphragm PTFE-coated Valves FFPM Flow rate at atm. pressure (l/min) 7.5 Ultimate vacuum (mbar abs.) 140 Max. operating pressure (bar rel./psig) 1.5/21.8 Permissible ambient temperature (°C) +5 … +40 Permissible media temperature (°C) +5 … +40 Weight (kg/lbs) 6.7/14.8 ELECTRICAL DATA Voltage (V) 230 220 115 110 100 Motor Capacitor motor Protection class motor IP 66 Protection class pump IP 55 Frequency (Hz) 50/60 Power P2 (W) 60 120 IN (A) 0.6/0.7 1.09/1.18 2.18/2.12 2.18/2.10 2.28/2.26 Explosion protection pump parts Ex II 2G Ex h IIB+H2 T4 Gb Explosion protection capacitor motor Ex II 2G Ex dbeb IIC T4
100% Germany Origin | KNF Vietnam | Item: 321525/321563 |
SBS là đại lý phân phối chính hãng KNF VietNam chuyên cung cấp sản phẩm KNF
Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7
Xem thêm sản phẩm KNF tại Vietnam
