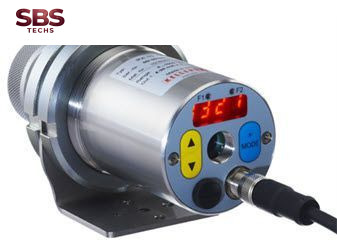

Pyrometers CellaTemp PA Series – Hoả quang kế PA Series Keller
With its wide variety of options and models, this pyrometer series offers unmatched versatility, whether you require a two-colour (ratio) or one-colour (spectral) measuring technique. Features include: through-the-lens sighting or laser target marker. Signal processing options include analogue output, digital interface, USB and RS 485.
| Device | Temperature | Wavelength | Mode | Fiber optics |
| PA 10 | 0 – 1000 °C | 8 – 14 µm | spectral | |
| PA 13 | 500 – 1600 °C | 3.9 µm | spectral | |
| PA 15 | 300 – 2500 °C | 4.6 – 4.9 µm | spectral | |
| PA 20 | 250 – 2500 °C | 1.1 – 1.7 µm | spectral | |
| PA 21 | 300 – 2000 °C | 1.1 – 1.7 µm | spectral | Yes |
| PA 28 | 75 – 650 °C | 1.8 – 2.4 µm | spectral | |
| PA 29 | 150 – 2000 °C | 1.8 – 2.2 µm | spectral | |
| PA 30 | 500 – 2500 °C | 0.78 – 1.06 µm | spectral | |
| PA 31 | 550 – 2500 °C | 0.78 – 1.06 µm | spectral | Yes |
| PA 35 | 600 – 3000 °C | 0.82 – 0.93 µm | spectral | |
| PA 36 | 650 – 3000 °C | 0.82 – 0.93 µm | spectral | Yes |
| PA 40 | 500 to 3000 °C | 0.95/1.05 µm | two-colour | |
| PA 41 | 700 – 3000 °C | 0.95/1.05 µm | two-colour | Yes |
| PA 43 | 600 – 3000 °C | 0.95/1.05 µm | two-colour | |
| PA 50 | 500 – 1400 °C | 0.95/1.55 µm | two-colour | |
| PA 60 | 300 – 800 °C | 1.5/1.9 µm | two-colour |
