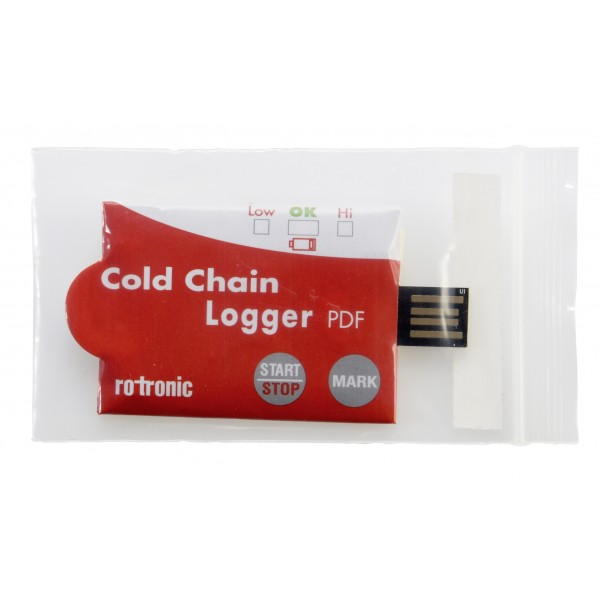

TL-CC1
Quick and easy to use temperature logger.
Applications
Monitoring of the cold chain during transport of sensitive freight such as pharmaceuticals, foods and technical products. The logger is designed for single use only.
Features
Freely configurable by user – without software installation
Clear alarm identification
Automatic PDF report generation
Everything in one logger: configuration file, PDF report, instruction manual and calibration certificate
High storage capacity: 8,000 data point memory
Manipulation-proof
Conforms to GxP, EN 12830 and FDA 21 CFR Part 11 / GAMP 5
Delivery
In box of 10 with instruction manual: TL-CC1-10
Technical data
| Type of logger | Single use |
|---|---|
| Parameter | Temperature |
| Dimensions | Without bag: 80(L) x 43(W) x 2.5(D) mm with bag: 105(L) x 55(W) x 2.5(D) mm |
| Weight | ≈ 10g |
| Range of application | -30…70 °C / -22…158 °F / < 80 %RH |
| Resolution | 0.1 °C |
| Battery | CR2032 (not replaceable) |
| Logging interval | 0.5/5/10/30/60/90/120 min |
| Start delay | 0.5/5/10/30/60/90/120 min |
| Alarm ranges | -20…-10 °C, -10…0 °C, 2…8 °C, 0…15 °C, 0…25 °C, 15…25 °, freely selectable values |
| Alarm type | Deactivated, single or cumulative |
| Storage period | 12 months |
| Storage capacity | 8192 data points |
| MARK function | Marking of up to 8 points during transport |
| Operation | START/STOP button, MARK button |
| LED indicators | LED “Low” flashes red when value below alarm point LED “Hi” flashes red when value above alarm point LED “OK” flashes green during data logging LED “Battery” flashes red when low battery |
| Operating system | Windows |
| Communication interfaces | USB |
| IP protection rating | IP65 (when placed in plastic bag) |
| Conformity | GxP, EN 12830, FDA 21 CFR Part 11 and GAMP5 |
