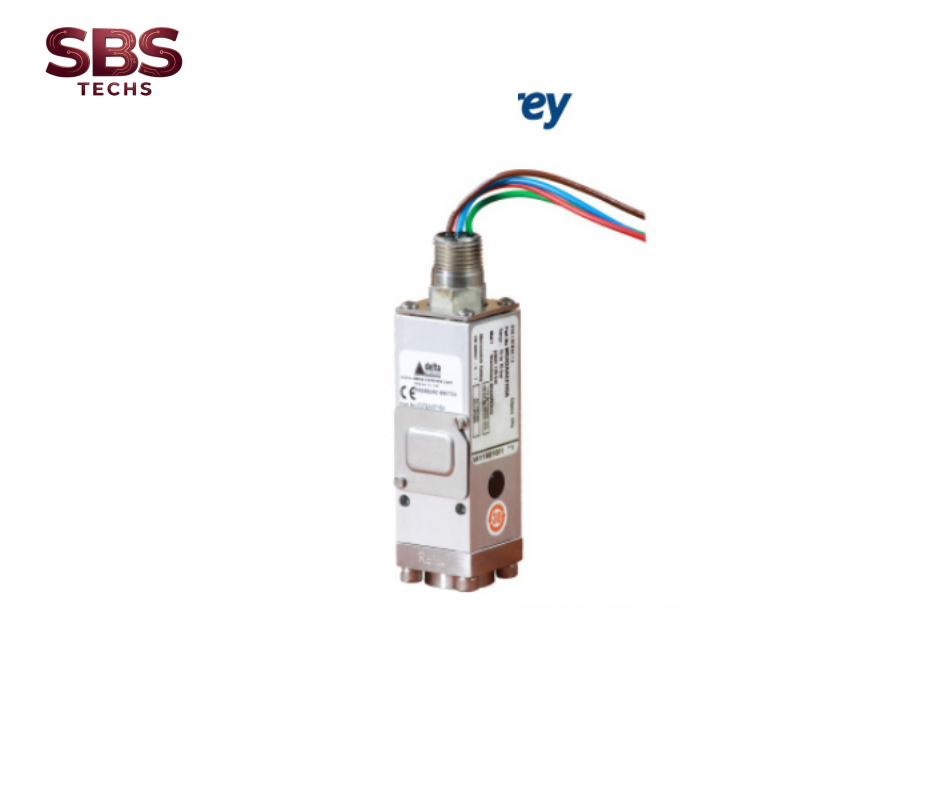

RS245SV703H02 Delta-mobrey Vietnam,Pressure Sensor

Đại lý Delta-mobrey Vietnam,RS245SV703H02 Delta-mobrey Vietnam,Pressure Sensor,Delta-mobrey Vietnam,RS245SV703H02 Delta-mobrey,RS245SV703H02 Pressure Sensor,RS245SV703H02 Pressure Sensor

Đại lý Delta-mobrey Vietnam,RS245SV703H02 Delta-mobrey Vietnam,Pressure Sensor,Delta-mobrey Vietnam

RS245SV703H02 Pressure Sensor

Thiết bị RS245SV703H02 của Delta Controls là một Công tắc áp suất. Dưới đây là một số thông tin chi tiết về thiết bị:

Phạm vi áp suất: 2,5 đến 25 Bar.
Vật liệu tiếp xúc: Điểm tiếp xúc được làm từ thép không gỉ 316.
Kết nối điện: M20 x 1.5 Dual Entry.
Chứng nhận: Thiết bị được chứng nhận ZONE 1 ATEX cho các môi trường gây cháy nổ.
Nhiệt độ hoạt động: -60°C đến +80°C.
Chỉ số bảo vệ: IP66.

Model : RS245SV703H02
Pressure Sensor
R – ATEX Zone 1 flameproof Austenitic Stainless Steel enclosure Ex d IIC II 2 G D certified to CENELEC standards (Dust). Weather Protection IP66/NEMA 4X investment cast in austenitic stainless steel
S24 – Fixed Switching Differential. For maximum working
pressure consult technical data sheet.
5 – M20 X 1.5 ISO Thread Dual Entry
S – 316 Stainless steel diaphragm and process connection.All welded construction
V7 – 25 to 250 bar G
03 – Double Pole Double Throw General Purpose Precision. 5
Amps @ 110/250 Volts AC. 0.25 Amps 250 Volts DC 0.5 Amps
125 Volts DC (2 Amps @ 30 Volts DC. Not for UL/CSA).
H – 1/2-14 NPT Int. direct Process connection.
0 – No additional options required.
2 – Offshore marine
0000 – No non standard requirements

100% ỤK Origin	Delta-mobrey Vietnam	Model : RS245SV703H02 Pressure Sensor R – ATEX Zone 1 flameproof Austenitic Stainless Steel enclosure Ex d IIC II 2 G D certified to CENELEC standards (Dust). Weather Protection IP66/NEMA 4X investment cast in austenitic stainless steel S24 – Fixed Switching Differential. For maximum working pressure consult technical data sheet. 5 – M20 X 1.5 ISO Thread Dual Entry S – 316 Stainless steel diaphragm and process connection.All welded construction V7 – 25 to 250 bar G 03 – Double Pole Double Throw General Purpose Precision. 5 Amps @ 110/250 Volts AC. 0.25 Amps 250 Volts DC 0.5 Amps 125 Volts DC (2 Amps @ 30 Volts DC. Not for UL/CSA). H – 1/2-14 NPT Int. direct Process connection. 0 – No additional options required. 2 – Offshore marine 0000 – No non standard requirements
100% ỤK Origin	Delta-mobrey Vietnam	Model : HS212SDE03H02 Pressure Sensor H – ATEX Zone 1 flameproof aluminium enclosure Ex d IIC II 2 G D certified to CENELEC standards. Weather Protection IP66/NEMA 4X Gravity Die-Cast in Aluminium LM25. S21 – Fixed Switching Differential. For applications up to 100 bar/1500 PSI. For maximum working pressure consult technical data sheet. 2 – 1/2 NPT Internal Thread S – 316 Stainless steel diaphragm and process connection.All welded construction DE – 1 to 6 bar G 03 – Double Pole Double Throw General Purpose Precision. 5 Amps @ 110/250 Volts AC. 0.25 Amps 250 Volts DC 0.5 Amps 125 Volts DC (2 Amps @ 30 Volts DC. Not for UL/CSA). H – 1/2-14 NPT Int. direct Process connection. 0 – No additional options required. 2 – Offshore marine 0000 – No non standard requirements
100% ỤK Origin	Delta-mobrey Vietnam	Certificate of Quality & Quantity (1 original) Certificate Test and Conformity (1 original)
100% ỤK Origin	Delta-mobrey Vietnam	Certificate of Origin by Chamber of Commerce (Wet Stamped – 1 original
