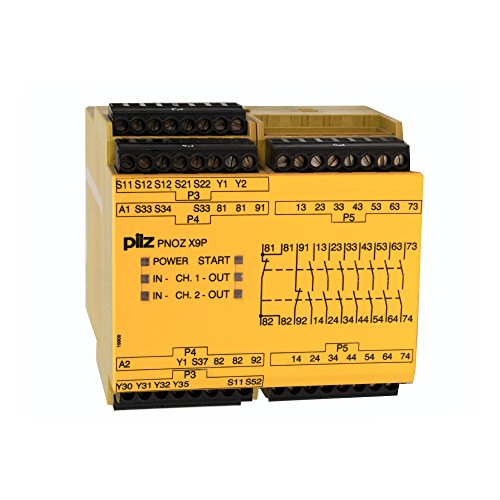

Pilz Vietnam,Safety relay PNOZ X9P C 24VDC 7n/o 2n/c 2so Pilz

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 7 N/O, 2 N/C,2 SC automatic/monitored start, UB = 24 V DC, width: 90 mm, plug-in screw terminals, monitoring of E-STOP, safety gates, light curtain.

Technical details General data Approval: CCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV Technical data Electrical data Supply voltage (V): 24 – 24 V Type of supply voltage U1: DC Power consumption DC: 5.5 W Inputs Number of inputs: 2 Semiconductor outputs Number of semicond. outputs: 2 Tolerance ext. volt. DC S/C: -20 %/+20 % Utilisation cat. to EN 60947-1: DC-12 Relay outputs Utilisation cat. AC/DC1 stand.: EN 60947-4-1 Voltage AC1 safety cont.: 240 V Max. current AC1 safety cont.: 8 A Voltage DC1 safety cont.: 24 V Max. current DC1 safety cont.: 8 A Utilisation cat. AC15/DC13sta.: EN 60947-5-1
