SolarCube – Solar Tracker Controller
- Easy-to-configure Solar Tracker Controller
- 240 x 128 Monochrome LCD Display
- High Resolution Resistive Touch Screen
- MicroSD™ Data storage
- Real Time Clock
- 1 CAN Port, 2 RS-232 / RS-485
- IP65 (NEMA4X)
- 10 – 30 VDC Power Supply
Ordering Codes
| Part Number | Description |
| SOLARCUBE-1AX | Configurable dual axes solar tracker controller |
| COMPASS-485-15M | 3 axes digital compass |
Technical Specifications
| General Specifications | |
| Required Power (Steady State) | 84mA @ 24VDC |
| Required Power (Inrush) | 30A for 1ms @ 24VDC |
| Primary Voltage Range | 10-30VDC |
| Relative Humidity | 5 to 95% Non-Condensing |
| Clock Accuracy | +/-90 Seconds per month at 20°C |
| Operating Air Temperature | -10°C to +60°C |
| Storage Temperature | 20°C to +70°C |
| Weight | 0.340kg |
| Approvals | cUL, UL, CE, FCC |
| Display Specifications | |
| Display Type | Transreflective Touchscreen LCD (outdoor readable) |
| Resolution | 160 x 128 |
| Colour | Monochrome |
| Backlight | LED – 30,000 hour life |
| Touchscreen Life & Type | 1 million touch+; Resistive Type |
| Screen Update Rate | User configurable within the scan time (perceived as instantaneous in many cases) |
| Connectivity | |
| Serial Ports | 1 RS-232 or 1 RS-485 on first modular jack (MJ1) 1 RS-232 or 1 RS-485 on second modular jack (MJ2) |
| USB mini-B | USB 2.0 (480MHz) Programming & Data Access |
| CAN | Remote I/O, Peer-to-Peer Comms, i3 Configurator |
| Removable Memory | MicroSD™ (support for 32GB max) Application updates, Datalogging, more |
| Audio | Beeper (system/software controlled) |
NOTE: Please refer to the Setup & Installation Manual on the www.imopc.com website for full details.

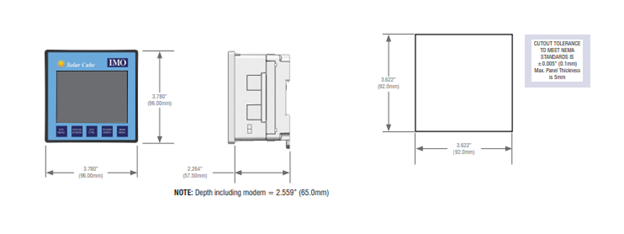

Dimensions & Panel Cutout
