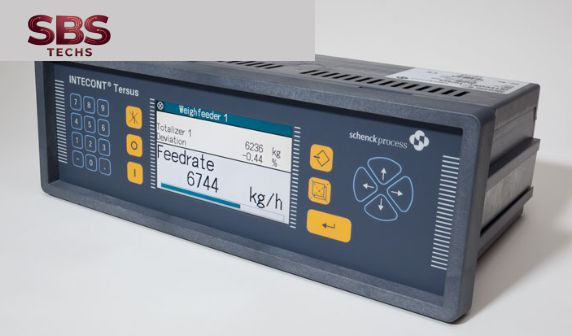

INTECONT Tersus – Mass flow rate measurement
INTECONT Tersus for Measuring Systems
SBS hiện đang là Đại lý nhập khẩu và phân phối dòng thiết bị INTECONT Tersus Schenck Process tại thị trường Việt Nam. Hãy gọi điện cho chúng tôi để được tư vấn và báo giá!
Thông số kỹ thuật
| Display | Graphical LCD display, adjustable brightness |
| Keyboard | 22 keys |
| Power supply | 24 VDC +50 % / -25 %, max. 20 VA |
| Temperatures | Operating temperature: -40 °C … +60 °C Storage temperature: -40 °C … +80 °C Legal-for-trade operating temperature: -10 °C … +40 °C |
| Load cell input | Power supply:6 VAC Load cell impedance:R min 80 Ω Cable length:max. 1000 m |
| Housing | Panel mount, optional clamps for IP65 |
| Binary inputs | 5 x Optocoupler 18 … 36 VDC, typ. 5 mA 1 x NAMUR and 1 x NAMUR/Power 0,04 … 3000 Hz |
| Binary outputs | 8 x Relays, max. 230 V, 8 A ohm. / 1 A inductive load |
| Pulse output | 1 x Optocoupler for the totalizing counter 24 V, 0,1 A, max. 10 Hz |
| Analog outputs | 2 x 0(4) … 20 mA, load max. 500 Ω |
| Analog input | 0(4) … 20 mA, input impedance 100 Ω, or 0 … 10 V |
| Serial Connections | Interface 1: EasyServe Interface 2: Printer Interface 3: Large display |
| Power supply VNT0650 Internal (optional) | 85 … 264 VAC / 24 VDC, 1,1 A |
| Fieldbus (optional) | Selectable: Modbus, PROFIBUS DP, DeviceNet, Ethernet/IP |
| Analog board (optional) VEA 20451 | 2 Analog outputs 0(4 … 20 mA, load max. 500 Ω, potential free, common reference 2 Analog inputs 0(4) … 20 mA, input impedance 100 Ω, potential free, common reference |
| Wall housing | Wall housing IP65, 380 mm x 300 mm x 236 mm Netzteil 85 … 264 VAC / 24 VDC, 2 A |
| Power supply | 85 … 264 VAC / 24 VDC, 2 A, Panel mount unit |
| Power supply | 85 … 264 VAC / 24 VDC, 1,25 A, Tabletop device |
| Event printer | Printer with serial interface RS232 and system cable |
| Large displays | Selectable: VLD 20100 (LED, 100 mm); VLZ 20045 (LCD, 45 mm); VLZ 20100 (LCD, 100 mm) |
Equipment supplied
| Designation | Type | Material number |
| Front-of-panel unit with software VBW 20650 for beltweigher | VEG 20650 | |
| Front-of-panel unit | V082002.B01 | |
| Front-of-panel unit with option Modbus | V082002.B02 | |
| Front-of-panel unit with option PROFIBUS | V082002.B03 | |
| Front-of-panel unit with option DeviceNet | V082002.B04 | |
| Front-of-panel unit with option Ethernet/IP | V082002.B05 | |
| Front-of-panel unit with software VBW 20660 for legal-for-trade beltweigher | VEG 20650 | |
| Front-of-panel unit | V082002.B31 | |
| Front-of-panel unit with option Modbus | V082002.B32 | |
| Front-of-panel unit with option PROFIBUS | V082002.B33 | |
| Front-of-panel unit with option DeviceNet | V082002.B34 | |
| Front-of-panel unit with option Ethernet/IP | V082002.B35 | |
| Communication modules | ||
| Modbus | VSS 28020 | V081902.B01 |
| PROFIBUS | VPB 28020 | V081901.B01 |
| DeviceNet | VCB 28020 | V081903.B01 |
| Ethernet/IP (software activation key) | VET 20700 | V040035.B01 |
| Options | ||
| Power supply for assembly inside the device | VNT0650 | V082050.B01 |
| Analog board with 2 analog inputs and 2 analog outputs | VEA 20451 | V054098.B01 |
| Protection class IP65 to front panel (set of clamps) | V082039.B01 | |
| Software | ||
| EasyServe | VPC 20150 | E144541.01 |
| Large displays | ||
| Large display 5-digit, LED, 100 mm digit height | VLD 20100 | V090252.B01 |
| Large display 6-digit, LCD, 45 mm digit height | VLZ 20045 | V067304.B01 |
| Large display 5-digit, LCD, 100 mm digit height | VLZ 20100 | V066611.B01 |
