Thiết bị đo áp suất CC6010-C

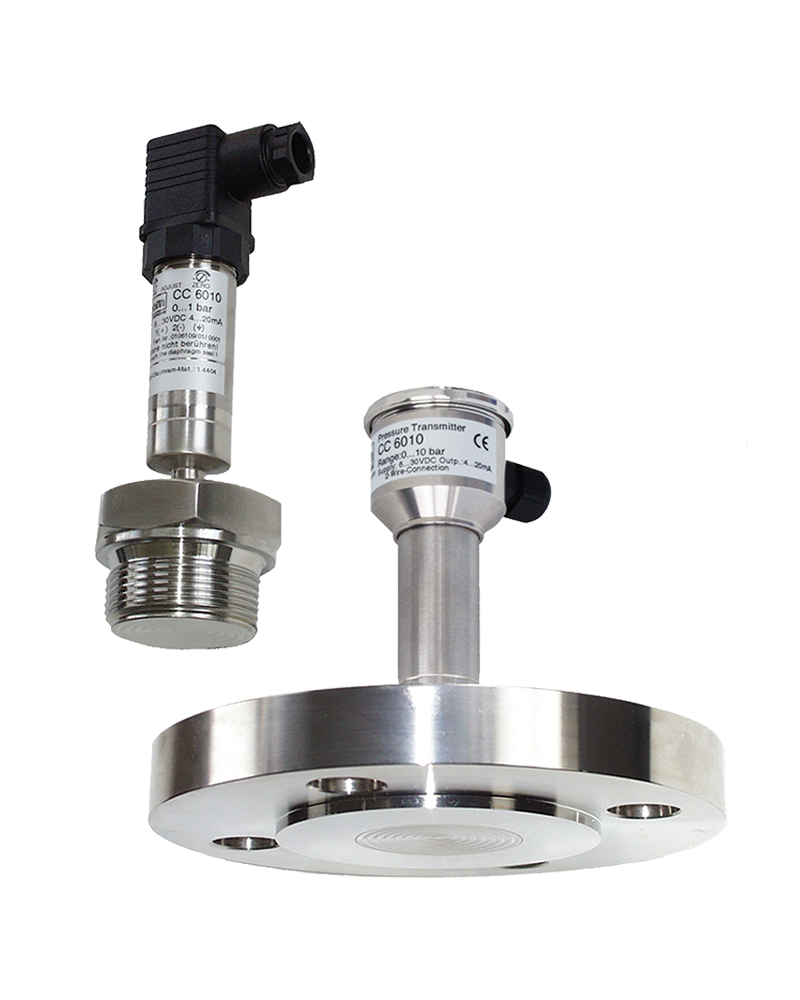

Thiết bị đo áp suất CC6010-C Labom Việt Nam
Labom Việt Nam
PRESSURE TRANSMITTER COMPACT – CHEMICAL / PETROCHEMICAL INDUSTRY CC6010-C Labom Việt Nam
Features
- Measuring ranges 0…250 mbar up to 0…400 bar
- Linearity error including hysteresis <+ 0.2 % f.s.
- Piezoresistive measuring system
- Separating foil from stainless steel or special materials
- Completely encapsulated electronics
- Further features
Options
- Explosion protection for gases
- Classification per SIL2
- Inspection certificate material certificat as per DIN EN 10204-3.1
TECHNICAL DATA
Constructional design / case
Design: | – fiel housing IP 65 or IP 67, with cable gland – right-angle plug per DIN EN 175301-803-A (DIN 43650 Form A), IP 65 – cable connection, IP 67 – circular connector M12, IP 65 |
case material stainless steel | |
union nut: polyamide (with plug connector or cable connection for electr. connection) electronics encapsulated with silicone. | |
Inner chamber aeration for measuring ranges < 16 bar over case thread or connection cable (depending on design) | |
Process connection: | see order code for variants material-Nr.: 1.4404 (316L) for the sleeves |
Temperature ranges: | – ambient temperature range: -25…+70 °C – storage temperature range: -10…+90 °C process temperature: see order details |
Measuring ranges/overrange limits: | see order details intermediate measuring ranges upon request |
Response time: | ≤ 20 ms |
Measuring accuracy: | see data sheet |
Auxiliary energy supply: | standard design: – nominal voltage 24 V DC – function range 6…30 V DC – max. allowable operating voltage 30 V DC |
Supply voltage influenc: | ≤ 0.01 % f.s. / V |
Output signal: | 4…20 mA, 2-wire technology 0…20 mA, 3-wire technology 4…20 mA, 3-wire technology 0…10 V, 3-wire technology |
Current limitation in output signal: | max. output current approx. 30 mA |
Adjusting range: | approx. ± 5 % f.s.; zero point and measuring span separately adjustable |
Burden: | 2-wire circuitry standard design Ra = UB-6V / 20 mA (KOhm) UB = operating voltage Ra = max. permissible burden resistance (incl. lead) |
Functional safety: | EN 61508, classificatio per SIL 2,TÜV-Reg.-No. 44 799 13190204 |
Burden influenc: | or 500 ohm burden change: ≤ 0.1 % f.s. |
Weights (without diaphragm seal): | – fiel housing: approx. 460 g – case with connector: approx. 200 g |
Installation position: | any |
EMC test: | – noise immunity according to EN 50082 section 2, version March 1995 issue for industry – emitted interference according to EN 50081section 1, 1993 issue for residential and industrial areas |
Device emits no radiation of its own |
Tests and certificates
See documents |
Type series
CC6010-C, CC6011-C, CC6020-C, CC6021-C |
