• Casing: Models 0M0, 01, 02, 03, 05 – Pressure die cast ZL16 zinc alloy. Models 07, 08, 09, 10, 12, 14, 15, 16, 18, 20, 30, 60 – Die cast or sand cast aluminium alloy.

• Vane & Output Shaft: Models 0M0, 01, 02, 03, 05 – Stainless steel. Models 07 to 60 – SG iron, zinc plated.

• Shaft bushes: PTFE coated bronze.

• Seals: Moulded polyurethane. High and low temperature seals also available – contact Kinetrol.

• Seal expanders: Stainless spring steel.

• Couplings: Weldable mild steel, zinc plated.

• Working temperature range: Standard: -40°C (-40°F) to +80°C (176°F). High temperature option: -20°C (-4°F) to +100°C (212°F) using temperature seals; for higher temperatures with special equipment – contact Kinetrol. Low temperature option: -54°C (-65°F) to +60°C (140°F) using temperature seals, include option “W” at end of actuator coding. Contact Kinetrol for Atex Approval rating.

• Maximum recommended working pressure: 100 psi (7 bar).

• Maximum overload pressure: 150 psi (10 bar).

Options

All of Kinetrol’s modular options provides the functionality and control you need in an easy to mount, space savings package. Option packages include:

• Limit switch boxes for open/close indication – various switches for hazardous areas

• Solenoid valve

• Fail Safe Spring Return Unit

• AP pneumatic positioner

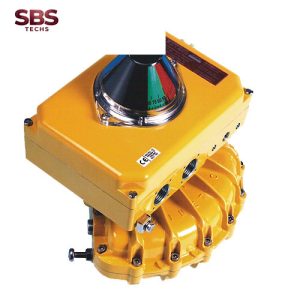

• EL electropneumatic positioner

• P3 on/off positioner including hazardous areas

• Clear Cone position monitor

• Female drive spring

• ISO adaptor

• Spring to center

• Geared manual override
