Belt Driven Modular Linear Actuators nook industries

Được thiết kế cho tốc độ cao với khoảng cách xa. Hoàn hảo cho các nhiệm vụ định vị và xử lý nhanh với yêu cầu bảo trì thấp.

Bộ truyền động mô-đun dẫn động bằng dây đai có một lợi thế riêng biệt do khả năng được sản xuất với hầu như bất kỳ chiều dài nào. Các mô hình bộ truyền động dẫn động bằng dây đai bao gồm các sắp xếp dây đai bên ngoài, bị kẹt hoặc bên trong. Dây đai được làm bằng vật liệu thép có độ căng cao, chỉ cần điều chỉnh một lần sau khi sử dụng ban đầu. Không cần căng thêm nữa. Các ròng rọc có ổ bi không cần bảo dưỡng.

Có sẵn cho môi trường phòng sạch và chống cháy nổ.

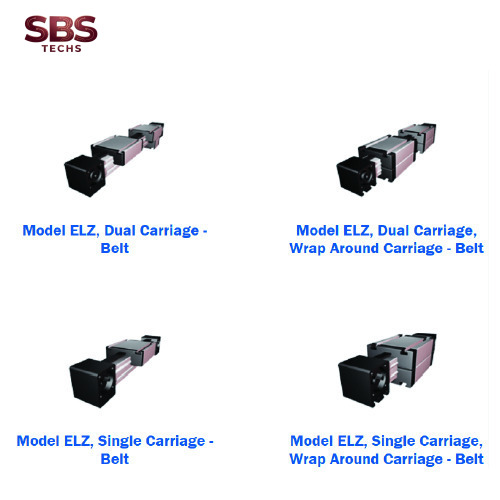

External Belt Driven

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZ 30 Dual Carriage	30	2	180	60	60	5	6	7	200	90	90	10	13	14
ELZ 40 Dual Carriage	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELZ 60 Dual Carriage	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELZ 60S Dual Carriage	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELZ 80 Dual Carriage	80	7	800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELZ 80S Dual Carriage	80 S	6	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELZ 100 Dual Carriage	100	8	1800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELZ 125 Dual Carriage	125	10	3800	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZ 30 WAC Dual Carriage	30	2	180	60	60	5	6	7	200	90	90	10	13	14
ELZ 40 WAC Dual Carriage	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELZ 60 WAC Dual Carriage	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELZ 60S WAC Dual Carriage	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELZ 80 WAC Dual Carriage	80	7	800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELZ 80S WAC Dual Carriage	80 S	6	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELZ 100 WAC Dual Carriage	100	8	1800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELZ 125 WAC Dual Carriage	125	10	3800	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZ 30	30	2	180	60	60	5	6	7	200	90	90	10	13	14
ELZ 40	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELZ 60	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELZ 60S	60 S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELZ 80	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELZ 80S	80 S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELZ 100	100	10	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELZ 125	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZ 30 WAC	30	2	180	60	60	5	6	7	200	90	90	10	13	14
ELZ 40 WAC	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELZ 60 WAC	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELZ 60S WAC	60 S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELZ 80 WAC	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELZ 80S WAC	80 S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELZ 100 WAC	100	10	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELZ 125 WAC	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 40	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELSZ 60	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSZ 60S	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSZ 80	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSZ 80S	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSZ 100	100	8	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELSZ 125	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 40 Extended Carriage	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELSZ 60 Extended Carriage	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSZ 60S Extended Carriage	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSZ 80 Extended Carriage	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSZ 80S Extended Carriage	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSZ 100 Extended Carriage	100	8	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELSZ 125 Extended Carriage	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 40 WAC	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELSZ 60 WAC	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSZ 60S WAC	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSZ 80 WAC	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSZ 80S WAC	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSZ 100 WAC	100	8	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELSZ 125 WAC	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 40 WAC Extended Carriage	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELSZ 60 WAC Extended Carriage	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSZ 60S WAC Extended Carriage	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSZ 80 WAC Extended Carriage	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSZ 80S WAC Extended Carriage	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSZ 100 WAC Extended Carriage	100	8	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750
ELSZ 125 WAC Extended Carriage	125	10	5750	9000	4500	450	600	1150	5900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 30 Wide Belt	30	2	350	60	60	5	6	7	390	90	90	10	13	14
ELSZ 40 Wide Belt	40	4	800	700	650	20	18	25	894	1200	900	25	32	35
ELSZ 60 Wide Belt	60	5	1800	2000	1100	43	70	100	1700	3000	1700	67	90	120
ELSZ 60S Wide Belt	60S	5	1800	3100	1600	65	140	170	1700	4100	2160	88	190	230
ELSZ 80 Wide Belt	80	6	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSZ 80S Wide Belt	80S	8	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSZ 100 Wide Belt	100	8	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750
ELSZ 125 Wide Belt	125	10	7500	9000	4500	450	600	1150	7900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 30 Wide Belt Extended Carriage	30	2	350	60	60	5	6	7	390	90	90	10	13	14
ELSZ 40 Wide Belt Extended Carriage	40	4	800	700	650	20	18	25	894	1200	900	25	32	35
ELSZ 60 Wide Belt Extended Carriage	60	5	1800	2000	1100	43	70	100	1700	3000	1700	67	90	120
ELSZ 60S Wide Belt Extended Carriage	60S	5	1800	3100	1600	65	140	170	1700	4100	2160	88	190	230
ELSZ 80 Wide Belt Extended Carriage	80	6	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSZ 80S Wide Belt Extended Carriage	80S	8	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSZ 100 Wide Belt Extended Carriage	100	8	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750
ELSZ 125 Wide Belt Extended Carriage	125	10	7500	9000	4500	450	600	1150	7900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 30 WAC Wide Belt	30	2	350	60	60	5	6	7	390	90	90	10	13	14
ELSZ 40 WAC Wide Belt	40	4	800	700	650	20	18	25	894	1200	900	25	32	35
ELSZ 60 WAC Wide Belt	60	5	1800	2000	1100	43	70	100	1700	3000	1700	67	90	120
ELSZ 60S WAC Wide Belt	60S	5	1800	3100	1600	65	140	170	1700	4100	2160	88	190	230
ELSZ 80 WAC Wide Belt	80	6	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSZ 80S WAC Wide Belt	80S	8	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSZ 100 WAC Wide Belt	100	8	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750
ELSZ 125 WAC Wide Belt	125	10	7500	9000	4500	450	600	1150	7900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSZ 30 WAC Wide Belt Extended Carriage	30	2	350	60	60	5	6	7	390	90	90	10	13	14
ELSZ 40 WAC Wide Belt Extended Carriage	40	4	800	700	650	20	18	25	894	1200	900	25	32	35
ELSZ 60 WAC Wide Belt Extended Carriage	60	5	1800	2000	1100	43	70	100	1700	3000	1700	67	90	120
ELSZ 60S WAC Wide Belt Extended Carriage	60S	5	1800	3100	1600	65	140	170	1700	4100	2160	88	190	230
ELSZ 80 WAC Wide Belt Extended Carriage	80	6	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSZ 80S WAC Wide Belt Extended Carriage	80S	8	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSZ 100 WAC Wide Belt Extended Carriage	100	8	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750
ELSZ 125 WAC Wide Belt Extended Carriage	125	10	7500	9000	4500	450	600	1150	7900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40	40	4	50	5	350	700	650	20	18	25	390	1200	900	25	32	35
ELSD 60	60	5	150	10	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSD 60S	60S	7	150	10	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSD 80	80	6	250	20	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSD 80S	80S	8	250	20	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSD 100	100	8	400	30	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 Extended Carriage	40	4	50	5	350	700	650	20	18	25	390	1200	900	25	32	35
ELSD 60 Extended Carriage	60	5	150	10	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSD 60S Extended Carriage	60S	7	150	10	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSD 80 Extended Carriage	80	6	250	20	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSD 80S Extended Carriage	80S	8	250	20	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSD 100 Extended Carriage	100	8	400	30	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 WAC	40	4	50	5	350	700	650	20	18	25	390	1200	900	25	32	35
ELSD 60 WAC	60	5	150	10	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSD 60S WAC	60S	7	150	10	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSD 80 WAC	80	6	250	20	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSD 80S WAC	80S	8	250	20	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSD 100 WAC	100	8	400	30	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 WAC Extended Carriage	40	4	50	5	350	700	650	20	18	25	390	1200	900	25	32	35
ELSD 60 WAC Extended Carriage	60	5	150	10	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELSD 60S WAC Extended Carriage	60S	7	150	10	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELSD 80 WAC Extended Carriage	80	6	250	20	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELSD 80S WAC Extended Carriage	80S	8	250	20	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
ELSD 100 WAC Extended Carriage	100	8	400	30	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 Wide Belt	40	4	50	5	800	700	650	20	18	25	894	1200	900	25	32	35
ELSD 60 Wide Belt	60	5	150	10	1800	2000	1100	43	70	100	1900	3000	1700	67	90	120
ELSD 60S Wide Belt	60S	7	150	10	1800	3100	1600	65	140	170	1900	4100	2160	88	190	230
ELSD 80 Wide Belt	80	6	250	20	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSD 80S Wide Belt	80S	8	250	20	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSD 100 Wide Belt	100	8	400	30	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 Wide Belt Extended Carriage	40	4	50	5	800	700	650	20	18	25	894	1200	900	25	32	35
ELSD 60 Wide Belt Extended Carriage	60	5	150	10	1800	2000	1100	43	70	100	1900	3000	1700	67	90	120
ELSD 60S Wide Belt Extended Carriage	60S	7	150	10	1800	3100	1600	65	140	170	1900	4100	2160	88	190	230
ELSD 80 Wide Belt Extended Carriage	80	6	250	20	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSD 80S Wide Belt Extended Carriage	80S	8	250	20	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSD 100 Wide Belt Extended Carriage	100	8	400	30	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 WAC Wide Belt	40	4	50	5	800	700	650	20	18	25	894	1200	900	25	32	35
ELSD 60 WAC Wide Belt	60	5	150	10	1800	2000	1100	43	70	100	1900	3000	1700	67	90	120
ELSD 60S WAC Wide Belt	60S	7	150	10	1800	3100	1600	65	140	170	1900	4100	2160	88	190	230
ELSD 80 WAC Wide Belt	80	6	250	20	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSD 80S WAC Wide Belt	80S	8	250	20	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSD 100 WAC Wide Belt	100	8	400	30	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fd [N]	Mr [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELSD 40 WAC Wide Belt Extended Carriage	40	4	50	5	800	700	650	20	18	25	894	1200	900	25	32	35
ELSD 60 WAC Wide Belt Extended Carriage	60	5	150	10	1800	2000	1100	43	70	100	1900	3000	1700	67	90	120
ELSD 60S WAC Wide Belt Extended Carriage	60S	7	150	10	1800	3100	1600	65	140	170	1900	4100	2160	88	190	230
ELSD 80 WAC Wide Belt Extended Carriage	80	6	250	20	3800	2000	1100	55	80	120	4000	3000	1700	90	110	150
ELSD 80S WAC Wide Belt Extended Carriage	80S	8	250	20	3800	3600	1800	140	230	220	4000	4600	3000	170	270	300
ELSD 100 WAC Wide Belt Extended Carriage	100	8	400	30	5750	6500	2200	230	270	500	5900	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZZ 60	60	5	250	2000	1100	43	70	100	298	3000	1700	67	90	120
ELZZ 60S	60S	5	250	3100	1600	65	140	170	298	4100	2160	88	190	230
ELZZ 80	80	6	500	2000	1100	55	80	120	679	3000	1700	90	110	150
ELZZ 80S	80S	8	500	3600	2600	140	230	220	679	4600	3000	170	270	300
ELZZ 100	100	10	1100	6500	2200	230	270	500	1210	8000	3600	300	400	750
ELZZ 125	125	10	1800	9000	4500	450	600	1150	1900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZZ 60 WAC	60	5	250	2000	1100	43	70	100	298	3000	1700	67	90	120
ELZZ 60S WAC	60S	5	250	3100	1600	65	140	170	298	4100	2160	88	190	230
ELZZ 80 WAC	80	6	500	2000	1100	55	80	120	679	3000	1700	90	110	150
ELZZ 80S WAC	80S	8	500	3600	2600	140	230	220	679	4600	3000	170	270	300
ELZZ 100 WAC	100	10	1100	6500	2200	230	270	500	1210	8000	3600	300	400	750
ELZZ 125 WAC	125	10	1800	9000	4500	450	600	1150	1900	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fy dynamic [N]	Fx dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZT 40	40	4	700	600	650	20	18	285	360	1200	900	25	32	35
ELZT 60	60	5	2000	470	1100	43	70	100	580	3000	1700	67	90	120
ELZT 60S	60S	7	310	470	1600	65	140	170	580	4100	2160	88	190	230
ELZT 80	80	6	2000	660	1100	55	80	120	825	3000	1700	90	110	150
ELZT 80S	80S	5	3600	660	1800	140	230	220	825	4600	3000	170	270	300
ELZT 100	100	8	6500	3500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fy dynamic [N]	Fx dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZT 40 Extended Carriage	40	4	700	600	650	20	18	285	360	1200	900	25	32	35
ELZT 60 Extended Carriage	60	5	2000	470	1100	43	70	100	580	3000	1700	67	90	120
ELZT 60S Extended Carriage	60S	7	310	470	1600	65	140	170	580	4100	2160	88	190	230
ELZT 80 Extended Carriage	80	6	2000	660	1100	55	80	120	825	3000	1700	90	110	150
ELZT 80S Extended Carriage	80S	5	3600	660	1800	140	230	220	825	4600	3000	170	270	300
ELZT 100 Extended Carriage	100	8	6500	3500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fy dynamic [N]	Fx dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZT 40 Extended Carriage Low Profile Extension	40	4	700	600	650	20	18	285	360	1200	900	25	32	35
ELZT 60 Extended Carriage Low Profile Extension	60	5	2000	470	1100	43	70	100	580	3000	1700	67	90	120
ELZT 60S Extended Carriage Low Profile Extension	60S	7	310	470	1600	65	140	170	580	4100	2160	88	190	230
ELZT 80 Extended Carriage Low Profile Extension	80	6	2000	660	1100	55	80	120	825	3000	1700	90	110	150
ELZT 80S Extended Carriage Low Profile Extension	80S	5	3600	660	1800	140	230	220	825	4600	3000	170	270	300
ELZT 100 Extended Carriage Low Profile Extension	100	8	6500	3500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fy dynamic [N]	Fx dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZT 40 Extended Carriage Standard Extension	40	4	700	600	650	20	18	285	360	1200	900	25	32	35
ELZT 60 Extended Carriage Standard Extension	60	5	2000	470	1100	43	70	100	580	3000	1700	67	90	120
ELZT 60S Extended Carriage Standard Extension	60S	7	310	470	1600	65	140	170	580	4100	2160	88	190	230
ELZT 80 Extended Carriage Standard Extension	80	6	2000	660	1100	55	80	120	825	3000	1700	90	110	150
ELZT 80S Extended Carriage Standard Extension	80S	5	3600	660	1800	140	230	220	825	4600	3000	170	270	300
ELZT 100 Extended Carriage Standard Extension	100	8	6500	3500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Drive Torque Maximum [Nm]	Mz dynamic [Nm]	Mz static [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]
ELFZ 60S	60S	4	48	340	460	3200	6200	3200	130	280	3600	6200	3200	176	380
ELFZ 80S	80S	4	120	440	600	5400	7200	3600	280	460	6200	9200	6000	340	540
ELFZ 100	100	4	386	1000	1500	7600	13000	4400	460	540	8700	16000	7200	600	800
ELFZ 125	125	4	500	2300	2700	10400	18000	9000	900	1200	12000	24000	12000	1200	1500

Product	Size	Speed Maximum [m/s]	Drive Torque Maximum [Nm]	Mz dynamic [Nm]	Mz static [Nm]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]
ELFZ 60S Extended Carriage	60S	4	48	340	460	3200	6200	3200	130	280	3600	6200	3200	176	380
ELFZ 80S Extended Carriage	80S	4	120	440	600	5400	7200	3600	280	460	6200	9200	6000	340	540
ELFZ 100 Extended Carriage	100	4	386	1000	1500	7600	13000	4400	460	540	8700	16000	7200	600	800
ELFZ 125 Extended Carriage	125	4	500	2300	2700	10400	18000	9000	900	1200	12000	24000	12000	1200	1500

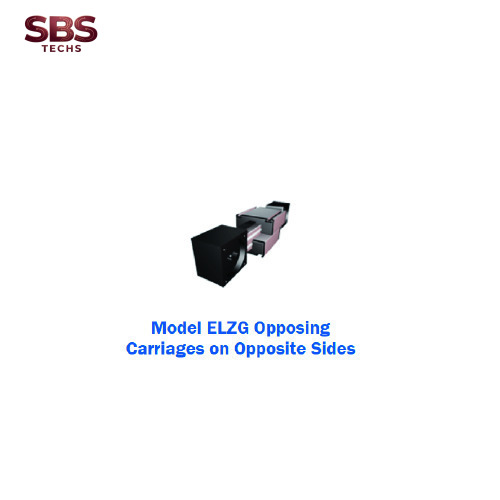

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELZG 30	30	2	180	60	60	5	6	7	200	90	90	10	13	14
ELZG 40	40	4	350	700	650	20	18	25	390	1200	900	25	32	35
ELZG 60	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
ELZG 60S	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
ELZG 80	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
ELZG 80S	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELHZ 60	60	3	580	2000	1100	43	70	100	700	3000	1700	67	90	120
ELHZ 60S	60S	4	580	3100	1600	65	140	170	700	4100	2160	88	190	230
ELHZ 80	80	4	840	2000	1100	55	80	120	1000	3000	1700	90	110	150
ELHZ 80S	80 S	4	840	3600	1800	140	230	200	1000	4600	3000	170	270	300
ELHZ 100	100	5	2600	6500	2200	230	270	500	3100	8000	3600	300	400	750
ELHZ 125	125	6	4950	9000	4500	450	600	1150	5000	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELHZ 60 WAC	60	3	580	2000	1100	43	70	100	700	3000	1700	67	90	120
ELHZ 60S WAC	60S	4	580	3100	1600	65	140	170	700	4100	2160	88	190	230
ELHZ 80 WAC	80	4	840	2000	1100	55	80	120	1000	3000	1700	90	110	150
ELHZ 80S WAC	80 S	4	840	3600	1800	140	230	200	1000	4600	3000	170	270	300
ELHZ 100 WAC	100	5	2600	6500	2200	230	270	500	3100	8000	3600	300	400	750
ELHZ 125 WAC	125	6	4950	9000	4500	450	600	1150	5000	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELVZ 60 Dual Carriage	60	3	580	2000	1100	43	70	100	700	3000	1700	67	90	120
ELVZ 60S Dual Carriage	60S	4	580	3100	1600	65	140	170	700	4100	2160	88	190	230
ELVZ 80 Dual Carriage	80	4	840	2000	1100	55	80	120	1000	3000	1700	90	110	150
ELVZ 80S Dual Carriage	80S	4	840	3600	1800	140	230	200	1000	4600	3000	170	270	300
ELVZ 100 Dual Carriage	100	5	2600	6500	2200	230	270	500	3100	8000	3600	300	400	750
ELVZ 125 Dual Carriage	125	6	4950	9000	4500	450	600	1150	5000	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELVZ 60	60	3	580	2000	1100	43	70	100	700	3000	1700	67	90	120
ELVZ 60S	60S	4	580	3100	1600	65	140	170	700	4100	2160	88	190	230
ELVZ 80	80	4	840	2000	1100	55	80	120	1000	3000	1700	90	110	150
ELVZ 80S	80S	4	840	3600	1800	140	230	200	1000	4600	3000	170	270	300
ELVZ 100	100	5	2600	6500	2200	230	270	500	3100	8000	3600	300	400	750
ELVZ 125	125	6	4950	9000	4500	450	600	1150	5000	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELVZ 60 WAC	60	3	580	2000	1100	43	70	100	700	3000	1700	67	90	120
ELVZ 60S WAC	60S	4	580	3100	1600	65	140	170	700	4100	2160	88	190	230
ELVZ 80 WAC	80	4	840	2000	1100	55	80	120	1000	3000	1700	90	110	150
ELVZ 80S WAC	80S	4	840	3600	1800	140	230	200	1000	4600	3000	170	270	300
ELVZ 100 WAC	100	5	2600	6500	2200	230	270	500	3100	8000	3600	300	400	750
ELVZ 125 WAC	125	6	4950	9000	4500	450	600	1150	5000	12000	6000	600	750	1350

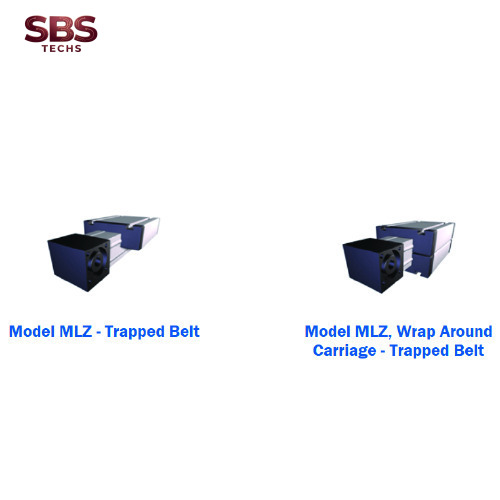

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
MLZ 60	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
MLZ 60S	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
MLZ 80	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
MLZ 80S	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
MLZ 100	100	10	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
MLZ 60 WAC	60	5	800	2000	1100	43	70	100	894	3000	1700	67	90	120
MLZ 60S WAC	60S	7	800	3100	1600	65	140	170	894	4100	2160	88	190	230
MLZ 80 WAC	80	6	1800	2000	1100	55	80	120	1900	3000	1700	90	110	150
MLZ 80S WAC	80S	8	1800	3600	1800	140	230	220	1900	4600	3000	170	270	300
MLZ 100 WAC	100	10	3800	6500	2200	230	270	500	4000	8000	3600	300	400	750

Internal Roller Bearing Guided

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLZ 60	60	4	800	500	650	10	50	40	894	600	900	15	60	40
QLZ 80	80	6	800	1240	1200	40	80	60	894	1600	1500	50	100	75
QLZ 100	100	7	3800	1500	1700	60	110	90	4000	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLZ 60 Extended Carriage	60	4	800	500	650	10	50	40	894	600	900	15	60	40
QLZ 80 Extended Carriage	80	6	800	1240	1200	40	80	60	894	1600	1500	50	100	75
QLZ 100 Extended Carriage	100	7	3800	1500	1700	60	110	90	4000	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLZ 60 Extended Carriage 4 Split Rollers	60	4	800	500	650	10	50	40	894	600	900	15	60	40
QLZ 80 Extended Carriage 4 Split Rollers	80	6	800	1240	1200	40	80	60	894	1600	1500	50	100	75
QLZ 100 Extended Carriage 4 Split Rollers	100	7	3800	1500	1700	60	110	90	4000	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLZ 60 Extended Carriage 4 Split Rollers	60	4	800	500	650	10	50	40	894	600	900	15	60	40
QLZ 80 Extended Carriage 4 Split Rollers	80	6	800	1240	1200	40	80	60	894	1600	1500	50	100	75
QLZ 100 Extended Carriage 4 Split Rollers	100	7	3800	1500	1700	60	110	90	4000	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLZ 60 Extended Carriage 6 Split Rollers	60	4	800	500	650	10	50	40	894	600	900	15	60	40
QLZ 80 Extended Carriage 6 Split Rollers	80	6	800	1240	1200	40	80	60	894	1600	1500	50	100	75
QLZ 100 Extended Carriage 6 Split Rollers	100	7	3800	1500	1700	60	110	90	4000	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLZ 120	120	4	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLZ 160	160	6	1800	2000	2800	320	300	150	1900	3000	3500	400	360	180
DLZ 200	200	8	3800	3100	4400	510	480	275	4000	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLZ 120 Extended Carriage	120	4	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLZ 160 Extended Carriage	160	6	1800	2000	2800	320	300	150	1900	3000	3500	400	360	180
DLZ 200 Extended Carriage	200	8	3800	3100	4400	510	480	275	4000	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLZ 120 Extended Carriage 6 Split Rollers	120	4	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLZ 160 Extended Carriage 6 Split Rollers	160	6	1800	2000	2800	320	300	150	1900	3000	3500	400	360	180
DLZ 200 Extended Carriage 6 Split Rollers	200	8	3800	3100	4400	510	480	275	4000	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLVZ 120	120	3	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLVZ 160	160	4	840	2000	2800	320	300	150	1000	3000	3500	400	360	180

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLVZ 120 Extended Carriage	120	3	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLVZ 160 Extended Carriage	160	4	840	2000	2800	320	300	150	1000	3000	3500	400	360	180

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLVZ 120 Extended Carriage 6 Split Rollers	120	3	800	900	1000	125	120	90	894	1100	1250	150	140	100
DLVZ 160 Extended Carriage 6 Split Rollers	160	4	840	2000	2800	320	300	150	1000	3000	3500	400	360	180

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLSZ 120	120	4	1800	900	1000	125	120	90	1900	1100	1250	150	140	100
DLSZ 160	160	6	3800	2000	2800	400	300	150	4000	3000	3500	125	360	180
DLSZ 200	200	8	5750	3100	4400	510	480	275	5900	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLSZ 120 Extended Carriage 8 Split Rollers	120	4	1800	900	1000	125	120	90	1900	1100	1250	150	140	100
DLSZ 160 Extended Carriage 8 Split Rollers	160	6	3800	2000	2800	400	300	150	4000	3000	3500	125	360	180
DLSZ 200 Extended Carriage 8 Split Rollers	200	8	5750	3100	4400	510	480	275	5900	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLSZ 120 Extended Carriage 6 Split Rollers	120	4	1800	900	1000	125	120	90	1900	1100	1250	150	140	100
DLSZ 160 Extended Carriage 6 Split Rollers	160	6	3800	2000	2800	400	300	150	4000	3000	3500	125	360	180
DLSZ 200 Extended Carriage 6 Split Rollers	200	8	5750	3100	4400	510	480	275	5900	4400	4900	600	560	310

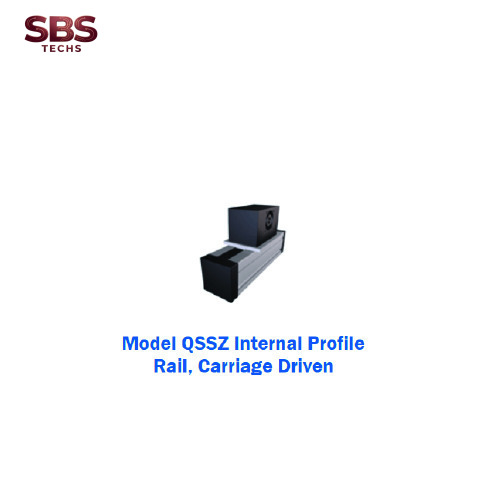

Internal Profile Rail Guided

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSZ 60	60	5	800	218	2374	14	73	70	894	274	2991	18	104	100
QSZ 80	80	5	1800	450	3933	33	222	210	1900	567	4955	41	310	296
QSZ 100	100	5	3800	727	5671	56	311	292	4000	916	7146	70	439	412

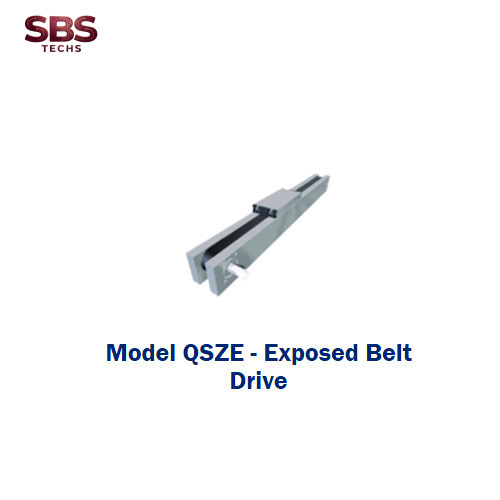

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSZE 60	60	5	800	990	2500	23	73	70	894	1410	3520	33	104	100
QSZE 80	80	5	1800	2250	6050	75	222	210	1900	3570	8500	107	310	296
QSZE 100	100	5	3800	2900	7270	101	311	292	4000	4080	10300	142	439	412

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSZ 120	120	5	800	1405	1650	64	77	76	894	1776	2090	81	97	96
DSZ 160	160	5	1800	3900	5020	255	262	258	1900	5570	7050	358	369	364
DSZ 200	200	5	3800	11080	14600	915	980	690	4000	15600	20600	1285	1375	1345

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSZ 120 Extended Carriage	120	5	800	1405	1650	64	77	76	894	1776	2090	81	97	96
DSZ 160 Extended Carriage	160	5	1800	3900	5020	255	262	258	1900	5570	7050	358	369	364
DSZ 200 Extended Carriage	200	5	3800	11080	14600	915	980	690	4000	15600	20600	1285	1375	1345

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km

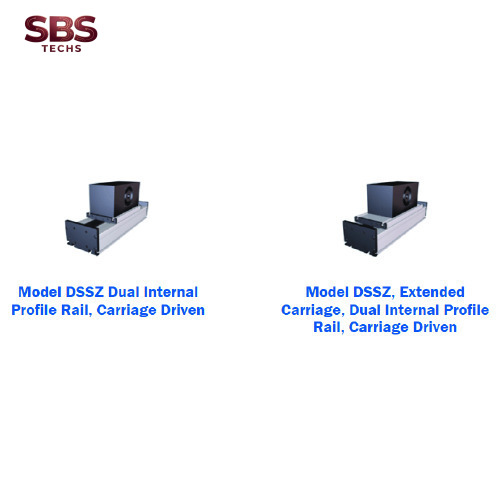

DSSZ 120	120	5	1800	1405	1650	64	77	76	1900	1776	2090	81	97	96
DSSZ 160	160	5	3800	1775	4189	224	225	238	4000	2236	5278	282	283	300
DSSZ 200	200	5	5750	11080	14600	915	960	960	5900	15600	14600	1285	1375	1345

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSSZ 120 Extended Carriage	120	5	1800	1405	1650	64	77	76	1900	1776	2090	81	97	96
DSSZ 160 Extended Carriage	160	5	3800	1775	4189	224	225	238	4000	2236	5278	282	283	300
DSSZ 200 Extended Carriage	200	5	5750	11080	14600	915	960	960	5900	15600	14600	1285	1375	1345

V Groove Guided

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGZ 30	30	2	180	60	60	5	6	7	200	90	90	10	13	14
EGZ 40	40	2	350	315	450	18	40	30	390	350	500	20	44	33
EGZ 60	60	2	800	450	675	30	70	50	894	500	750	33	77	55
EGZ 80	80	2	1800	900	1000	75	200	150	1900	1000	1125	82	220	165

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
EGZ 30 WAC	30	2	180	60	60	5	6	7	200	90	90	10	13	14
EGZ 40 WAC	40	2	350	315	450	18	40	30	390	350	500	20	44	33
EGZ 60 WAC	60	2	800	450	675	30	70	50	894	500	750	33	77	55
EGZ 80 WAC	80	2	1800	900	1000	75	200	150	1900	1000	1125	82
