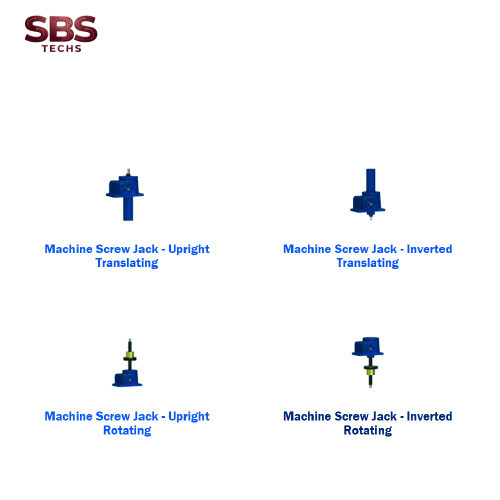

Machine Screw Jack nook industries
Tải trọng tiêu chuẩn của model từ 1/4 tấn đến 100 tấn. Tải trọng hệ mét từ 5 kN đến 200 kN.
Các loại vít nâng máy bánh răng trục vít hệ inch và hệ mét kết hợp với một trục vít hợp kim hoặc thép không gỉ dẫn động bánh răng trục vít bằng đồng có độ bền cao (ống dẫn động). Trục vít được đỡ trên ổ trục con lăn côn chống ma sát với các phớt ngoài được cung cấp để ngăn ngừa mất chất bôi trơn. Ống dẫn động được đỡ trên ổ trục con lăn côn chống ma sát hoặc ổ trục đẩy bi.
- Không có chiều dài di chuyển “chuẩn” (được chế tạo theo thông số kỹ thuật).
- Vỏ gang dẻo được định cỡ để đỡ VIỆT suất định mức của thiết bị.
- Truyền động trục vít bằng thép hợp kim với bánh răng trục vít bằng đồng có độ bền cao (ống dẫn động).
- Ổ trục con lăn côn chống ma sát với các phớt ngoài để ngăn ngừa mất chất bôi trơn.
- Ống dẫn động được đỡ trên ổ trục con lăn côn chống ma sát hoặc ổ trục đẩy bi.
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-U 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJ-25-U 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJ-40-U 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJ-50-U 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJ-80-U 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJ-100-U 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJ-160-U 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJ-200-U 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1-MSJ-U 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1-MSJ-U 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2R-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2R-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2R-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5-MSJ-U 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5-MSJ-U 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5-MSJ-U 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5-MSJ-U 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5-MSJ-U 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10-MSJ-U 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10-MSJ-U 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15-MSJ-U 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15-MSJ-U 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20-MSJ-U 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20-MSJ-U 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30-MSJ-U 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30-MSJ-U 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35-MSJ-U 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35-MSJ-U 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50-MSJ-U 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50-MSJ-U 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
ActionJac 75-MSJ-U 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0549 | 5.00 | 0.667 | 28.00 | 8236 | 214 | 18368 |
ActionJac 75-MSJ-U 32:1 | 75 | 32:1 | 48 | 0.0252 | 5.00 | 0.667 | 9.00 | 3780 | 150 | 12862 |
ActionJac 100-MSJ-U 10 2/3:1 | 100 | 10 2/3:1 | 16 | 0.0665 | 6.00 | 0.667 | 32.00 | 13166 | 153 | 17330 |
ActionJac 100-MSJ-U 32:1 | 100 | 32:1 | 48 | 0.0377 | 6.00 | 0.667 | 12.50 | 7460 | 106 | 11941 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-I 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJ-25-I 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJ-40-I 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJ-50-I 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJ-80-I 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJ-100-I 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJ-160-I 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJ-200-I 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1-MSJ-I 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1-MSJ-I 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2-MSJ-I 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2-MSJ-I 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2-MSJ-I 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2R-MSJ-I 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2R-MSJ-I 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2R-MSJ-I 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5-MSJ-I 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5-MSJ-I 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5-MSJ-I 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5-MSJ-I 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5-MSJ-I 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10-MSJ-I 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10-MSJ-I 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15-MSJ-I 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15-MSJ-I 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20-MSJ-I 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20-MSJ-I 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30-MSJ-I 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30-MSJ-I 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35-MSJ-I 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35-MSJ-I 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50-MSJ-I 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50-MSJ-I 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
ActionJac 75-MSJ-I 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0549 | 5.00 | 0.667 | 28.00 | 8236 | 214 | 18368 |
ActionJac 75-MSJ-I 32:1 | 75 | 32:1 | 48 | 0.0252 | 5.00 | 0.667 | 9.00 | 3780 | 150 | 12862 |
ActionJac 100-MSJ-I 10 2/3:1 | 100 | 10 2/3:1 | 16 | 0.0665 | 6.00 | 0.667 | 32.00 | 13166 | 153 | 17330 |
ActionJac 100-MSJ-I 32:1 | 100 | 32:1 | 48 | 0.0377 | 6.00 | 0.667 | 12.50 | 7460 | 106 | 11941 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm Per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-UR 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJ-25-UR 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJ-40-UR 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJ-50-UR 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJ-80-UR 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJ-100-UR 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJ-160-UR 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJ-200-UR 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1-MSJ-UR 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1-MSJ-UR 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2-MSJ-UR 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2-MSJ-UR 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2-MSJ-UR 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2R-MSJ-UR 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2R-MSJ-UR 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2R-MSJ-UR 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5-MSJ-UR 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5-MSJ-UR 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5-MSJ-UR 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5-MSJ-UR 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5-MSJ-UR 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10-MSJ-UR 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10-MSJ-UR 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15-MSJ-UR 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15-MSJ-UR 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20-MSJ-UR 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20-MSJ-UR 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30-MSJ-UR 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30-MSJ-UR 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35-MSJ-UR 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35-MSJ-UR 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50-MSJ-UR 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50-MSJ-UR 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
ActionJac 75-MSJ-UR 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0549 | 5.00 | 0.667 | 28.00 | 8236 | 214 | 18368 |
ActionJac 75-MSJ-UR 32:1 | 75 | 32:1 | 48 | 0.0252 | 5.00 | 0.667 | 9.00 | 3780 | 150 | 12862 |
ActionJac 100-MSJ-UR 10 2/3:1 | 100 | 10 2/3:1 | 16 | 0.0665 | 6.00 | 0.667 | 32.00 | 13166 | 153 | 17330 |
ActionJac 100-MSJ-UR 32:1 | 100 | 32:1 | 48 | 0.0377 | 6.00 | 0.667 | 12.50 | 7460 | 106 | 11941 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-IR 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJ-25-IR 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJ-40-IR 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJ-50-IR 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJ-80-IR 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJ-100-IR 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJ-160-IR 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJ-200-IR 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1-MSJ-IR 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1-MSJ-IR 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2-MSJ-IR 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2-MSJ-IR 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2-MSJ-IR 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2R-MSJ-IR 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2R-MSJ-IR 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2R-MSJ-IR 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5-MSJ-IR 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5-MSJ-IR 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5-MSJ-IR 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5-MSJ-IR 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5-MSJ-IR 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10-MSJ-IR 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10-MSJ-IR 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15-MSJ-IR 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15-MSJ-IR 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20-MSJ-IR 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20-MSJ-IR 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30-MSJ-IR 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30-MSJ-IR 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35-MSJ-IR 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35-MSJ-IR 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50-MSJ-IR 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50-MSJ-IR 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
ActionJac 75-MSJ-IR 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0549 | 5.00 | 0.667 | 28.00 | 8236 | 214 | 18368 |
ActionJac 75-MSJ-IR 32:1 | 75 | 32:1 | 48 | 0.0252 | 5.00 | 0.667 | 9.00 | 3780 | 150 | 12862 |
ActionJac 100-MSJ-IR 10 2/3:1 | 100 | 10 2/3:1 | 16 | 0.0665 | 6.00 | 0.667 | 32.00 | 13166 | 153 | 17330 |
ActionJac 100-MSJ-IR 32:1 | 100 | 32:1 | 48 | 0.0377 | 6.00 | 0.667 | 12.50 | 7460 | 106 | 11941 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load Non-keyed [rpm] | Maximum Load at 1750 RPM Non-keyed [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac 1-MSJ-DC 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1-MSJ-DC 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2-MSJ-DC 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2-MSJ-DC 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2-MSJ-DC 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2R-MSJ-DC 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2R-MSJ-DC 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2R-MSJ-DC 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5-MSJ-DC 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5-MSJ-DC 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5-MSJ-DC 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5-MSJ-DC 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5-MSJ-DC 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10-MSJ-DC 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10-MSJ-DC 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15-MSJ-DC 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15-MSJ-DC 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-UK 5:1 | 0.5 | 5:1 | 20 | 0.0220 | 0.50 | 0.250 | 0.33 | 19.3 | 950 | 600 |
ActionJac MJ-25-UK 5:1 | 0.5 | 5:1 | 25 | 0.0240 | 0.63 | 0.200 | 0.33 | 20.7 | 900 | 560 |
ActionJac MJ-40-UK 5:1 | 0.5 | 5:1 | 40 | 0.0200 | 0.63 | 0.125 | 0.33 | 16.7 | 1100 | 700 |
ActionJac MJ-50-UK 5:1 | 0.5 | 5:1 | 50 | 0.0160 | 0.50 | 0.100 | 0.33 | 13.5 | 1350 | 860 |
ActionJac MJ-80-UK 20:1 | 0.5 | 20:1 | 80 | 0.0090 | 0.50 | 0.250 | 0.17 | 8 | 1140 | 720 |
ActionJac MJ-100-UK 20:1 | 0.5 | 20:1 | 100 | 0.0100 | 0.63 | 0.200 | 0.17 | 8.7 | 1050 | 670 |
ActionJac MJ-160-UK 20:1 | 0.5 | 20:1 | 160 | 0.0080 | 0.63 | 0.125 | 0.17 | 7 | 1300 | 830 |
ActionJac MJ-200-UK 20:1 | 0.5 | 20:1 | 200 | 0.0070 | 0.50 | 0.100 | 0.17 | 5.7 | 1560 | 1000 |
ActionJac 1-MSJ-UK 5:1 | 1 | 5:1 | 25 | 0.0259 | 0.75 | 0.200 | 0.50 | 45 | 608 | 695 |
ActionJac 1-MSJ-UK 20:1 | 1 | 20:1 | 100 | 0.0121 | 0.75 | 0.200 | 0.25 | 21 | 651 | 744 |
ActionJac 2-MSJ-UK 6:1 | 2 | 6:1 | 24 | 0.0288 | 1.00 | 0.250 | 2.00 | 100 | 1096 | 2505 |
ActionJac 2-MSJ-UK 12:1 | 2 | 12:1 | 48 | 0.0177 | 1.00 | 0.250 | 1.50 | 62 | 1326 | 3031 |
ActionJac 2-MSJ-UK 24:1 | 2 | 24:1 | 96 | 0.0121 | 1.00 | 0.250 | 0.50 | 42 | 651 | 1488 |
ActionJac 2R-MSJ-UK 6:1 | 2 | 6:1 | 24 | 0.0288 | 1.00 | 0.250 | 2.00 | 100 | 1096 | 2505 |
ActionJac 2R-MSJ-UK 12:1 | 2 | 12:1 | 48 | 0.0177 | 1.00 | 0.250 | 1.50 | 62 | 1326 | 3031 |
ActionJac 2R-MSJ-UK 24:1 | 2 | 24:1 | 96 | 0.0121 | 1.00 | 0.250 | 0.50 | 42 | 651 | 1488 |
ActionJac 2.5-MSJ-UK 6:1 | 2.5 | 6:1 | 24 | 0.0290 | 1.00 | 0.250 | 2.00 | 126 | 869 | 2483 |
ActionJac 2.5-MSJ-UK 12:1 | 2.5 | 12:1 | 48 | 0.0170 | 1.00 | 0.250 | 1.50 | 74 | 1110 | 3174 |
ActionJac 2.5-MSJ-UK 24:1 | 2.5 | 24:1 | 96 | 0.0122 | 1.00 | 0.250 | 0.50 | 53 | 516 | 1476 |
ActionJac 5-MSJ-UK 6:1 | 5 | 6:1 | 16 | 0.0432 | 1.50 | 0.375 | 3.00 | 376 | 437 | 2501 |
ActionJac 5-MSJ-UK 24:1 | 5 | 24:1 | 64 | 0.0166 | 1.50 | 0.375 | 0.75 | 144 | 287 | 1627 |
ActionJac 10-MSJ-UK 8:1 | 10 | 8:1 | 16 | 0.0434 | 2.00 | 0.500 | 5.00 | 753 | 363 | 4149 |
ActionJac 10-MSJ-UK 24:1 | 10 | 24:1 | 48 | 0.0221 | 2.00 | 0.500 | 1.50 | 384 | 214 | 2444 |
ActionJac 15-MSJ-UK 8:1 | 15 | 8:1 | 16 | 0.0468 | 2.25 | 0.500 | 5.00 | 1221 | 224 | 3847 |
ActionJac 15-MSJ-UK 24:1 | 15 | 24:1 | 48 | 0.0251 | 2.25 | 0.500 | 1.50 | 654 | 125 | 2152 |
ActionJac 20-MSJ-UK 8:1 | 20 | 8:1 | 16 | 0.0500 | 2.50 | 0.500 | 7.50 | 1740 | 236 | 5402 |
ActionJac 20-MSJ-UK 24:1 | 20 | 24:1 | 48 | 0.0251 | 2.50 | 0.500 | 2.50 | 873 | 157 | 3587 |
ActionJac 30-MSJ-UK 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0520 | 3.38 | 0.667 | 11.00 | 2710 | 222 | 7618 |
ActionJac 30-MSJ-UK 32:1 | 30 | 32:1 | 48 | 0.0270 | 3.38 | 0.667 | 3.50 | 1411 | 136 | 4668 |
ActionJac 35-MSJ-UK 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0570 | 3.75 | 0.667 | 11.00 | 3450 | 174 | 6950 |
ActionJac 35-MSJ-UK 32:1 | 35 | 32:1 | 48 | 0.0295 | 3.75 | 0.667 | 3.50 | 1800 | 107 | 4273 |
ActionJac 50-MSJ-UK 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0638 | 4.50 | 0.667 | 16.00 | 5555 | 158 | 9032 |
ActionJac 50-MSJ-UK 32:1 | 50 | 32:1 | 48 | 0.0346 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5204 |
ActionJac 75-MSJ-UK 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0631 | 5.00 | 0.667 | 28.00 | 8236 | 186 | 15950 |
ActionJac 75-MSJ-UK 32:1 | 75 | 32:1 | 48 | 0.0290 | 5.00 | 0.667 | 9.00 | 3780 | 130 | 11180 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJ-20-IK 5:1 | 0.5 | 5:1 | 20 | 0.0220 | 0.50 | 0.250 | 0.33 | 19.3 | 950 | 600 |
ActionJac MJ-25-IK 5:1 | 0.5 | 5:1 | 25 | 0.0240 | 0.63 | 0.200 | 0.33 | 20.7 | 900 | 560 |
ActionJac MJ-40-IK 5:1 | 0.5 | 5:1 | 40 | 0.0200 | 0.63 | 0.125 | 0.33 | 16.7 | 1100 | 700 |
ActionJac MJ-50-IK 5:1 | 0.5 | 5:1 | 50 | 0.0160 | 0.50 | 0.100 | 0.33 | 13.5 | 1350 | 860 |
ActionJac MJ-80-IK 20:1 | 0.5 | 20:1 | 80 | 0.0090 | 0.50 | 0.250 | 0.17 | 8 | 1140 | 720 |
ActionJac MJ-100-IK 20:1 | 0.5 | 20:1 | 100 | 0.0100 | 0.63 | 0.200 | 0.17 | 8.7 | 1050 | 670 |
ActionJac MJ-160-IK 20:1 | 0.5 | 20:1 | 160 | 0.0080 | 0.63 | 0.125 | 0.17 | 7 | 1300 | 830 |
ActionJac MJ-200-IK 20:1 | 0.5 | 20:1 | 200 | 0.0070 | 0.50 | 0.100 | 0.17 | 5.7 | 1560 | 1000 |
ActionJac 1-MSJ-IK 5:1 | 1 | 5:1 | 25 | 0.0259 | 0.75 | 0.200 | 0.50 | 45 | 608 | 695 |
ActionJac 1-MSJ-IK 20:1 | 1 | 20:1 | 100 | 0.0121 | 0.75 | 0.200 | 0.25 | 21 | 651 | 744 |
ActionJac 2-MSJ-IK 6:1 | 2 | 6:1 | 24 | 0.0288 | 1.00 | 0.250 | 2.00 | 100 | 1096 | 2505 |
ActionJac 2-MSJ-IK 12:1 | 2 | 12:1 | 48 | 0.0177 | 1.00 | 0.250 | 1.50 | 62 | 1326 | 3031 |
ActionJac 2-MSJ-IK 24:1 | 2 | 24:1 | 96 | 0.0121 | 1.00 | 0.250 | 0.50 | 42 | 651 | 1488 |
ActionJac 2R-MSJ-IK 6:1 | 2 | 6:1 | 24 | 0.0288 | 1.00 | 0.250 | 2.00 | 100 | 1096 | 2505 |
ActionJac 2R-MSJ-IK 12:1 | 2 | 12:1 | 48 | 0.0177 | 1.00 | 0.250 | 1.50 | 62 | 1326 | 3031 |
ActionJac 2R-MSJ-IK 24:1 | 2 | 24:1 | 96 | 0.0121 | 1.00 | 0.250 | 0.50 | 42 | 651 | 1488 |
ActionJac 2.5-MSJ-IK 6:1 | 2.5 | 6:1 | 24 | 0.0290 | 1.00 | 0.250 | 2.00 | 126 | 869 | 2483 |
ActionJac 2.5-MSJ-IK 12:1 | 2.5 | 12:1 | 48 | 0.0170 | 1.00 | 0.250 | 1.50 | 74 | 1110 | 3174 |
ActionJac 2.5-MSJ-IK 24:1 | 2.5 | 24:1 | 96 | 0.0122 | 1.00 | 0.250 | 0.50 | 53 | 516 | 1476 |
ActionJac 5-MSJ-IK 6:1 | 5 | 6:1 | 16 | 0.0432 | 1.50 | 0.375 | 3.00 | 376 | 437 | 2501 |
ActionJac 5-MSJ-IK 24:1 | 5 | 24:1 | 64 | 0.0166 | 1.50 | 0.375 | 0.75 | 144 | 287 | 1627 |
ActionJac 10-MSJ-IK 8:1 | 10 | 8:1 | 16 | 0.0434 | 2.00 | 0.500 | 5.00 | 753 | 363 | 4149 |
ActionJac 10-MSJ-IK 24:1 | 10 | 24:1 | 48 | 0.0221 | 2.00 | 0.500 | 1.50 | 384 | 214 | 2444 |
ActionJac 15-MSJ-IK 8:1 | 15 | 8:1 | 16 | 0.0468 | 2.25 | 0.500 | 5.00 | 1221 | 224 | 3847 |
ActionJac 15-MSJ-IK 24:1 | 15 | 24:1 | 48 | 0.0251 | 2.25 | 0.500 | 1.50 | 654 | 125 | 2152 |
ActionJac 20-MSJ-IK 8:1 | 20 | 8:1 | 16 | 0.0500 | 2.50 | 0.500 | 7.50 | 1740 | 236 | 5402 |
ActionJac 20-MSJ-IK 24:1 | 20 | 24:1 | 48 | 0.0251 | 2.50 | 0.500 | 2.50 | 873 | 157 | 3587 |
ActionJac 30-MSJ-IK 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0520 | 3.38 | 0.667 | 11.00 | 2710 | 222 | 7618 |
ActionJac 30-MSJ-IK 32:1 | 30 | 32:1 | 48 | 0.0270 | 3.38 | 0.667 | 3.50 | 1411 | 136 | 4668 |
ActionJac 35-MSJ-IK 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0570 | 3.75 | 0.667 | 11.00 | 3450 | 174 | 6950 |
ActionJac 35-MSJ-IK 32:1 | 35 | 32:1 | 48 | 0.0295 | 3.75 | 0.667 | 3.50 | 1800 | 107 | 4273 |
ActionJac 50-MSJ-IK 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0638 | 4.50 | 0.667 | 16.00 | 5555 | 158 | 9032 |
ActionJac 50-MSJ-IK 32:1 | 50 | 32:1 | 48 | 0.0346 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5204 |
ActionJac 75-MSJ-IK 10 2/3:1 | 75 | 10 2/3:1 | 16 | 0.0631 | 5.00 | 0.667 | 28.00 | 8236 | 186 | 15950 |
ActionJac 75-MSJ-IK 32:1 | 75 | 32:1 | 48 | 0.0290 | 5.00 | 0.667 | 9.00 | 3780 | 130 | 11180 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm Per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJAB-20-U 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJAB-25-U 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJAB-40-U 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJAB-50-U 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJAB-80-U 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJAB-100-U 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJAB-160-U 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJAB-200-U 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1AB-MSJ-U 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1AB-MSJ-U 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2AB-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2AB-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2AB-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2RAB-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2RAB-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2RAB-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5AB-MSJ-U 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5AB-MSJ-U 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5AB-MSJ-U 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5AB-MSJ-U 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5AB-MSJ-U 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10AB-MSJ-U 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10AB-MSJ-U 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15AB-MSJ-U 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15AB-MSJ-U 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20AB-MSJ-U 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20AB-MSJ-U 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30AB-MSJ-U 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30AB-MSJ-U 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35AB-MSJ-U 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35AB-MSJ-U 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50AB-MSJ-U 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50AB-MSJ-U 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm Per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJAB-20-U 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJAB-25-U 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJAB-40-U 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJAB-50-U 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJAB-80-U 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJAB-100-U 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJAB-160-U 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJAB-200-U 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1AB-MSJ-U 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1AB-MSJ-U 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2AB-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2AB-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2AB-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2RAB-MSJ-U 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2RAB-MSJ-U 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2RAB-MSJ-U 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5AB-MSJ-U 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5AB-MSJ-U 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5AB-MSJ-U 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5AB-MSJ-U 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5AB-MSJ-U 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10AB-MSJ-U 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10AB-MSJ-U 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15AB-MSJ-U 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15AB-MSJ-U 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20AB-MSJ-U 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20AB-MSJ-U 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30AB-MSJ-U 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30AB-MSJ-U 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35AB-MSJ-U 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35AB-MSJ-U 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50AB-MSJ-U 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50AB-MSJ-U 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm Per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Worm Speed at Rated Load [rpm] | Maximum Load at 1750 RPM [lb] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac MJAB-20-I 5:1 | 0.5 | 5:1 | 20 | 0.0190 | 0.50 | 0.250 | 0.33 | 19.3 | 1090 | 600 |
ActionJac MJAB-25-I 5:1 | 0.5 | 5:1 | 25 | 0.0210 | 0.63 | 0.200 | 0.33 | 20.7 | 1040 | 560 |
ActionJac MJAB-40-I 5:1 | 0.5 | 5:1 | 40 | 0.0170 | 0.63 | 0.125 | 0.33 | 16.7 | 1260 | 700 |
ActionJac MJAB-50-I 5:1 | 0.5 | 5:1 | 50 | 0.0140 | 0.50 | 0.100 | 0.33 | 13.5 | 1560 | 860 |
ActionJac MJAB-80-I 20:1 | 0.5 | 20:1 | 80 | 0.0080 | 0.50 | 0.250 | 0.17 | 8 | 1310 | 720 |
ActionJac MJAB-100-I 20:1 | 0.5 | 20:1 | 100 | 0.0090 | 0.63 | 0.200 | 0.17 | 8.7 | 1210 | 670 |
ActionJac MJAB-160-I 20:1 | 0.5 | 20:1 | 160 | 0.0070 | 0.63 | 0.125 | 0.17 | 7 | 1500 | 830 |
ActionJac MJAB-200-I 20:1 | 0.5 | 20:1 | 200 | 0.0060 | 0.50 | 0.100 | 0.17 | 5.7 | 1800 | 1000 |
ActionJac 1AB-MSJ-I 5:1 | 1 | 5:1 | 25 | 0.0225 | 0.75 | 0.200 | 0.50 | 45 | 700 | 800 |
ActionJac 1AB-MSJ-I 20:1 | 1 | 20:1 | 100 | 0.0105 | 0.75 | 0.200 | 0.25 | 21 | 750 | 857 |
ActionJac 2AB-MSJ-I 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2AB-MSJ-I 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2AB-MSJ-I 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2RAB-MSJ-I 6:1 | 2 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 100 | 1260 | 2881 |
ActionJac 2RAB-MSJ-I 12:1 | 2 | 12:1 | 48 | 0.0154 | 1.00 | 0.250 | 1.50 | 62 | 1525 | 3486 |
ActionJac 2RAB-MSJ-I 24:1 | 2 | 24:1 | 96 | 0.0105 | 1.00 | 0.250 | 0.50 | 42 | 750 | 1715 |
ActionJac 2.5AB-MSJ-I 6:1 | 2.5 | 6:1 | 24 | 0.0252 | 1.00 | 0.250 | 2.00 | 126 | 1000 | 2858 |
ActionJac 2.5AB-MSJ-I 12:1 | 2.5 | 12:1 | 48 | 0.0148 | 1.00 | 0.250 | 1.50 | 74 | 1277 | 3650 |
ActionJac 2.5AB-MSJ-I 24:1 | 2.5 | 24:1 | 96 | 0.0106 | 1.00 | 0.250 | 0.50 | 53 | 594 | 1699 |
ActionJac 5AB-MSJ-I 6:1 | 5 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 376 | 500 | 2873 |
ActionJac 5AB-MSJ-I 24:1 | 5 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 144 | 330 | 1875 |
ActionJac 10AB-MSJ-I 8:1 | 10 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 753 | 418 | 4776 |
ActionJac 10AB-MSJ-I 24:1 | 10 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 384 | 246 | 2813 |
ActionJac 15AB-MSJ-I 8:1 | 15 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 1221 | 258 | 4424 |
ActionJac 15AB-MSJ-I 24:1 | 15 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 654 | 144 | 2478 |
ActionJac 20AB-MSJ-I 8:1 | 20 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 7.50 | 1740 | 272 | 6209 |
ActionJac 20AB-MSJ-I 24:1 | 20 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 2.50 | 873 | 180 | 4130 |
ActionJac 30AB-MSJ-I 10 2/3:1 | 30 | 10 2/3:1 | 16 | 0.0452 | 3.38 | 0.667 | 11.00 | 2710 | 256 | 8764 |
ActionJac 30AB-MSJ-I 32:1 | 30 | 32:1 | 48 | 0.0235 | 3.38 | 0.667 | 3.50 | 1411 | 156 | 5364 |
ActionJac 35AB-MSJ-I 10 2/3:1 | 35 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 3450 | 200 | 8035 |
ActionJac 35AB-MSJ-I 32:1 | 35 | 32:1 | 48 | 0.0257 | 3.75 | 0.667 | 3.50 | 1800 | 122 | 4904 |
ActionJac 50AB-MSJ-I 10 2/3:1 | 50 | 10 2/3:1 | 16 | 0.0555 | 4.50 | 0.667 | 16.00 | 5555 | 181 | 10382 |
ActionJac 50AB-MSJ-I 32:1 | 50 | 32:1 | 48 | 0.0301 | 4.50 | 0.667 | 5.00 | 3014 | 104 | 5982 |
Stainless Steel Machine Screw Jacks
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Load at 1750 RPM |
|---|---|---|---|---|---|---|---|---|---|
ActionJac 2SS-MSJ-U 6:1 | 0.66 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 33 | 1320 |
ActionJac 2SS-MSJ-U 24:1 | 0.66 | 24:1 | 96 | 0.0150 | 1.00 | 0.250 | 0.50 | 14 | 1320 |
ActionJac 5SS-MSJ-U 6:1 | 1.67 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 125 | 2873 |
ActionJac 5SS-MSJ-U 24:1 | 1.67 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 48 | 1875 |
ActionJac 10SS-MSJ-U 8:1 | 3.33 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 251 | 4775 |
ActionJac 10SS-MSJ-U 24:1 | 3.33 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 128 | 2813 |
ActionJac 15SS-MSJ-U 8:1 | 5 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 407 | 4424 |
ActionJac 15SS-MSJ-U 24:1 | 5 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 218 | 2478 |
ActionJac 20SS-MSJ-U 8:1 | 6.66 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 5.00 | 580 | 4140 |
ActionJac 20SS-MSJ-U 24:1 | 6.66 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 1.50 | 291 | 2478 |
ActionJac 25SS-MSJ-U 10 2/3:1 | 8.3 | 10 2/3:1 | 16 | 0.0452 | 3.00 | 0.667 | 11.00 | 903 | 8764 |
ActionJac 25SS-MSJ-U 32:1 | 8.3 | 32:1 | 48 | 0.0235 | 3.00 | 0.667 | 3.50 | 471 | 5364 |
ActionJac 35SS-MSJ-U 10 2/3:1 | 11.66 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 1150 | 8035 |
ActionJac 35SS-MSJ-U 32:1 | 11.66 | 32:1 | 48 | 0.0251 | 3.75 | 0.667 | 3.50 | 600 | 5022 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Load at 1750 RPM |
|---|---|---|---|---|---|---|---|---|---|
ActionJac 2SS-MSJ-I 6:1 | 0.66 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 33 | 1320 |
ActionJac 2SS-MSJ-I 24:1 | 0.66 | 24:1 | 96 | 0.0150 | 1.00 | 0.250 | 0.50 | 14 | 1320 |
ActionJac 5SS-MSJ-I 6:1 | 1.67 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 125 | 2873 |
ActionJac 5SS-MSJ-I 24:1 | 1.67 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 48 | 1875 |
ActionJac 10SS-MSJ-I 8:1 | 3.33 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 251 | 4775 |
ActionJac 10SS-MSJ-I 24:1 | 3.33 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 128 | 2813 |
ActionJac 15SS-MSJ-I 8:1 | 5 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 407 | 4424 |
ActionJac 15SS-MSJ-I 24:1 | 5 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 218 | 2478 |
ActionJac 20SS-MSJ-I 8:1 | 6.66 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 5.00 | 580 | 4140 |
ActionJac 20SS-MSJ-I 24:1 | 6.66 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 1.50 | 291 | 2478 |
ActionJac 25SS-MSJ-I 10 2/3:1 | 8.3 | 10 2/3:1 | 16 | 0.0452 | 3.00 | 0.667 | 11.00 | 903 | 8764 |
ActionJac 25SS-MSJ-I 32:1 | 8.3 | 32:1 | 48 | 0.0235 | 3.00 | 0.667 | 3.50 | 471 | 5364 |
ActionJac 35SS-MSJ-I 10 2/3:1 | 11.66 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 1150 | 8035 |
ActionJac 35SS-MSJ-I 32:1 | 11.66 | 32:1 | 48 | 0.0251 | 3.75 | 0.667 | 3.50 | 600 | 5022 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Load at 1750 RPM |
|---|---|---|---|---|---|---|---|---|---|
ActionJac 2SS-MSJ-UR 6:1 | 0.66 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 33 | 1320 |
ActionJac 2SS-MSJ-UR 24:1 | 0.66 | 24:1 | 96 | 0.0150 | 1.00 | 0.250 | 0.50 | 14 | 1320 |
ActionJac 5SS-MSJ-UR 6:1 | 1.67 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 125 | 2873 |
ActionJac 5SS-MSJ-UR 24:1 | 1.67 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 48 | 1875 |
ActionJac 10SS-MSJ-UR 8:1 | 3.33 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 251 | 4775 |
ActionJac 10SS-MSJ-UR 24:1 | 3.33 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 128 | 2813 |
ActionJac 15SS-MSJ-UR 8:1 | 5 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 407 | 4424 |
ActionJac 15SS-MSJ-UR 24:1 | 5 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 218 | 2478 |
ActionJac 20SS-MSJ-UR 8:1 | 6.66 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 5.00 | 580 | 4140 |
ActionJac 20SS-MSJ-UR 24:1 | 6.66 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 1.50 | 291 | 2478 |
ActionJac 25SS-MSJ-UR 10 2/3:1 | 8.3 | 10 2/3:1 | 16 | 0.0452 | 3.00 | 0.667 | 11.00 | 903 | 8764 |
ActionJac 25SS-MSJ-UR 32:1 | 8.3 | 32:1 | 48 | 0.0235 | 3.00 | 0.667 | 3.50 | 471 | 5364 |
ActionJac 35SS-MSJ-UR 10 2/3:1 | 11.66 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 1150 | 8035 |
ActionJac 35SS-MSJ-UR 32:1 | 11.66 | 32:1 | 48 | 0.0251 | 3.75 | 0.667 | 3.50 | 600 | 5022 |
Product | Capacity [Ton] | Gear Ratio | Turns of Worm per Inch Travel | Torque to Raise 1 lb. [in-lb] | Lifting Screw Diameter [in] | Screw Lead [in] | Maximum Allowable Input [hp] | Maximum Input Torque [in-lb] | Maximum Load at 1750 RPM | |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac 2SS-MSJ-IR 6:1 | 0.66 | 6:1 | 24 | 0.0250 | 1.00 | 0.250 | 2.00 | 33 | 1320 | |
ActionJac 2SS-MSJ-IR 24:1 | 0.66 | 24:1 | 96 | 0.0150 | 1.00 | 0.250 | 0.50 | 14 | 1320 | |
ActionJac 5SS-MSJ-IR 6:1 | 1.67 | 6:1 | 16 | 0.0376 | 1.50 | 0.375 | 3.00 | 125 | 2873 | |
ActionJac 5SS-MSJ-IR 24:1 | 1.67 | 24:1 | 64 | 0.0144 | 1.50 | 0.375 | 0.75 | 48 | 1875 | |
ActionJac 10SS-MSJ-IR 8:1 | 3.33 | 8:1 | 16 | 0.0377 | 2.00 | 0.500 | 5.00 | 251 | 4775 | |
ActionJac 10SS-MSJ-IR 24:1 | 3.33 | 24:1 | 48 | 0.0192 | 2.00 | 0.500 | 1.50 | 128 | 2813 | |
ActionJac 15SS-MSJ-IR 8:1 | 5.00 | 8:1 | 16 | 0.0407 | 2.25 | 0.500 | 5.00 | 407 | 4424 | |
ActionJac 15SS-MSJ-IR 24:1 | 5.00 | 24:1 | 48 | 0.0218 | 2.25 | 0.500 | 1.50 | 218 | 2478 | |
ActionJac 20SS-MSJ-IR 8:1 | 6.66 | 8:1 | 16 | 0.0435 | 2.50 | 0.500 | 5.00 | 580 | 4140 | |
ActionJac 20SS-MSJ-IR 24:1 | 6.66 | 24:1 | 48 | 0.0218 | 2.50 | 0.500 | 1.50 | 291 | 2478 | |
ActionJac 25SS-MSJ-IR 10 2/3:1 | 8.30 | 10 2/3:1 | 16 | 0.0452 | 3.00 | 0.667 | 11.00 | 903 | 8764 | |
ActionJac 25SS-MSJ-IR 32:1 | 8.30 | 32:1 | 48 | 0.0235 | 3.00 | 0.667 | 3.50 | 471 | 5364 | |
ActionJac 35SS-MSJ-IR 10 2/3:1 | 11.66 | 10 2/3:1 | 16 | 0.0493 | 3.75 | 0.667 | 11.00 | 1150 | 8035 | |
ActionJac 35SS-MSJ-IR 32:1 | 11.66 | 32:1 | 48 | 0.0251 | 3.75 | 0.667 | 3.50 | 600 | 5022 |
|
Metric Machine Screw Jacks
Product | Capacity [kN] | Gear Ratio | Raise for One Turn of Worm [mm] | Torque to Raise 1 kN [Nm] | Lifting Screw Diameter [mm] | Screw Lead [mm] | Maximum Allowable Input [kW] | Maximum Input Torque [Nm] | Maximum Load at 1425 RPM [kN] | Maximum Worm Speed at Rated Load [rpm] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac EM05-MSJ-U 5:1 | 5 | 5:1 | 0.80 | 0.45 | 16 | 4 | 0.27 | 2.25 | 4.0 | 1130 |
ActionJac EM05-MSJ-U 20:1 | 5 | 20:1 | 0.20 | 0.19 | 16 | 4 | 0.13 | 0.94 | 4.6 | 1130 |
ActionJac EM1-MSJ-U 5:1 | 10 | 5:1 | 0.80 | 0.52 | 20 | 4 | 0.36 | 5.19 | 4.7 | 665 |
ActionJac EM1-MSJ-U 20:1 | 10 | 20:1 | 0.20 | 0.24 | 20 | 4 | 0.19 | 2.44 | 5.1 | 730 |
ActionJac EM2.5-MSJ-U 6:1 | 25 | 6:1 | 1.00 | 0.59 | 26 | 6 | 1.51 | 14.90 | 17.0 | 975 |
ActionJac EM2.5-MSJ-U 12:1 | 25 | 12:1 | 0.50 | 0.35 | 26 | 6 | 1.13 | 8.70 | 21.7 | 1235 |
ActionJac EM2.5-MSJ-U 24:1 | 25 | 24:1 | 0.25 | 0.25 | 26 | 6 | 0.38 | 6.30 | 10.1 | 575 |
ActionJac EM5-MSJ-U 6:1 | 50 | 6:1 | 1.17 | 0.81 | 40 | 7 | 1.87 | 40.30 | 15.6 | 445 |
ActionJac EM5-MSJ-U 24:1 | 50 | 24:1 | 0.29 | 0.32 | 40 | 7 | 0.51 | 16.00 | 10.7 | 300 |
ActionJac EM10-MSJ-U 8:1 | 100 | 8:1 | 1.50 | 0.97 | 55 | 12 | 3.65 | 97.20 | 25.2 | 360 |
ActionJac EM10-MSJ-U 24:1 | 100 | 24:1 | 0.50 | 0.50 | 55 | 12 | 1.10 | 50.00 | 14.8 | 250 |
ActionJac EM20-MSJ-U 8:1 | 200 | 8:1 | 1.50 | 1.08 | 65 | 12 | 5.60 | 215.00 | 35.0 | 250 |
ActionJac EM20-MSJ-U 24:1 | 200 | 24:1 | 0.50 | 0.54 | 65 | 12 | 1.90 | 108.00 | 23.0 | 165 |
Product | Capacity [kN] | Gear Ratio | Travel for 1 Turn of Worm [mm] | Torque to Raise 1 kN [Nm] | Lifting Screw Diameter [mm] | Screw Lead [mm] | Maximum Allowable Input [kW] | Maximum Input Torque [Nm] | Maximum Load at 1425 RPM [kN] | Maximum Worm Speed at Rated Load [rpm] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac EM05-MSJ-I 5:1 | 5 | 5:1 | 0.8 | 0.45 | 16 | 4 | 0.27 | 2.25 | 4.0 | 1130 |
ActionJac EM05-MSJ-I 20:1 | 5 | 20:1 | 0.2 | 0.19 | 16 | 4 | 0.13 | 0.94 | 4.6 | 1130 |
ActionJac EM1-MSJ-I 5:1 | 10 | 5:1 | 0.8 | 0.52 | 20 | 4 | 0.36 | 5.19 | 4.7 | 665 |
ActionJac EM1-MSJ-I 20:1 | 10 | 20:1 | 0.2 | 0.24 | 20 | 4 | 0.19 | 2.44 | 5.1 | 730 |
ActionJac EM2.5-MSJ-I 6:1 | 25 | 6:1 | 1 | 0.59 | 26 | 6 | 1.51 | 14.90 | 17.0 | 975 |
ActionJac EM2.5-MSJ-I 12:1 | 25 | 12:1 | 0.5 | 0.35 | 26 | 6 | 1.13 | 8.70 | 21.7 | 1235 |
ActionJac EM2.5-MSJ-I 24:1 | 25 | 24:1 | 0.25 | 0.25 | 26 | 6 | 0.38 | 6.30 | 10.1 | 575 |
ActionJac EM5-MSJ-I 6:1 | 50 | 6:1 | 1.17 | 0.81 | 40 | 7 | 1.87 | 40.30 | 15.6 | 445 |
ActionJac EM5-MSJ-I 24:1 | 50 | 24:1 | 0.29 | 0.32 | 40 | 7 | 0.51 | 16.00 | 10.7 | 300 |
ActionJac EM10-MSJ-I 8:1 | 100 | 8:1 | 1.5 | 0.97 | 55 | 12 | 3.65 | 97.20 | 25.2 | 360 |
ActionJac EM10-MSJ-I 24:1 | 100 | 24:1 | 0.5 | 0.50 | 55 | 12 | 1.10 | 50.00 | 14.8 | 250 |
ActionJac EM20-MSJ-I 8:1 | 200 | 8:1 | 1.5 | 1.08 | 65 | 12 | 5.60 | 215.00 | 35.0 | 250 |
ActionJac EM20-MSJ-I 24:1 | 200 | 24:1 | 0.5 | 0.54 | 65 | 12 | 1.90 | 108.00 | 23.0 | 165 |
Product | Capacity [kN] | Gear Ratio | Raise for One Turn of Worm [mm] | Torque to Raise 1 kN [Nm] | Lifting Screw Diameter [mm] | Screw Lead [mm] | Maximum Allowable Input [kW] | Maximum Input Torque [Nm] | Maximum Load at 1425 RPM [kN] | Maximum Worm Speed at Rated Load [rpm] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac EM05-MSJ-UR 5:1 | 5 | 5:1 | 0.80 | 0.45 | 16 | 4 | 0.27 | 2.25 | 4.0 | 1130 |
ActionJac EM05-MSJ-UR 20:1 | 5 | 20:1 | 0.20 | 0.19 | 16 | 4 | 0.13 | 0.94 | 4.6 | 1130 |
ActionJac EM1-MSJ-UR 5:1 | 10 | 5:1 | 0.80 | 0.52 | 20 | 4 | 0.36 | 5.19 | 4.7 | 665 |
ActionJac EM1-MSJ-UR 20:1 | 10 | 20:1 | 0.20 | 0.24 | 20 | 4 | 0.19 | 2.44 | 5.1 | 730 |
ActionJac EM2.5-MSJ-UR 6:1 | 25 | 6:1 | 1.00 | 0.59 | 26 | 6 | 1.51 | 14.90 | 17.0 | 975 |
ActionJac EM2.5-MSJ-UR 12:1 | 25 | 12:1 | 0.50 | 0.35 | 26 | 6 | 1.13 | 8.70 | 21.7 | 1235 |
ActionJac EM2.5-MSJ-UR 24:1 | 25 | 24:1 | 0.25 | 0.25 | 26 | 6 | 0.38 | 6.30 | 10.1 | 575 |
ActionJac EM5-MSJ-UR 6:1 | 50 | 6:1 | 1.17 | 0.81 | 40 | 7 | 1.87 | 40.30 | 15.6 | 445 |
ActionJac EM5-MSJ-UR 24:1 | 50 | 24:1 | 0.29 | 0.32 | 40 | 7 | 0.51 | 16.00 | 10.7 | 300 |
ActionJac EM10-MSJ-UR 8:1 | 100 | 8:1 | 1.50 | 0.97 | 55 | 12 | 3.65 | 97.20 | 25.2 | 360 |
ActionJac EM10-MSJ-UR 24:1 | 100 | 24:1 | 0.50 | 0.50 | 55 | 12 | 1.10 | 50.00 | 14.8 | 250 |
ActionJac EM20-MSJ-UR 8:1 | 200 | 8:1 | 1.50 | 1.08 | 65 | 12 | 5.60 | 215.00 | 35.0 | 250 |
ActionJac EM20-MSJ-UR 24:1 | 200 | 24:1 | 0.50 | 0.54 | 65 | 12 | 1.90 | 108.00 | 23.0 | 165 |
Product | Capacity [kN] | Gear Ratio | Travel for 1 Turn of Worm [mm] | Torque to Raise 1 kN [Nm] | Lifting Screw Diameter [mm] | Screw Lead [mm] | Maximum Allowable Input [kW] | Maximum Input Torque [Nm] | Maximum Load at 1425 RPM [kN] | Maximum Worm Speed at Rated Load [rpm] |
|---|---|---|---|---|---|---|---|---|---|---|
ActionJac EM05-MSJ-IR 5:1 | 5 | 5:1 | 0.8 | 0.45 | 16 | 4 | 0.27 | 2.25 | 4.0 | 1130 |
ActionJac EM05-MSJ-IR 20:1 | 5 | 20:1 | 0.2 | 0.19 | 16 | 4 | 0.13 | 0.94 | 4.6 | 1130 |
ActionJac EM1-MSJ-IR 5:1 | 10 | 5:1 | 0.8 | 0.52 | 20 | 4 | 0.36 | 5.19 | 4.7 | 665 |
ActionJac EM1-MSJ-IR 20:1 | 10 | 20:1 | 0.2 | 0.24 | 20 | 4 | 0.19 | 2.44 | 5.1 | 730 |
ActionJac EM2.5-MSJ-IR 6:1 | 25 | 6:1 | 1 | 0.59 | 26 | 6 | 1.51 | 14.90 | 17.0 | 975 |
ActionJac EM2.5-MSJ-IR 12:1 | 25 | 12:1 | 0.5 | 0.35 | 26 | 6 | 1.13 | 8.70 | 21.7 | 1235 |
ActionJac EM2.5-MSJ-IR 24:1 | 25 | 24:1 | 0.25 | 0.25 | 26 | 6 | 0.38 | 6.30 | 10.1 | 575 |
ActionJac EM5-MSJ-IR 6:1 | 50 | 6:1 | 1.17 | 0.81 | 40 | 7 | 1.87 | 40.30 | 15.6 | 445 |
ActionJac EM5-MSJ-IR 24:1 | 50 | 24:1 | 0.29 | 0.32 | 40 | 7 | 0.51 | 16.00 | 10.7 | 300 |
ActionJac EM10-MSJ-IR 8:1 | 100 | 8:1 | 1.5 | 0.97 | 55 | 12 | 3.65 | 97.20 | 25.2 | 360 |
ActionJac EM10-MSJ-IR 24:1 | 100 | 24:1 | 0.5 | 0.50 | 55 | 12 | 1.10 | 50.00 | 14.8 | 250 |
ActionJac EM20-MSJ-IR 8:1 | 200 | 8:1 | 1.5 | 1.08 | 65 | 12 | 5.60 | 215.00 | 35.0 | 250 |
ActionJac EM20-MSJ-IR 24:1 | 200 | 24:1 | 0.5 | 0.54 | 65 | 12 | 1.90 | 108.00 | 23.0 | 165 |
Đánh giá
Chưa có đánh giá nào.
