Pull Rope Emergency Stop Switch Kiepe
HEN 211 Kiepe Việt Nam
Thông tin sản phẩm hãng: KIEPE
Thông tin sản phẩm SBS: KIEPE VIỆT NAM
Ứng dụng sản phẩm
Kiepe pull-rope emergency stop switch types HEN 211 comply with
Machinery Directive 2006/42/EC and meet the requirements in the safety objectives of Low Voltage Directive 2006/95/EC.
The HEN 211 aluminum housing is equipped with two NC-and one NO-Contact. The NO-Contact is connected to a bus modul, which watches and signalizes the switching status (in/off) economically over long distances.
The pull-rope emergency stop switch is actuated by a pull rope 1 connected on both sides of the red release lever. The contacts are actuated by a spring supported cam disc (snap action function). At the same time, two NC contacts and one NO contact are actuated simultanously.
The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle. The NO-contact activates the bus modul 101.
Spare parts and accessories: | |
Screwed cable gland M25 x 1.5 (sealing area 11 mm to 16 mm) | 113.52.02.20.01 |
Dummy screw M25 x 1.5 | 113.52.87.20.02 |
Cover including seal and screws | 93.066 839.004 |
Programming adaptor (cable with 3-pole connector) | 94.065 083.003 |
Bảng so sánh giữa Công tắc giật dây hãng Kiepe và hãng Sitec
| KIEPE Việt Nam | SITEC Việt Nam | ||
| Name | Part number | Model code | Part number |
| HEN 001Kiepe việt nam | 91.043 450.001 | SNA2-11S | 10094 |
| HEN 002Công tắc giật dây băng tải Kiepe | 91.043 450.002 | SNA2-22S Công tắc giật dây Sitec | 10100 |
| HEN 003 Công tắc giật dây Kiepe | 91.043 450.003 | SNA2-33S Sitec Việt Nam | 10096 |
| HEN 004 nhà phân phối Kiepe Việt Nam | 91.043 450.004 | SNA2-11S-L1 Công tắc giật dây băng tải Sitec | |
| HEN 005 | 91.043 450.005 | SNA2-22S-L1 | |
| HEN 006 | 91.043 450.006 | SNA2-23S-L1 | |
| HEN 017 | 91.043 450.017 | SNA2-11S-V1 | |
| HEN 018 | 91.043 450.018 | SNA2-22S-V1 | 10233 |
| HEN 023 | 91.043 450.023 | SNA2-11G | |
| HEN 024 | 91.043 450.024 | SNA2-22G | |
| HEN 211 | 91.043 450.211 | coming soon | – |
| HEN 221 | 91.043 450.221 | coming soon | – |
| HEN 231 | 91.043 450.231 | coming soon | – |

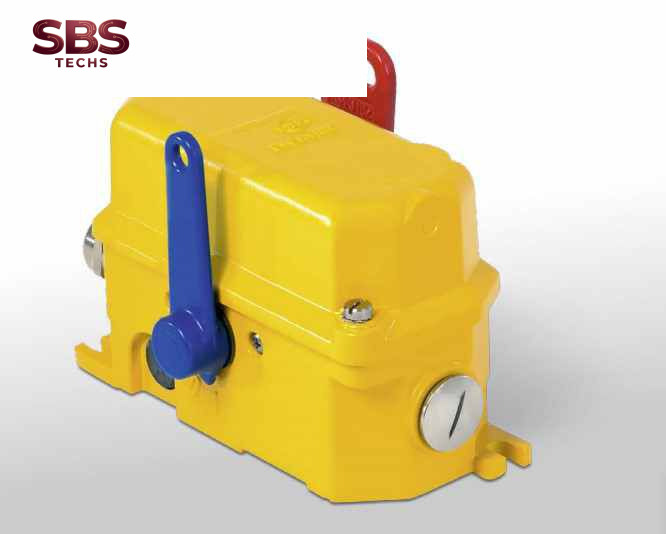

Công tắc giật dây băng tảiKiepe HEN 211
HEN 211 KIEPE VIỆT NAM
Bản vẽ Công tắc giật dây băng tải HEN 211 Kiepe Việt Nam
