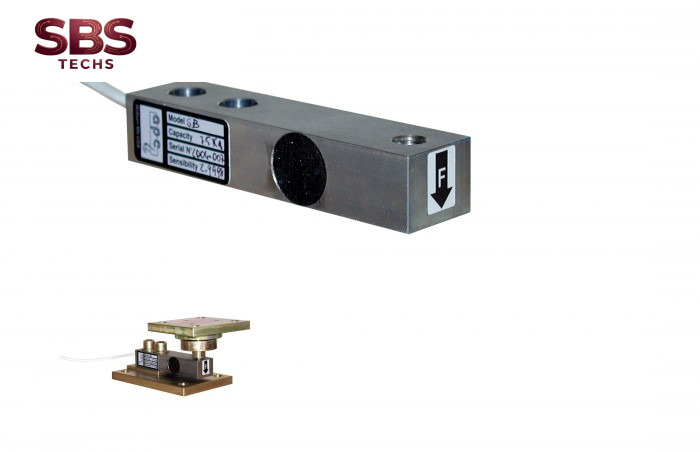

- Engineered for the weighing of hoppers and reservoirs and for the construction of platforms of low profile
- Also available in special versions for high temperature
- It avoids the use of mechanical restraints if used with its mounting accessories
- Excellent linearity and accuracy
- Strength to lateral loads in excess of 50%
- Made of stainless steel
- Watertight protection for use in harsh environments
| Rated load (R.L.): | 75, 125, 250 Kg |
| Combined error: | ±0.025% R.O. |
| Repeatability: | ±0.01% R.O. |
| Creep (20 minutes): | ±0.03% R.O. |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | > 300% of R.L. |
| Recommended input: | 5÷12 Vdc/ac |
| Input resistance: | 385 ± 3 Ohms |
| Output resistance: | 350 ± 3 Ohms |
| Insulation resistance: | > 2000 M Ohms |
| Rated output (R.O.): | 3 ± 0.25% mV/V |
| Zero balance: | ±1% SN |
| Temperature range: | -20 ÷ +70 °C |
| Compensated temperature range: | -10 ÷ +40 °C |
| Temp. effect (-10° to +50°C) on zero balance: | 0.015% SN/10°C |
| Temp. effect (-10°C to +50°C) on output: | 0.025% on output/10°C |
| Max Load deflection: | < 0.5 mm |
| Degree of protection: | IP65 |
| Material: | Stainless steel |
| Electrical connection: | 6 conductors shielded cable; length 6 m |
