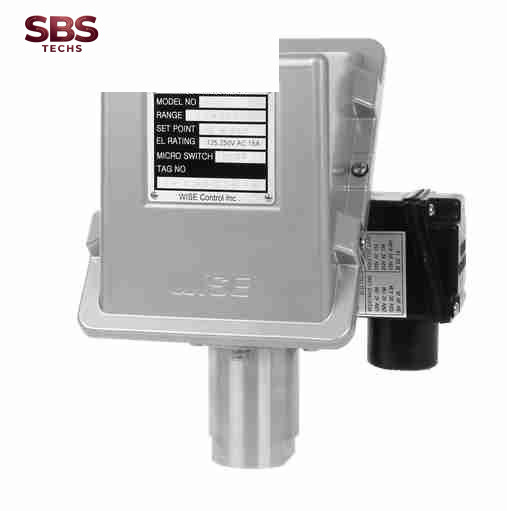

P945, P946, P947 Wise Control- đồng hồ đo áp suất Wise Control Việt Nam

Đồng hồ đo áp suất P945, P946, P947 Wise Control Việt Nam, đại lý Wise Việt nam, hãng Wise tại Việt Nam

Chi tiết sản phẩm

Đồng hồ đo áp suất Wise Control Việt Nam

Fluid	Gas and oil
Repeatability	±1.0 % of adjustable range
Adjustable range (mbar, kPa, bar, MPa)	-0.1 ~ – 0.15 bar to 1.5 ~ 15 MPa
Dead band	Within 8 to 20 % of adjustable range
Working temperature	Ambient : -20 ~ 65 °C Fluid : Max. 100 °C
Degree of protection	EN60529/IEC529/IP65

Standard features

Pressure connection	Stainless steel (316L SS), Monel and Hastelloy-C
Element	Bellows Stainless steel (316L SS), Monel and Hastelloy-C
Case and cover	ALDC 12.1 Silver gray finished aluminium
Contact	Micro contact type One SPDT One DPDT
Contact rating	SPDT contact rating AC 125 V / 250 V, 15 A DC 125 V, 0.4 A for resistance load DC 125V, 0.03 A for inductive load DPDT contact rating Resistance load AC 125 V / 250 V, 10 A DC 125 V, 0.5 A DC 8 V, 10 A DC 14 V, 10 A DC 30 V, 10 A Inductive load AC 125 V, 6 A /AC 250 V, 4 A DC 125 V, 0.05 A DC 8 V, 6 A DC 14 V, 6 A DC 30 V, 4 A
Conduit connection	¾” PF (F)
Process connection	¼”, ⅜”, ½” PT, NPT and PF
Option	Bracket : Wall mounting, 304SS and 316SS ±0.5 % of adjustable range
