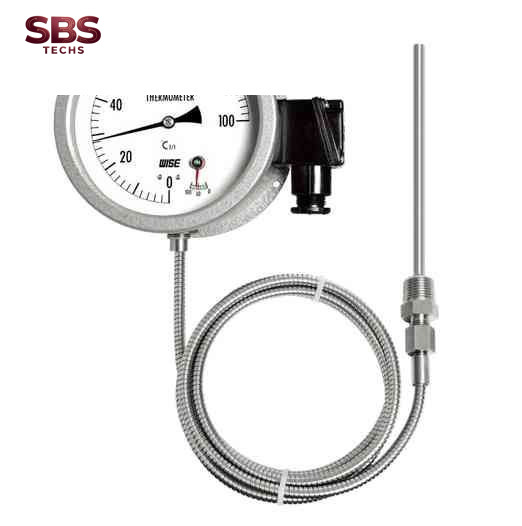

T953, T990, T930, T931, T941, T942 Wise Control- đồng hồ đo nhiệt độ Wise

Đồng hồ đo nhiệt độ T953, T990, T930, T931, T941, T942 Wise Control Việt Nam, đại lý Wise Control Việt Nam, hãng wise control tại Việt Nam

Chi tiết sản phẩm

Đồng hồ đo nhiệt độ Wise Control Việt Nam

Nominal diameter	150 mm
Repeatability	±1.0 % of adjustable range
Accuracy	±2.0 % of full scale
Measuring system	Organic gas : 0 ~ 200 °C (Only T932) Inert gas : -200 ~ 700 °C
Working range	Maximum scale value

Standard features

Location of stem and mounting	Bottom connection, surface, case mounting
Case	Silver gray finished aluminium
Cover	Silver gray finished aluminium
Window	Instrument glass
Switch type	Micro switch snap action
Switch form	One SPDT for single setpoint Two SPDT for dual setpoint
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS
Contacts	AC 125 V / 250 V, 7 A AC 125 V / 250 V, 7 A for resistance load AC 125 V / 250 V, 7 A for inductive load
Conduit connection	½”, ¾” PF
Stem	8.0, 10.0 and 12.0 mm 316SS and 316L SS
Stem, process connection	⅜”, ½”, ¾” PT, NPT and PF
Option	Special accuracy : ±1.0 % of full scale
