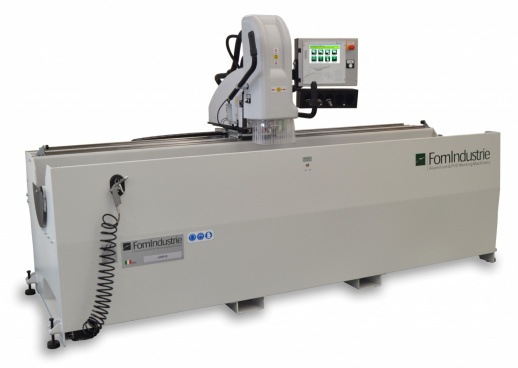

Numerically controlled copy router with 2 controlled axes (X,Y) and worktable with pneumatic positioning -90°/0°/+90°

Standard accessories of the machining centre:

• Three-phase spindle motor 1,85kW RPM Regulation by numerical control inverter (1000/12000 rpm) – Spindle with ISO 30 cone.

• Manual tool magazine with n° 5 cone holders on the head

• Pneumatic rotation of the worktable -90° to 0 to +90°

• Hung consolle and “Tex Computer” electronic equipment with graphic display for a more intuitive and simple use of program. It is possible to program a machining sequence.

• N° 4 pneumatic vices with manual positioning and double pressure with safety valves

• MANUALLY ADJUSTABLE Profile reference stops on right and left of worktable

• Microdrop lubrication with pure oil

• Chip bin

• “Tex Computer” Management equipment
