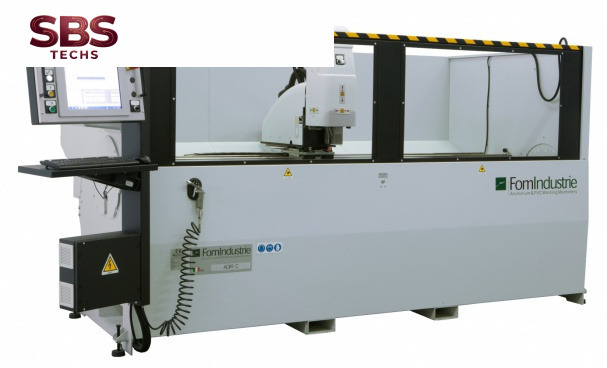

CNC Machining Centre with 3 controlled axes and worktable with pneumatic positioning -90°/0°/+90°

Standard accessories of the machining centre:

• Servo-ventilated three-phase spindle motor 3kW Regulation of spindle rpm by numerical control – inverter (1000/12000 rpm)

• 6 position tool-holder for manual change with pneumatic locking (ISO 30)

• Pneumatic rotation of the worktable -90° to 0 to +90°

• Adjustable console with PC, Touch screen 15” keyboard and mouse

• N° 4 pneumatic vices with manual positioning and double pressure with safety valves

• MANUALLY ADJUSTABLE Profile reference stops on right and left of worktable

• Microdrop lubrication with pure oil

• Chip bin

• Perimetric guard on 3 sides and front raceding guard

• Electronic equipment “Tex Computer”

• Software licence for FOMCAM program

• FOMCAM training course (FOM premises)
