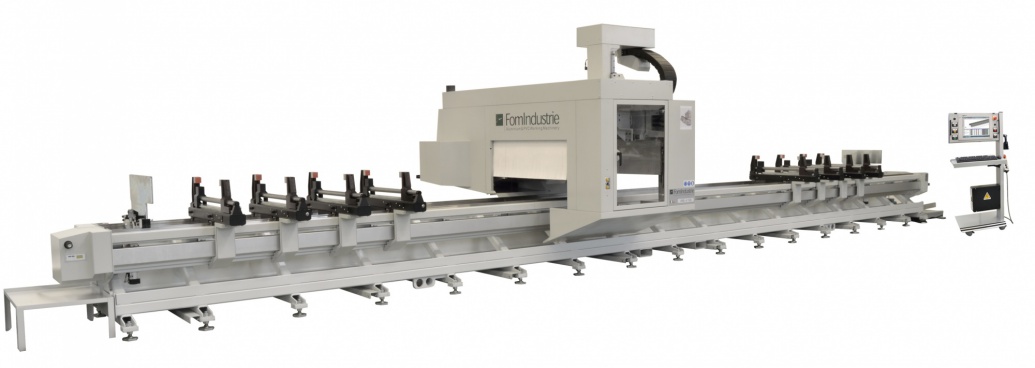

CNC Machining centre with 4 controlled axes

Available in 7,5 – 10 – 15 – 18 meters versions

Standard accessories of the machining centre:

• Electrospindle FOM 12 kW 19.000 rpm (HSK 63) with liquid cooling system

• 5 – position tool magazine; availailable angular system with Ø 400 mm. blade (HSK 63)

• Pneumatic vices with NC indipendent positioning

• Left sliding pneumatic stop

• Head guard – partial guard

• Microdrop lubrication with pure oil

• Automatic lubrication for all in motion parts

• Machine handling kit

• Electronic device “Tex Computer”

• Mobile control console with PC, 17” touch screen monitor, mouse and keyboard

• FSTCAM software 3/4 axes version

• Software licence for tapping cycle

• FSTCAM training course (FOM premises)
