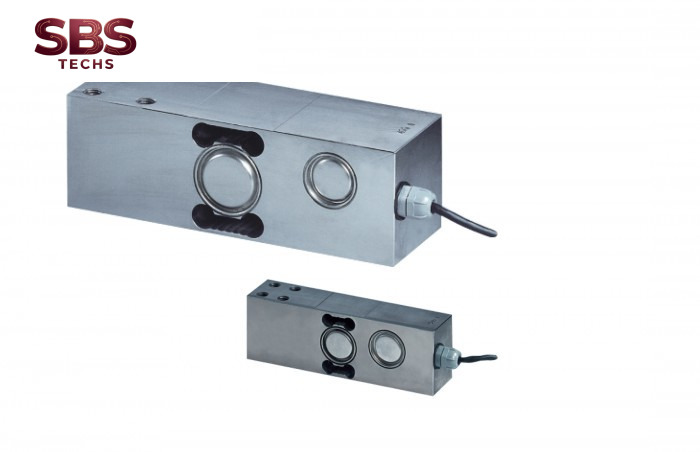

- Designed for the construction of scales in the medical equipment and batching systems
- ATEX (option)
- 3000 Divisions OIML R60 approved
- Made of stainless steel
- IP68 Protection (EN 60529)
- Maximum size of the plate 600 x 600 mm (800 x 800 for capacity 250 and 400 kg)
| Electrical Connection | |
| +Excitation | Green |
| -Excitation | Black |
| +Signal | Red |
| -Signal | White |
| +Sense | Blue |
| -Sense | Yellow |
| Shield | Cable Shield |
TECHNICAL CHARACTERISTICS 190
| Rated load (R.L.): | 15, 20, 30, 50, 75, 120, 200, 250, 350, 400 Kg |
| Combined Error: | < ±0.017% of R.O. |
| Repeatability: | < ±0.010% of R.O. |
| Creep (20 minutes): | < ±0.016% of R.L. |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | 200% of R.L. |
| Recommended input: | 5÷15 Vdc/Vac |
| Input resistance: | 400 ± 20 Ohm |
| Output resistance: | 350 ± 3 Ohm |
| Insulation resistance: | > 5000 M Ohm |
| Rated output (R.O.): | 2 ± 10% mV/V |
| Zero balance: | < ±2% of R.O. |
| Temperature range: | -20 ÷ +50 °C |
| Compensated Temperature Range: | -10 ÷ +40 °C |
| Temperature effect on zero balance: | < ±0.01% R.O./5°K |
| Temperature effect on output: | < ±0.006% on output/5°K |
| Max load deflection: | 0.3÷0.5 mm |
| Accuracy class: | 3000 n.OIML |
| Degree of protection: | IP68 |
| Electrical connection: | 4 conductors shielded cable; length 3 m |
| Material: | Stainless steel |
Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
