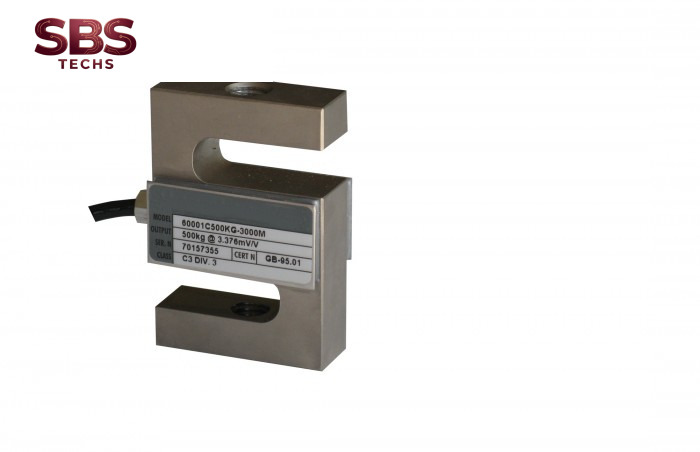

- Designed for industrial weighing of small tanks and hoppers
- Excellent linearity and precision
- 300% overload capability
- Made of nickel plated steel
- Watertight protection for use in harsh environments
TECHNICAL CHARACTERISTICS 60001
| Rated load (R.L.): | 50,100, 150, 250, 500 kg; 1, 2.5, 5, 10 t |
| Combined error: | < ±0.02% of R.O. |
| Repeatability: | < ±0.01% of R.O./5°K |
| Creep (30 minutes): | ±0.017% of R.L. |
| Safe overload: | 150% of R.L. |
| Maximum overload: | 300 % of R.L. |
| Recommended input: | 5÷15 Vdc/Vac |
| Input resistance: | 343÷450 Ohm |
| Output resistance: | 349÷355 Ohm |
| Insulation resistance: | > 1000 M Ohm |
| Rated output (R.O.): | 3 mV/V |
| Zero balance: | < ±1% of R.O. |
| Temperature range: | -18 ÷ +65°C |
| Compensated temperature range: | -10 ÷ +40°C |
| Temperature effect on zero balance: | < ±0.0010% of R.O./°F |
| Temperature effect on output: | < ±0.0007% on output/°F |
| Max load deflection: | 0.10÷0.15 mm |
| Degree of protection: | IP67 |
| Material: | Nickel steel |
| Electrical connection: | 4 conductors shielded cable; length 6 m |
| Precision class: | 3000 n. OIML only for carrying capacity from 50 to 2500kg |
| Electrical Connection | |
|---|---|
| +Excitation | Red |
| -Excitation | Black |
| +Signal | Green |
| -Signal | White |
| Shield | Cable shield |
| CAPACITY | A | B | C | D | E |
|---|---|---|---|---|---|
| 50-100 kg | M8x1.25-6H | 16.5 | 12.7 | 50.8 | 63.5 |
| 250-1 t | M12x1.75-6H | 25.4 | 19.1 | 50.8 | 76 |
| 2.5 t | M20x1.5-6H | 31.8 | 25.4 | 76.2 | 108 |
| 5 t | M20x1.5-6H | 31.8 | 25.4 | 88.9 | 120.7 |
| 10 t | M20x2.0-6H | 57.2 | 50.8 | 127.0 | 177.8 |
Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
