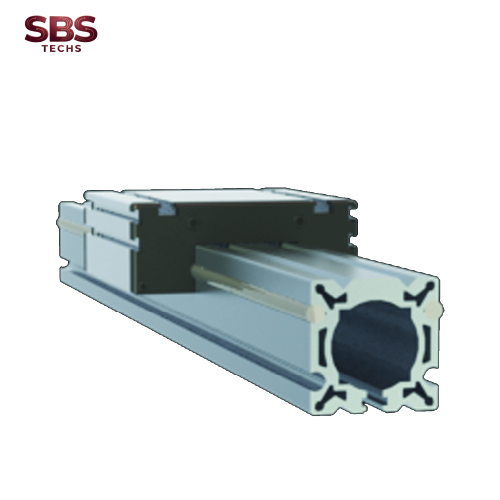

Non-Driven Modular Linear Actuators nook industries

Non-Driven Modular Linear Actuators are specifically designed to be used in parallel with a variety of the driven modular actuators. All non-driven modular actuators are designed to provide support for a given load without causing tension or binding with another driven actuator.

Non-Driven Modular Linear Actuators should not be used if the parallel placement is greater than 500mm.

External Roller Bearing Guided

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELR 30	30	–	60	60	5	6	7	–	90	90	10	13	14
ELR 40	40	–	700	650	20	18	25	–	1200	900	25	32	35
ELR 60	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ELR 60S	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ELR 80	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ELR 80 S	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ELR 100	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ELR 125	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELR 30 WAC	30	–	60	60	5	6	7	–	90	90	10	13	14
ELR 40 WAC	40	–	700	650	20	18	25	–	1200	900	25	32	35
ELR 60 WAC	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ELR 60S WAC	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ELR 80 WAC	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ELR 80 S WAC	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ELR 100 WAC	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ELR 125 WAC	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELRZ 30	30	–	60	60	5	6	7	–	90	90	10	13	14
ELRZ 40	40	–	700	650	20	18	25	–	1200	900	25	32	35
ELRZ 60	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ELRZ 60S	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ELRZ 80	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ELRZ 80S	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ELRZ 100	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ELRZ 125	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ELRZ 30 WAC	30	–	60	60	5	6	7	–	90	90	10	13	14
ELRZ 40 WAC	40	–	700	650	20	18	25	–	1200	900	25	32	35
ELRZ 60 WAC	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ELRZ 60S WAC	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ELRZ 80 WAC	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ELRZ 80S WAC	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ELRZ 100 WAC	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ELRZ 125 WAC	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ER 30	30	–	60	60	5	6	7	–	90	90	10	13	14
ER 40	40	–	700	650	20	18	25	–	1200	900	25	32	35
ER 60	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ER 60S	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ER 80	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ER 80S	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ER 100	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ER 125	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
ER 30 WAC	30	–	60	60	5	6	7	–	90	90	10	13	14
ER 40 WAC	40	–	700	650	20	18	25	–	1200	900	25	32	35
ER 60 WAC	60	–	2000	1100	43	70	100	–	3000	1700	67	90	120
ER 60S WAC	60S	–	3100	1600	65	140	170	–	4100	2160	88	190	230
ER 80 WAC	80	–	2000	1100	55	80	120	–	3000	1700	90	110	150
ER 80S WAC	80S	–	2600	1800	140	230	220	–	4600	3000	170	270	300
ER 100 WAC	100	–	6500	2200	230	270	500	–	8000	3600	300	400	750
ER 125 WAC	125	–	9000	4500	1450	600	1150	–	12000	6000	600	750	1350

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]

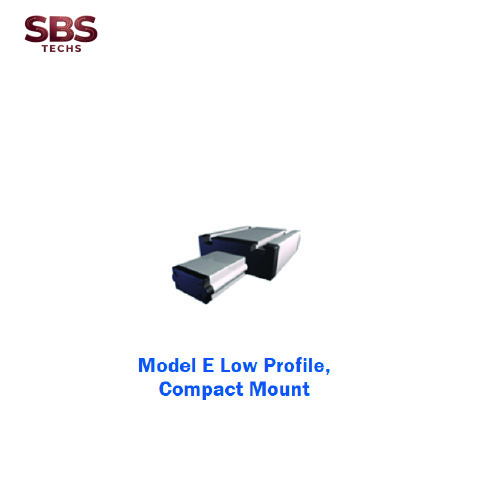

E 40	40	4	–	700	650	20	18	25	–	1200	900	25	32	35
E 60	60	5	–	2000	1100	43	70	100	–	3000	1700	67	90	120
E 60S	60S	5	–	3100	1600	65	140	170	–	4100	2160	88	190	230
E 80	80	6	–	2000	1100	55	80	120	–	3000	1700	90	110	150
E 80S	80S	8	–	3600	1800	140	230	220	–	4600	3000	170	270	3000

Internal Roller Bearing Guided

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]

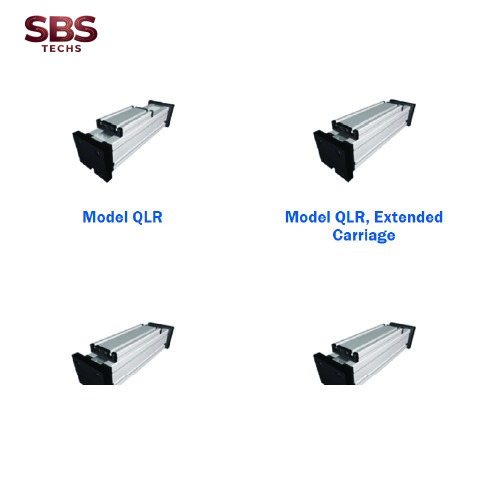

QLR 60	60	4	–	500	650	10	50	30	–	600	900	15	60	40
QLR 80	80	6	–	1240	1200	40	80	60	–	1600	1500	50	100	75
QLR 100	100	7	–	1500	1700	60	110	90	–	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLR 60 Extended Carriage	60	4	–	500	650	10	50	30	–	600	900	15	60	40
QLR 80 Extended Carriage	80	6	–	1240	1200	40	80	60	–	1600	1500	50	100	75
QLR 100 Extended Carriage	100	7	–	1500	1700	60	110	90	–	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLR 60 Extended Carriage 4 Split Rollers	60	4	–	500	650	10	50	30	–	600	900	15	60	40
QLR 80 Extended Carriage 4 Split Rollers	80	6	–	1240	1200	40	80	60	–	1600	1500	50	100	75
QLR 100 Extended Carriage 4 Split Rollers	100	7	–	1500	1700	60	110	90	–	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
QLR 60 Extended Carriage 6 Split Rollers	60	4	–	500	650	10	50	30	–	600	900	15	60	40
QLR 80 Extended Carriage 6 Split Rollers	80	6	–	1240	1200	40	80	60	–	1600	1500	50	100	75
QLR 100 Extended Carriage 6 Split Rollers	100	7	–	1500	1700	60	110	90	–	1900	2100	85	140	110

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLR 120	120	4	–	900	1000	125	120	90	–	1100	1250	150	140	100
DLR 160	160	6	–	2000	2800	320	300	150	–	3000	3500	400	360	180
DLR 200	200	8	–	3100	4400	510	480	275	–	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLR 120 Extended Carriage	120	4	–	900	1000	125	120	90	–	1100	1250	150	140	100
DLR 160 Extended Carriage	160	6	–	2000	2800	320	300	150	–	3000	3500	400	360	180
DLR 200 Extended Carriage	200	8	–	3100	4400	510	480	275	–	4400	4900	600	560	310

Product	Size	Speed Maximum [m/s]	Fx dynamic [N]	Fy dynamic [N]	Fz dynamic [N]	Mx dynamic [Nm]	My dynamic [Nm]	Mz dynamic [Nm]	Fx static [N]	Fy static [N]	Fz static [N]	Mx static [Nm]	My static [Nm]	Mz static [Nm]
DLR 120 Extended Carriage 6 Split Rollers	120	4	–	900	1000	125	120	90	–	1100	1250	150	140	100
DLR 160 Extended Carriage 6 Split Rollers	160	6	–	2000	2800	320	300	150	–	3000	3500	400	360	180
DLR 200 Extended Carriage 6 Split Rollers	200	8	–	3100	4400	510	480	275	–	4400	4900	600	560	310

Internal Profile Rail Guided

Product	Size	Speed Maximum [m/s]	Fx [N] 10000 km	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fx [N] 5000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSR 60	60	5	–	990	2500	23	73	70	–	1410	3520	33	104	100
QSR 80	80	5	–	2550	6050	75	222	210	–	3570	8500	107	310	296
QSR 100	100	5	–	2900	7270	101	311	292	–	7080	10300	142	439	412

Product	Size	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSSR 60	60	990	2500	23	143	125	1410	3520	33	190	176
QSSR 80	80	2550	6050	75	430	392	3570	8500	107	604	550
QSSR 100	100	2900	7270	101	597	532	4080	10300	142	838	745

Product	Size	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
QSSR 60 Extended Carriage	60	990	2500	23	143	125	1410	3520	33	190	176
QSSR 80 Extended Carriage	80	2550	6050	75	430	392	3570	8500	107	604	550
QSSR 100 Extended Carriage	100	2900	7270	101	597	532	4080	10300	142	838	745

Product	Size	Speed Maximum [m/s]	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km

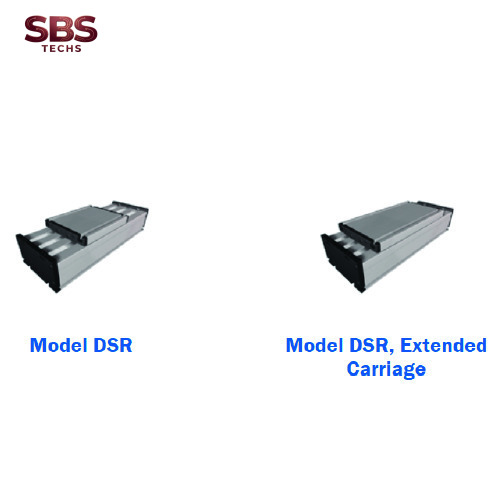

DSR 120	120	5	1405	1650	64	77	76	1776	2090	81	97	96
DSR 160	160	5	1775	4189	224	225	238	2236	5278	282	283	300
DSR 200	200	5	4092	8977	597	646	684	5155	11311	752	813	862

Product	Size	Speed Maximum [m/s]	Fy [N] 10000 km	Fz [N] 10000 km	Mx [Nm] 10000 km	My [Nm] 10000 km	Mz [Nm] 10000 km	Fy [N] 5000 km	Fz [N] 5000 km	Mx [Nm] 5000 km	My [Nm] 5000 km	Mz [Nm] 5000 km
DSR 120 Extended Carriage	120	5	1405	1650	64	77	76	1776	2090	81	97	96
DSR 160 Extended Carriage	160	5	1775	4189	224	225	238	2236	5278	282	283	300
DSR 200 Extended Carriage	200	5	4092	8977	597	646	684	5155	11311	752	813	862
