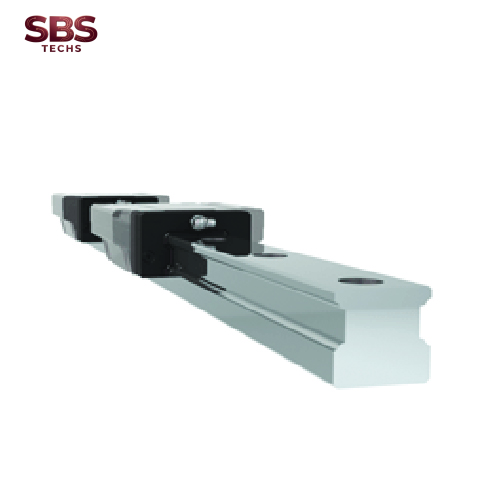

Profile Rail Systems and Runner Blocks nook industries

Thiết kế nhỏ gọn của các khối ray Nook cung cấp tính linh hoạt thiết kế lớn hơn và nhiều phương pháp lắp đặt so với các hệ thống dẫn hướng tuyến tính khác. Các ống giữ và tuần hoàn đặc biệt ngăn không cho bi thoát ra khi khối ray được tháo ra khỏi ray.

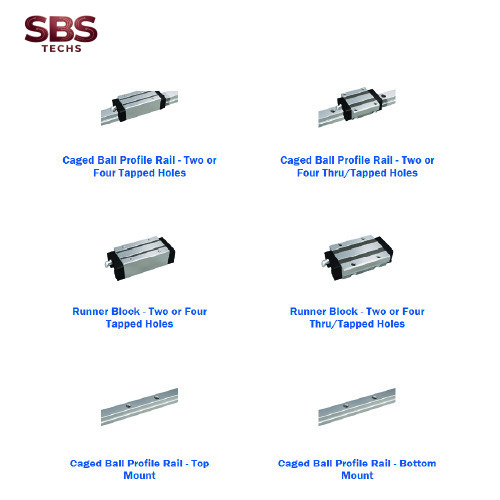

Automation Series

Product	Size [mm]
NARCU 15	15
NARCU 20	20
NARCU 25	25
NARCU 30	30
NARCU 35	35
NARCU 45	45

Product	Size [mm]
NARC 15	15
NARC 20	20
NARC 25	25
NARC 30	30
NARC 35	35
NARC 45	45

Product	Size [mm]	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]
NARC 15 FS	15	50.0	50.0	100.0
NARC 20 FS	20	100.0	80.0	205.0
NARC 25 FS	25	160.0	160.0	350.0
NARC 30 FS	30	230.0	230.0	520.0
NARC 15 FN	15	105.0	105.0	140.0
NARC 20 FN	20	230.0	230.0	325.0
NARC 25 FN	25	385.0	385.0	540.0
NARC 30 FN	30	565.0	565.0	845.0
NARC 35 FN	35	1080.0	1080.0	1700.0

Product	Size [mm]	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]
NARC 15 MS	15	50.0	50.0	100.0
NARC 20 MS	20	100.0	100.0	205.0
NARC 25 MS	25	160.0	160.0	350.0
NARC 30 MS	30	230.0	230.0	520.0
NARC 15 MN	15	105.0	105.0	140.0
NARC 20 MN	20	230.0	230.0	325.0
NARC 25 MN	25	385.0	385.0	540.0
NARC 30 MN	30	565.0	565.0	845.0
NARC 35 MN	35	1080.0	1080.0	1700.0
NARC 45 MN	45	1910.0	1910.0	3200.0
NARC 30 ML	30	950.0	950.0	1105.0
NARC 35 ML	35	1755.0	1755.0	2185.0
NARC 45 ML	45	3460.0	3460.0	4430.0

Product	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]	Size [mm]
NARC 15 FS Assembly	50.0	50.0	100.0	15
NARC 20 FS Assembly	100.0	80.0	205.0	20
NARC 25 FS Assembly	160.0	160.0	350.0	25
NARC 30 FS Assembly	230.0	230.0	520.0	30
NARC 15 FN Assembly	105.0	105.0	140.0	15
NARC 20 FN Assembly	230.0	230.0	325.0	20
NARC 25 FN Assembly	385.0	385.0	540.0	25
NARC 30 FN Assembly	565.0	565.0	845.0	30
NARC 35 FN Assembly	1080.0	1080.0	1700.0	35

Product	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]	Size [mm]
NARC 15 MS Assembly	50.0	50.0	100.0	15
NARC 20 MS Assembly	100.0	100.0	205.0	20
NARC 25 MS Assembly	160.0	160.0	350.0	25
NARC 30 MS Assembly	230.0	230.0	520.0	30
NARC 15 MN Assembly	105.0	105.0	140.0	15
NARC 20 MN Assembly	230.0	230.0	325.0	20
NARC 25 MN Assembly	385.0	385.0	540.0	25
NARC 30 MN Assembly	565.0	565.0	845.0	30
NARC 35 MN Assembly	1080.0	1080.0	1700.0	35
NARC 45 MN Assembly	1910.0	1910.0	3200.0	45
NARC 30 ML Assembly	950.0	950.0	1105.0	30
NARC 35 ML Assembly	1755.0	1755.0	2185.0	35
NARC 45 ML Assembly	3460.0	3460.0	4430.0	45

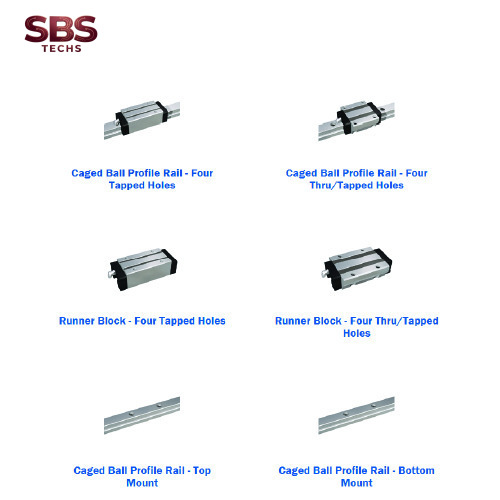

Heavy Load Series

Product	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]	Size [mm]
NHRC 15 MN Assembly	105.0	105.0	140.0	15
NHRC 20 MN Assembly	230.0	230.0	325.0	20
NHRC 25 MN Assembly	385.0	385.0	540.0	25
NHRC 30 MN Assembly	565.0	565.0	845.0	30
NHRC 35 MN Assembly	1080.0	1080.0	1700.0	35
NHRC 45 MN Assembly	1910.0	1910.0	3200.0	45
NHRC 20 ML Assembly	390.0	390.0	415.0	20
NHRC 25 ML Assembly	710.0	710.0	735.0	25
NHRC 30 ML Assembly	950.0	950.0	1105.0	30
NHRC 35 ML Assembly	1755.0	1755.0	2185.0	35
NHRC 45 ML Assembly	3460.0	3460.0	4430.0	45

Product	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]	Size [mm]
NHRC 15 FN Assembly	105.0	105.0	140.0	15
NHRC 20 FN Assembly	230.0	230.0	325.0	20
NHRC 25 FN Assembly	385.0	385.0	540.0	25
NHRC 30 FN Assembly	565.0	565.0	845.0	30
NHRC 35 FN Assembly	1080.0	1080.0	1700.0	35
NHRC 45 FN Assembly	1910.0	1910.0	3200.0	45
NHRC 20 FL Assembly	390.0	390.0	415.0	20
NHRC 25 FL Assembly	710.0	710.0	735.0	25
NHRC 30 FL Assembly	950.0	950.0	1105.0	30
NHRC 35 FL Assembly	1755.0	1755.0	2185.0	35
NHRC 45 FL Assembly	3460.0	3460.0	4430.0	45

Product	Size [mm]	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]
NHRC 15 MN	15	105.0	105.0	140.0
NHRC 20 MN	20	230.0	230.0	325.0
NHRC 25 MN	25	385.0	385.0	540.0
NHRC 30 MN	30	565.0	565.0	845.0
NHRC 35 MN	35	1080.0	1080.0	1700.0
NHRC 45 MN	45	1910.0	1910.0	3200.0
NHRC 20 ML	20	390.0	390.0	415.0
NHRC 25 ML	25	710.0	710.0	735.0
NHRC 30 ML	30	950.0	950.0	1105.0
NHRC 35 ML	35	1755.0	1755.0	2185.0
NHRC 45 ML	45	3460.0	3460.0	4430.0

Product	Size [mm]	Static Moment Ratings-Ma [N-m]	Static Moment Ratings-Mb [N-m]	Static Moment Ratings-Mc [N-m]
NHRC 15 FN	15	105.0	105.0	140.0
NHRC 20 FN	20	230.0	230.0	325.0
NHRC 25 FN	25	385.0	385.0	540.0
NHRC 30 FN	30	565.0	565.0	845.0
NHRC 35 FN	35	1080.0	1080.0	1700.0
NHRC 45 FN	45	1910.0	1910.0	3200.0
NHRC 20 FL	20	390.0	390.0	415.0
NHRC 25 FL	25	710.0	710.0	735.0
NHRC 30 FL	30	950.0	950.0	1105.0
NHRC 35 FL	35	1755.0	1755.0	2185.0
NHRC 45 FL	45	3460.0	3460.0	4430.0
