- Protection degree: IP65-67
- Capacity: 1000 ÷ 400.000 kg
- Material: stainless steel 17.4 PH
Suitable for:
- tension measuring
- rolling mill stands
- construction safety
- designed for use in polymer processing in applications where it is required to measure the reaction force produced by the extru-sion pressure

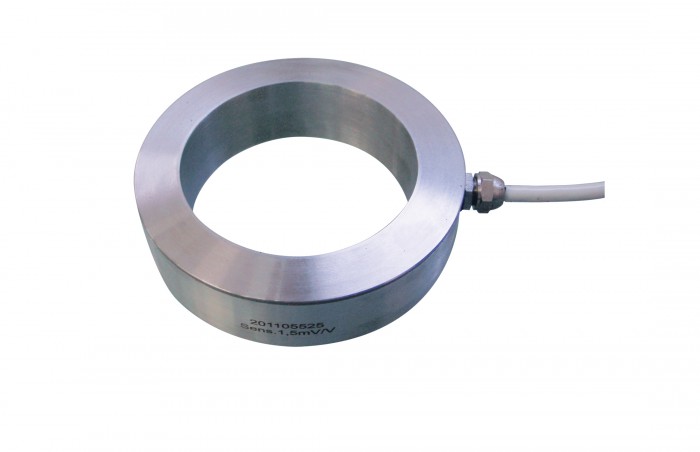

TECHNICAL CHARACTERISTICS PSRT
| Capacity: | 1000 ÷ 400.000 kg |
| Electrical excitations: | 2÷15 Vcc/ca |
| Nominal sensitivity: | 1,5 – 2 mV/V |
| Zero temperature coeff: | ± 0,005% F.S/°C |
| Span temperature coeff.: | ± 0,005% F.S/°C |
| Combined error: | ± 0,15% F.S. |
| Repeatability: | ± 0,02 F.S. |
| Nominal load creep (20’): | ± 0,02 F.S. |
| Input resistence: | 700 ± 20 Ohms |
| Output resistence: | 700 ± 5 Ohms |
| Insulation: | > 5000 M Ohms |
| Safe overload: | 150 % F.S. |
| Ultimate overload: | > 300 % F.S. |
| Compensated temperature range: | -10 ÷ + 50 °C |
| Operating temperature range: | -20 ÷ + 70 °C |
| Protection degree: | IP65-67 |
| Material: | 17.4 PH Stainless Steel |
Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
