- Low capacity, high accuracy at a competitive price
- Capacities from 10 to 100 Kg
- IP64 Protection
- O.I.M.L. R60 C3 approved
- Platform maximum size of 400 x 400 mm
- Particularly suitable for the construction of electronic industrial scales, counting and packaging machines
| Electrical Connection | |
| +Excitation | Red |
| -Excitation | White |
| +Signal | Green |
| -Signal | Blue |
| Shield | Cable shield |
Error is within 0.01% SN applied with 1/2 of capacity at the position of 100mm of eccentricity | |
The center of loading plate and the center of the load cell should be the same position | |

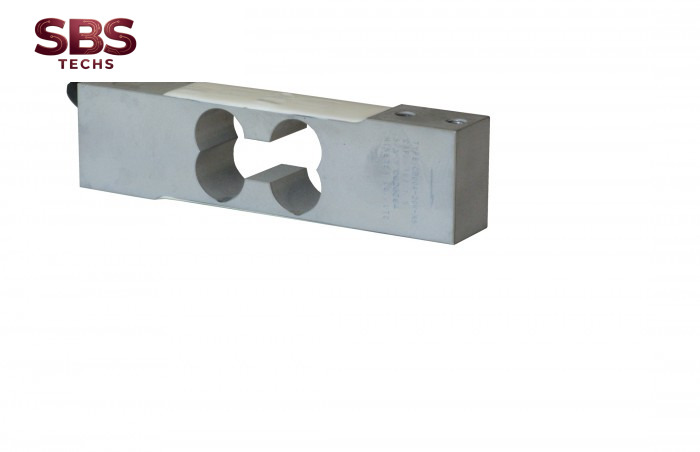

TECHNICAL CHARACTERISTICS CB004
| Rated load (RL): | 10, 15, 20, 25, 30, 35, 45, 60, 100 Kg |
| Linearity: | < ±0.0125% of RO |
| Repeatability: | < ±0.02% of R.O. |
| Creep (20 minutes): | < ±0.02% of R.L. |
| Safe overload: | 150% of R.L. |
| Ultimate overload: | 200% of R.L. |
| Recommended input: | 5÷12 Vdc/Vac |
| Maximum excitation: | 20 Vdc/Vac |
| Input resistance: | 420 +30 -20 Ohm |
| Output resistance: | 350 ± 5 Ohm |
| Insulation resistance: | > 2000 M Ohm |
| Rated output (R.O.): | 2 ±0.02% mV/V |
| Zero balance: | < ±0.1% of R.O. |
| Temperature range: | -10 ÷ +50 °C |
| Compensated temperature range: | -10 ÷ +50 °C |
| Temperature effect on zero balance: | < ±0.0013% R.O./°C |
| Temperature effect on output: | < ±0.0010% sull’uscita/°C |
| Degree of protection: | IP64 |
| Material: | Alluminum alloy |
| Electrical connection: | 4 conductors shielded cable; length 4 m |
| Precision class: | 3000 n. OIML |
Accessories are not to be considered included in the price of each product.
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
All the above is purely illustrative and not to be understood demanding towards Pavone Sistemi
