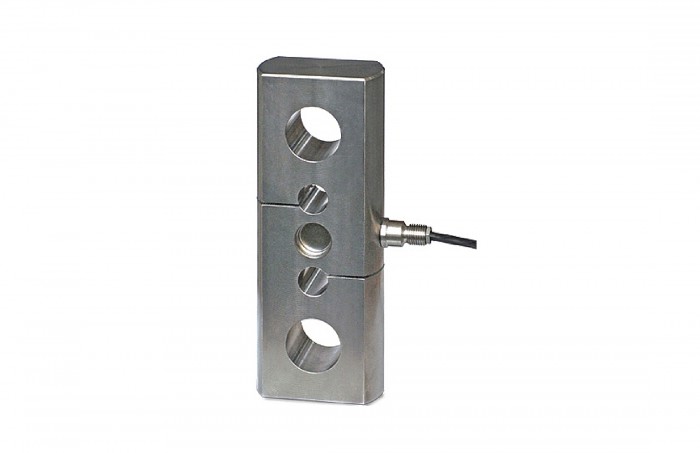

Load Cells PSTR

Suitable for tensile loads, for dynamometric measures and as load limiter for lifting combined with our instrumentation
17-4PH stainless steel construction
Holes for standard shackles
Combined error +/- 0.03%
IP68 degree of protection

Capacity:	5000, 10000, 20000 kg
Rated Output:	2 mV/V +/-0.1%
Temperature effect on zero	0.005% /°C
Temperature effect on span:	0.003% /°C
Compensated temperature range:	-10°C / +50°C
Operating temperature range:	-20°C / +70°C
Creep (30 min.):	0.03%
Max supply voltage without damage:	15 Volt
Input resistance:	350 Ohms +/-5
Output resistance:	350 Ohms +/-5
Zero balance:	+/- 1%
Insulation resistance:	>5000 Mohms
Safe Overload (% Full Scale)	150% FS
Ultimate Overload (% Full Scale):	>300%
Deflection at nominal load:	0.3mm
Cable length:	10m
